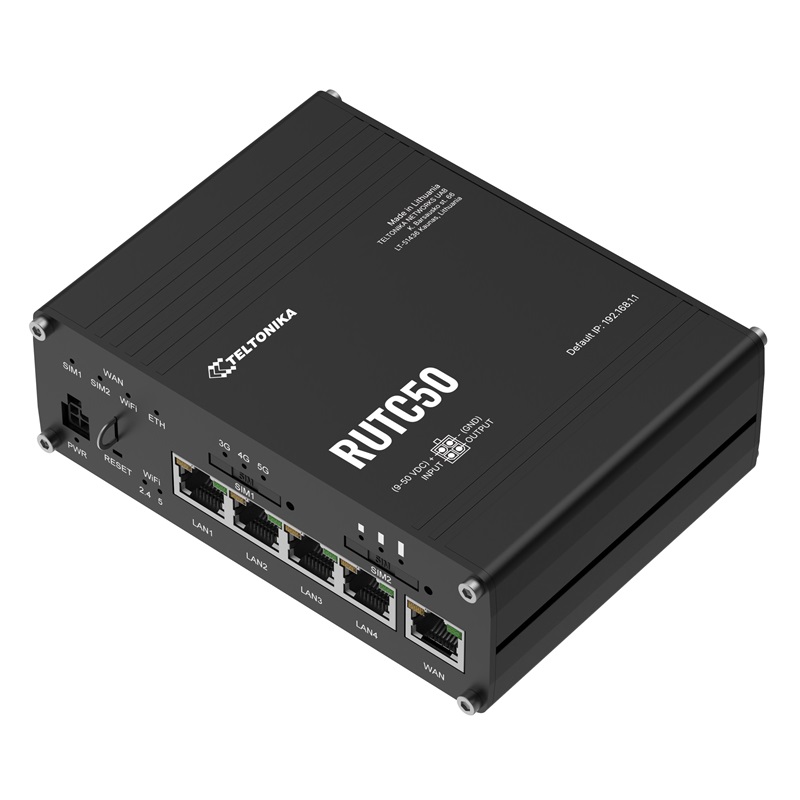

Teltonika High Speed RUTC50 Dual SIM Cat 20 Cellular 4G/LTE/5G Gigabit Wi-Fi 6 Broadband Router with I/O and GPS
The RUTC50 is a High Speed Cat 20 5G router featuring dual-band Wi-Fi 6 technology with multi-user MIMO, ensuring ultra-high cellular speeds of up to 3.4 Gbps. This 5G router is also equipped with dual SIM with auto-failover, five Gigabit Ethernet ports, and GNSS for precise location tracking. The RUTC50 supports both SA and NSA 5G architectures and is backward compatible with 4G (Cat 20) and 3G, ensuring robust and reliable performance.
The RUTC50 is a High Speed Cat 20 5G router featuring dual-band Wi-Fi 6 technology with multi-user MIMO, ensuring ultra-high cellular speeds of up to 3.4 Gbps. This 5G router is also equipped with dual SIM with auto-failover, five Gigabit Ethernet ports, and GNSS for precise location tracking. The RUTC50 supports both SA and NSA 5G architectures and is backward compatible with 4G (Cat 20) and 3G, ensuring robust and reliable performance.
Features
- 5G Ultra-high cellular speeds of up to 3.4 Gbps
- Wi-Fi 6 Dual-band multi-user MIMO wireless capabilities
- Increased processing capacity for multi-user and edge computing applications
- Dual SIM with auto-failover, backup WAN, and other switching scenarios
- Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53 CPU!
| Details | |
|---|---|
| Product code | RUTC50200300 |
| CPU | Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53 |
| RAM | 512MB DDR3 |
| FLASH storage | 16MB serial NOR flash, 512MB serial NAND flash |
| Supported Frequencies | 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41, B42, B43; 3G: B1, B5, B8 |
| Mobile module | 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 210Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
| 3GPP Release | Release 16 |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| SIM idle protection service | When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Framed routing | Framed routing: support an IP network behind 5G UE |
| Wireless mode | 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO) |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 4 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi, 2 x WAN status |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
| Power | 1 x 4-pin power connector |
| Antennas | 4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Monitoring & Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| VPN | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| I/O Input | 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high |
| I/O Output | 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| Power Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC (Available from: HW revision 0003, Batch number 007) |
| Power consumption | Idle: < 4.5 W, Max: < 13.5 W |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 130.4 x 42.6 x 103.4 mm |
| Weight | 452 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Details | |
|---|---|
| Included | RUTC50 Router, 24 W PSU, 4 x 5 G Mobile antennas (swivel, SMA male), 3 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
