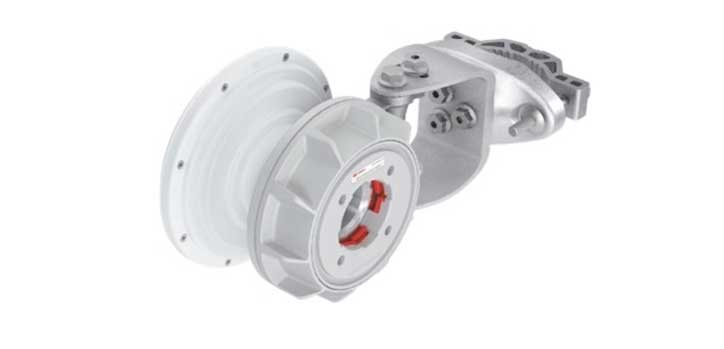

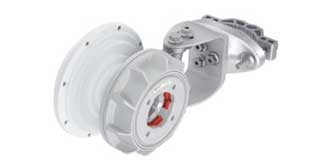

RF Elements 5GHz Gen2 Symmetrical Horn 70 Degree Sector Antenna

$265.00 +GST

8 In Stock

SKU: HG3-TP-S70

Quantity	Price
1 - 4	$265.00
5 - 9	$258.38
10 - 19	$251.75
20+	$238.50

Data Sheet

RF Elements 5GHz Gen2 Symmetrical Horn 70 Degree Sector Antenna

Warranty

Back to: Horn Antennas

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

RF Elements 5GHz Gen2 Symmetrical Horn 70 Degree Sector Antenna HG3-TP-S70. Symmetrical Horn Antennas have a symmetrical beam pattern with no sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location.

Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless and revolutionary easy to use.

Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. The radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes

Features

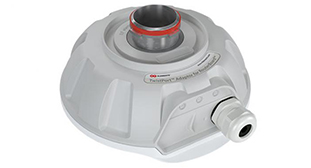

Compatible with RF Elements TwistPort Adaptors for many makes of Radio
Unique Symmetrical Beam Performance
No Side Lobes
Wideband Performance
Excellent Gain Across Spectrum
Coverage Without Null
Excellent Co-Location performance
Ultimate Spectrum Efficiency For Everyone
Compact Size

Details
Manufacturer's Product Code	HG3-TP-S70
Frequency Range	5180 - 6400 MHz
Gain	11.5dBi
Polarisation	Dual Linear H + V
Vertical Beamwidth	70deg
Horizontal Beamwidth	70deg
Front-to-Back Ratio	30 dB
Connector Type	TwistPort - Quick Locking Waveguide Port
Enviromental	IP55
Flame Rating	UL 94 HB
Wind Survival	160 km/hour
Wind Loading	22 N at 160 km/hour
Mechanical Tilt	± 25°
