cnMatrix Enterprise Switches

Powerful Cloud Managed Switching

Cambium Networks cnMatrix is a fully managed, enterprise-grade switching platform offering high-performance, Ethernet switching solutions. The cnMatrix series provides full Layer 2 and Layer 3 capabilities with enhanced access security and power savings from a fanless operation. The product line also offers major flexibility with four 10Gbps (SFP+) uplinks on the 28 port models and two 1Gbps (SFP) uplink ports on the 10 port models.

cnMatrix

Agile Network Management

A proven leader in providing global communications solutions, Cambium Networks simplifies network operations. Our Cloud Managed Intelligent Edge Enterprise Access Solution makes the network resilient, easy to operate, high performance, and agile; providing cost effective wired/wireless connectivity for network operators. The entire purpose-built end-to-end network is managed from a “bird’s eye view” by the free cnMaestro management system.

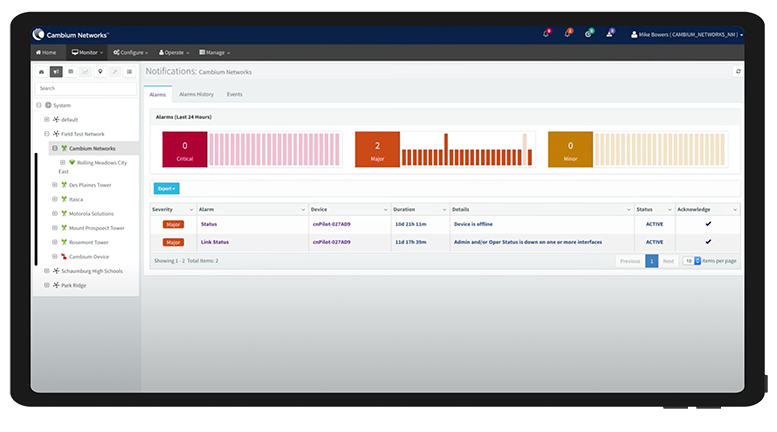

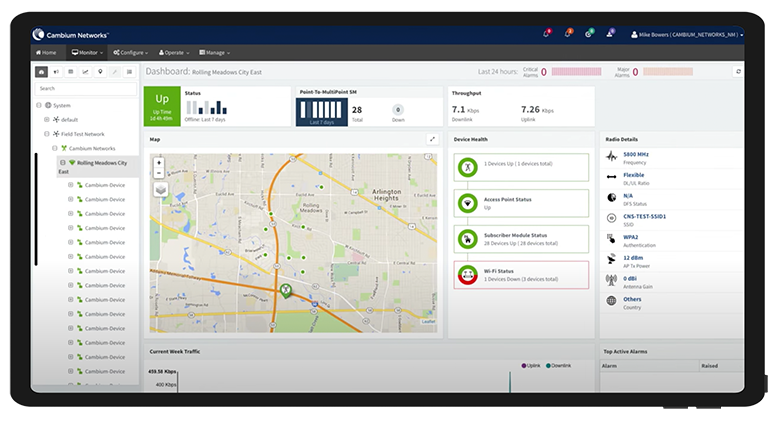

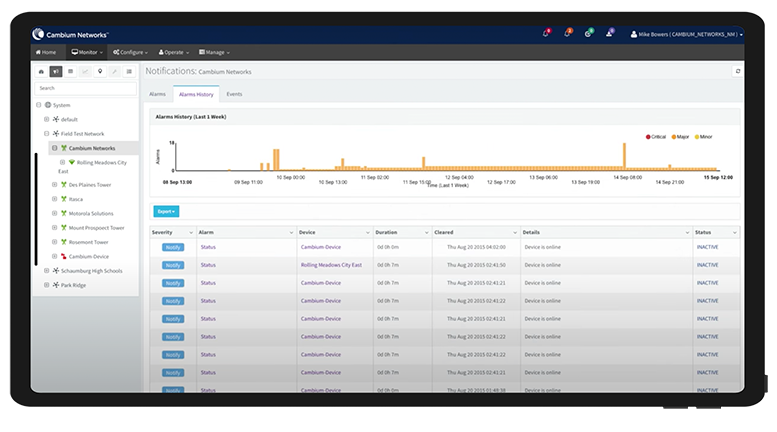

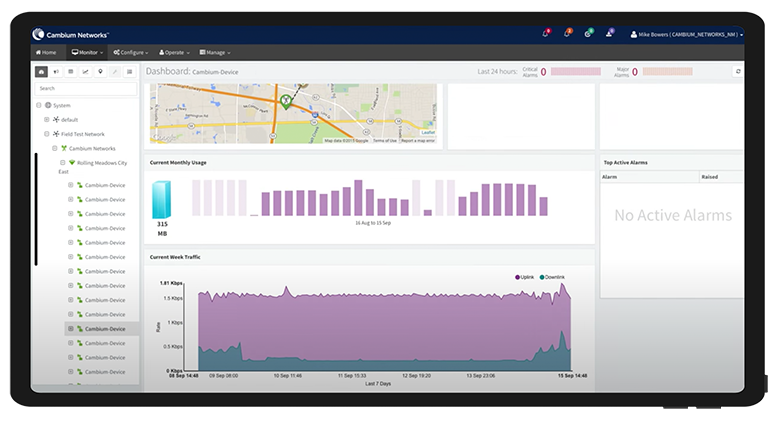

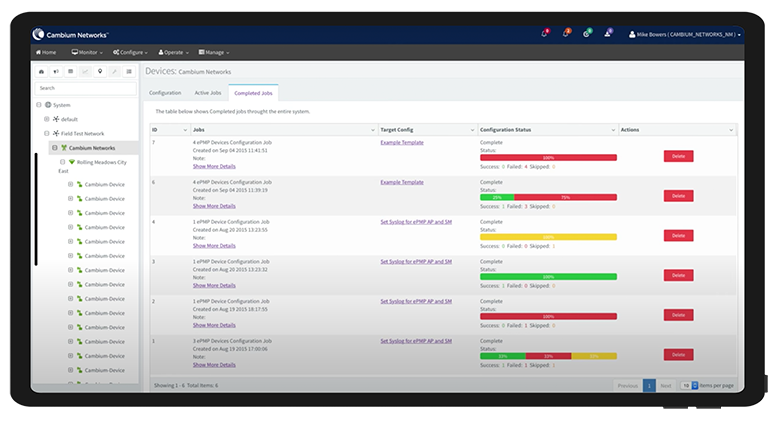

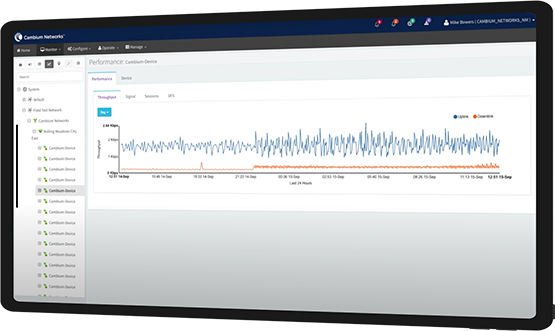

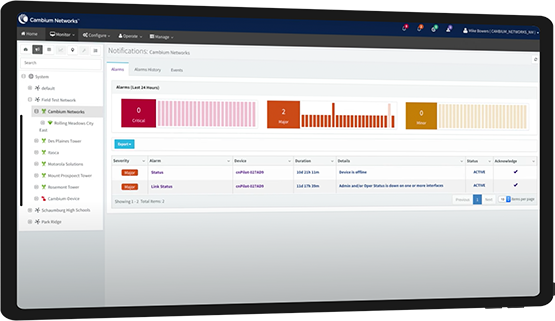

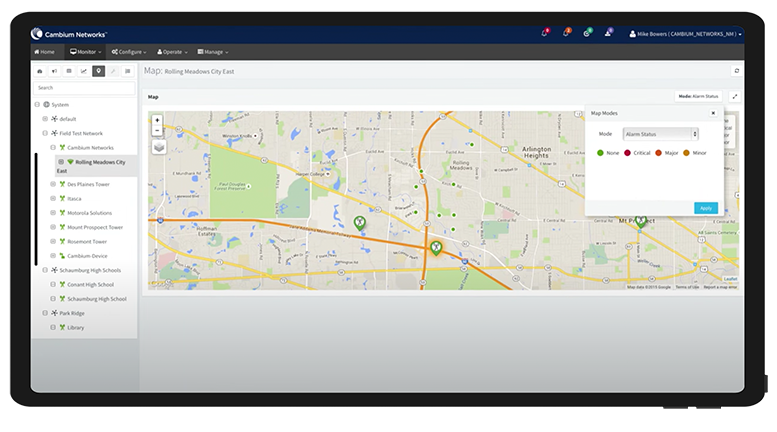

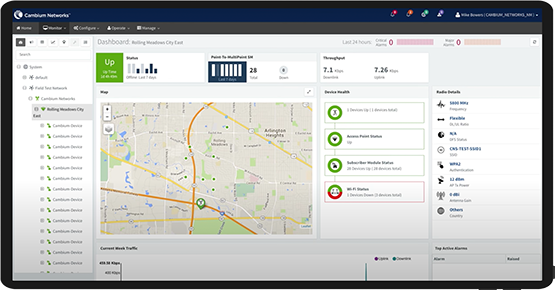

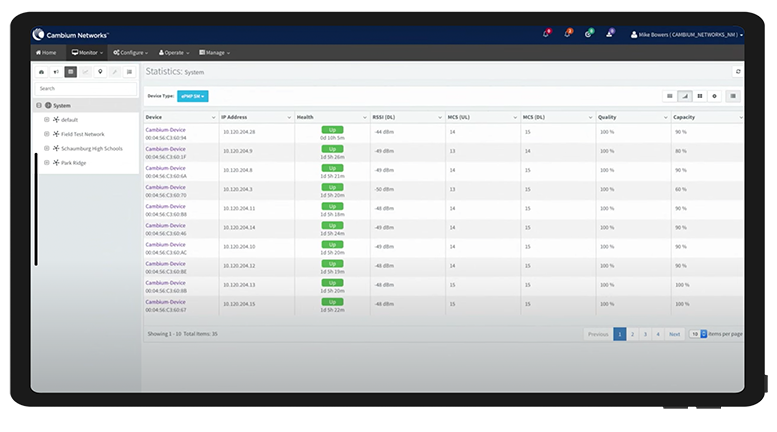

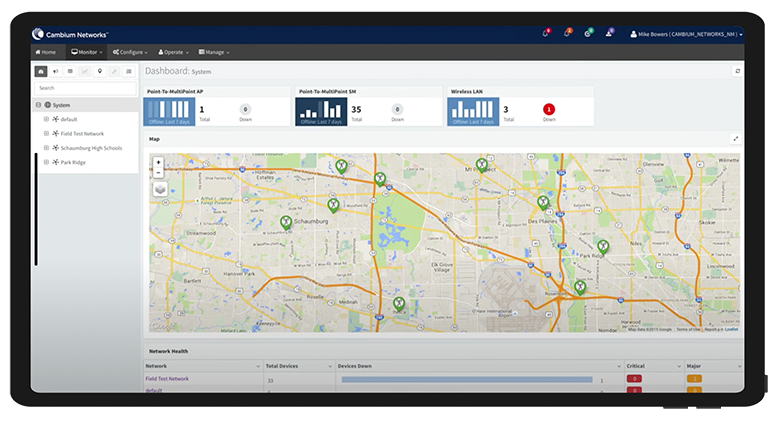

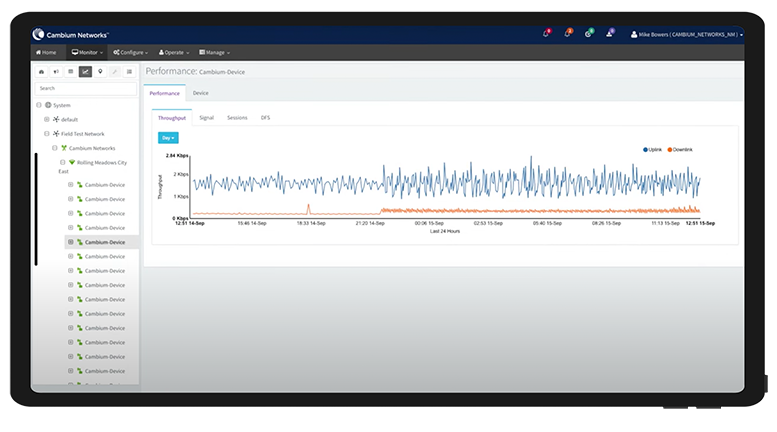

  • cnMaestro screen1
  • cnMaestro screen2
  • cnMaestro screen3
  • cnMaestro screen4
  • cnMaestro screen5
  • cnMaestro screen6
  • cnMaestro screen7
  • cnMaestro screen8
  • cnMaestro screen9
  • cnMaestro screen10
  • cnMaestro screen11

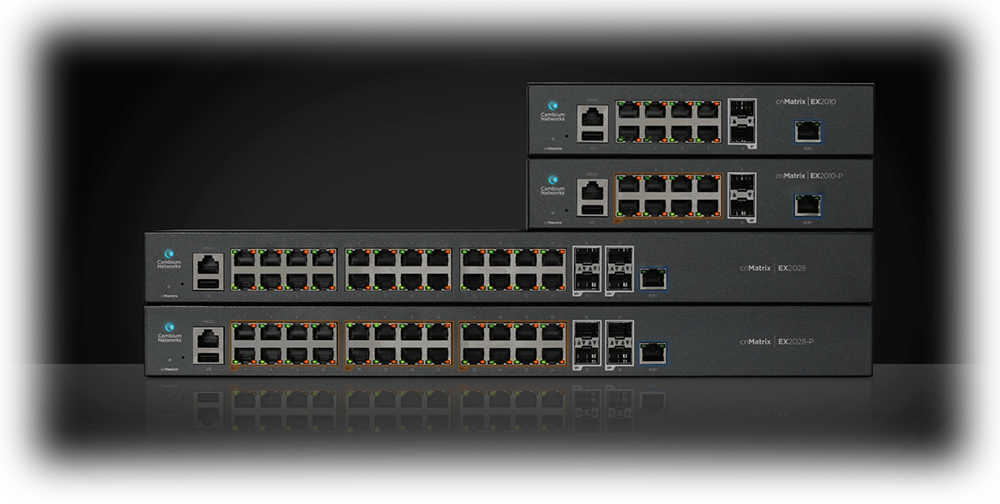

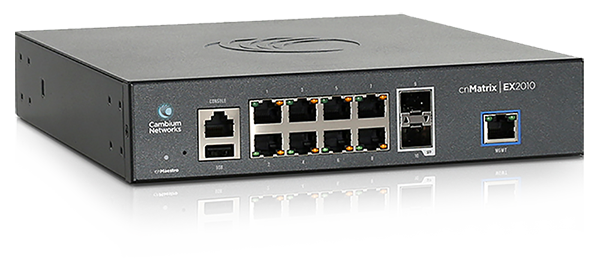

switch
e600 access point

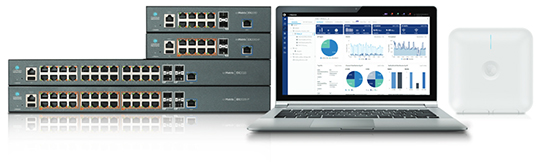

Deploy cnMatrix with cnPilot WLAN access points and the cnMaestro management system for an affordable, feature rich, high quality unified wired/wireless enterprise grade network.

cnMatrix Enterprise Switch Highlights

Policy Based Automation

Ability to profile devices and automatically configure the switch providing a zero-touch experience even when deploying, disconnecting or moving network devices



Auto Device Segmentation

Provides a secure environment for critical network resources by automatically placing devices in the appropriate network segment based on their profile


Auto Policy Wipe

Improves security by automatically removing all associated dynamic configuration when a device disconnects



Wireless Aware

Enables policy automation, easy monitoring, and troubleshooting of the unified wired/wireless network

Site Survivability

Uninterrupted operation even when connectivity to the cloud is lost

Cloud Management

cnMaestro’s free cloud-based management platform provides rich lifecycle management, configuration and control, and security services; which can also be made available with on-premise deployment options

cnMatrix Academy

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

The Complete Wi-Fi Package

Experience the power of zero-touch managed Wi-Fi

Cambium Networks delivers high-performance indoor and outdoor Wi-Fi to meet the needs of the most demanding enterprises. Give users consistent, “wired-like” performance plus superior coverage and security depending on your needs — whether from single, small office network or global, multi-site enterprise networks.

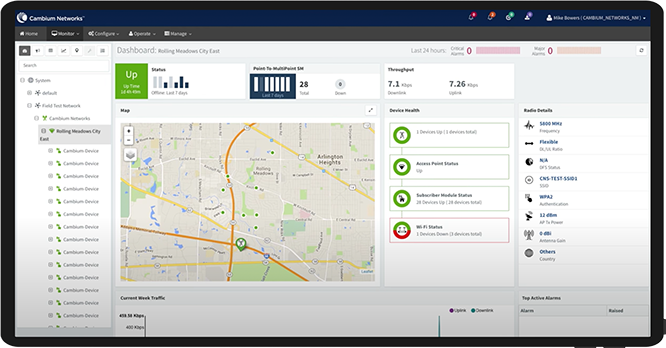

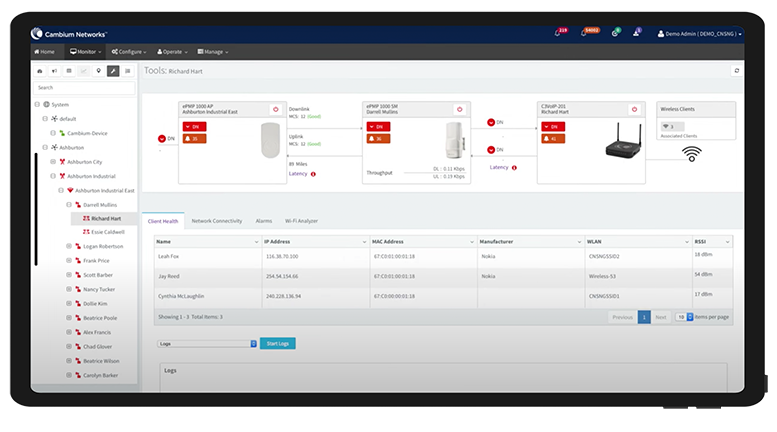

cnMaestro software view
cnMaestro software view
cnMaestro software view

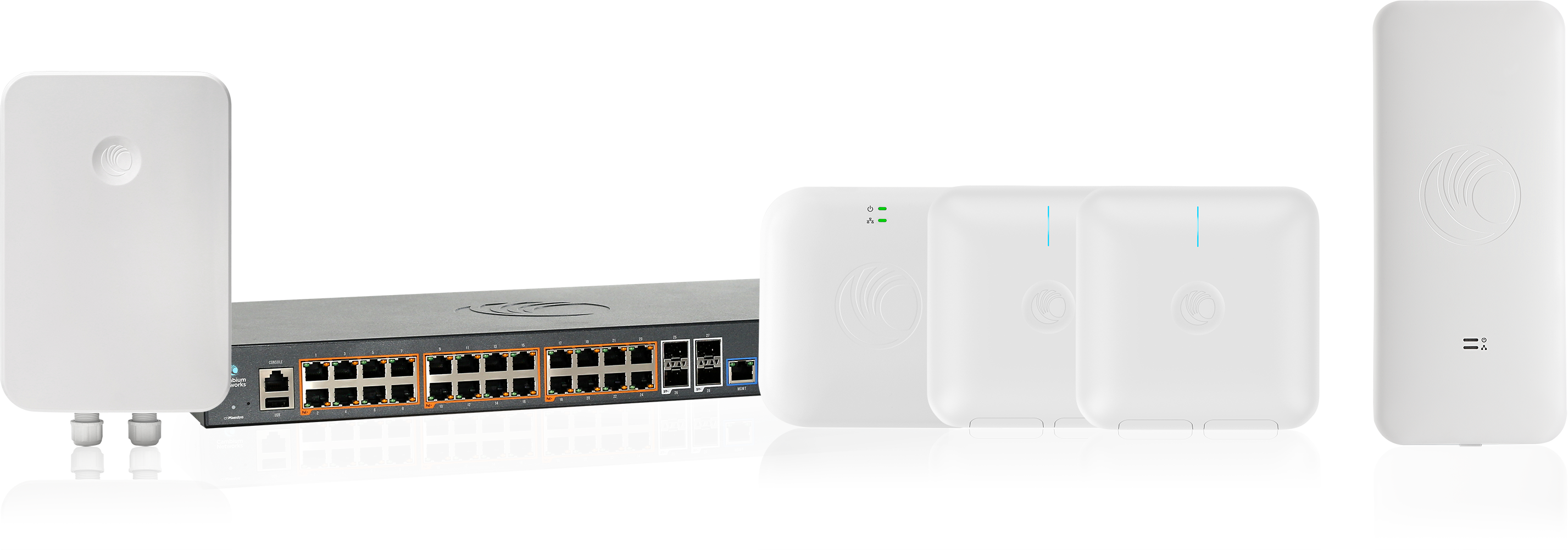

Cambium cnPilot WiFi Products

cnPilot Wi-Fi Highlights

Policy Based Automation

Automatic, secure cloud adoption with central policy and access control allows profiling and automatic configuration providing a zero-touch experience even when deploying, disconnecting or moving network devices



Auto Device Segmentation

Provides a secure environment for critical network resources by automatically placing devices in the appropriate network segment based on their profile


High Capacity by Design

Best in class receiver sensitivity with high-efficiency antennas and optional MESH, auto-MESH feature




Network Optimisation

Maintain control of your network with interference detection and mitigation. Manage max power control, channel utilisation, noise level and off-channel scan control. Seamless and assisted roaming across VLANs with 802.11k/r/v, enhanced roaming & RF-fence features



Reporting

Get powerful dashboard network KPIs with integrated help desk tools for easy monitoring, and troubleshooting of the unified wired/wireless network



Cloud Management

cnMaestro’s free cloud-based management platform provides rich lifecycle management, configuration and control, and security services; which can also be made available with on-premise deployment options

Seamless Remote Cloud Management

Cambium management solutions offer public cloud, private cloud and on-premises options, all optimized for scalability, zero-touch provisioning and simplified operations.

  • cnMaestro screen1
  • cnMaestro screen2
  • cnMaestro screen3
  • cnMaestro screen4
  • cnMaestro screen5
  • cnMaestro screen6
  • cnMaestro screen7
  • cnMaestro screen8
  • cnMaestro screen9
  • cnMaestro screen10
  • cnMaestro screen11

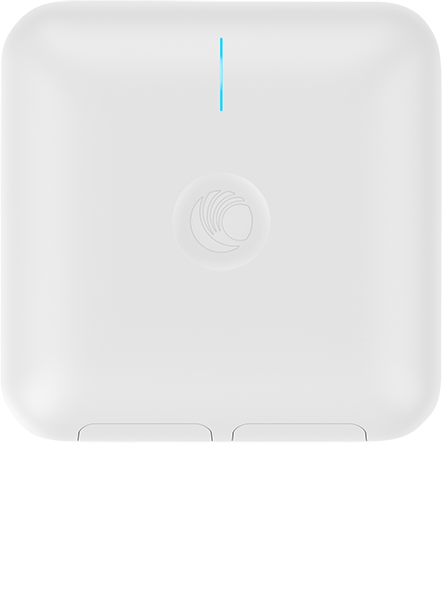

e600 Access Point

Largest gaming conference in Europe uses cnPilot WiFi

Tens of Terrabytes. Thousands of unique client devices. Huge number of simultaneous users.

  • High quality without compromise
  • Better signal de-correlation
  • Simple and quick

  • Over 50,000sqm
  • 200+ Exhibitors
  • 600+ Playable Units
  • 100+ VR Units

Industry

cnPilot Academy

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

cnRanger: The Next Generation in Fixed LTE

The cnRanger™ Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage while reducing the cost and complexity typically associated with LTE networks.

- Benefit from simplified LTE with a virtualized, embedded core.
- Utilize LTE optimized for fixed wireless broadband.
- Recognize and provision elements on contact while prohibiting unauthorized devices with zero-touch configuration.
- Avoid cost and complexity of the Evolved Packet Core (EPC), eliminate dependency on cloud communication and provision infrastructure in minutes.

cnRanger Education

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

cnVision – Purpose Built Wireless Solutions

for Video Surveillance and CCTV

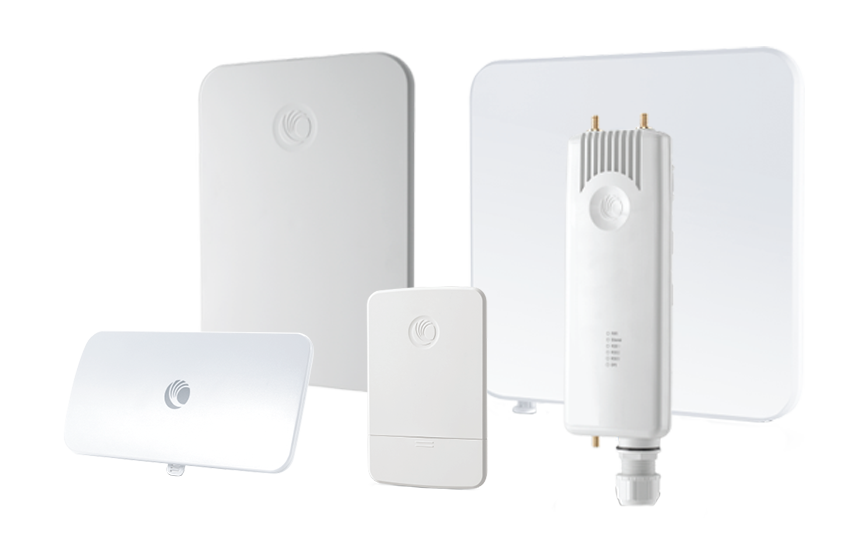

cnVision Product

Wherever you need to put a camera, cnVision makes the connection.

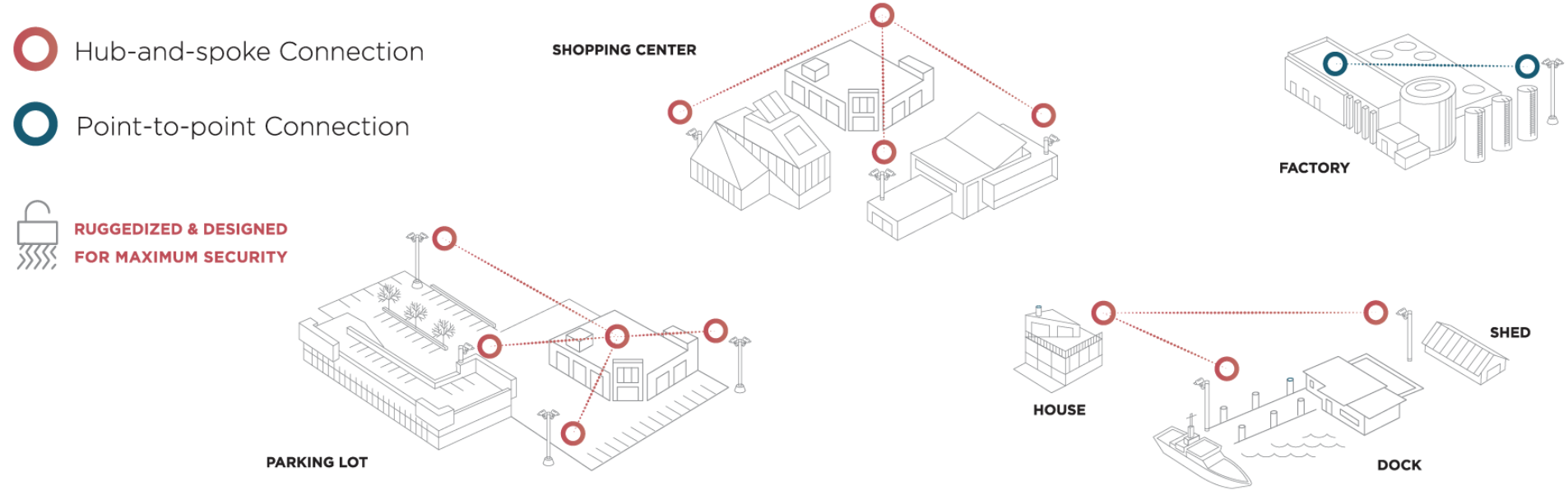

cnVision deployment examples

What are cnVision’s advantages over other wireless solutions for video surveillance?

easy install
Easy to Install
cost effective
Cost-effective
Easy plan and manage
Easy to Plan & Manage
Secured with Encryption
Secured with Encryption
24/7 support
24/7 Support
3 year warranty
3 Year Warranty
client distance

Client Distance

hub distance

Hub Distance

Configuring your network is easy.

Just a few questions and you’re on your way to the ideal set up.

CONNECTING ONE LOCATION?

Choose Two Clients to connect point A to point B.

CONNECTING SEVERAL LOCATIONS?

Choose One Hub and as many Clients as needed.

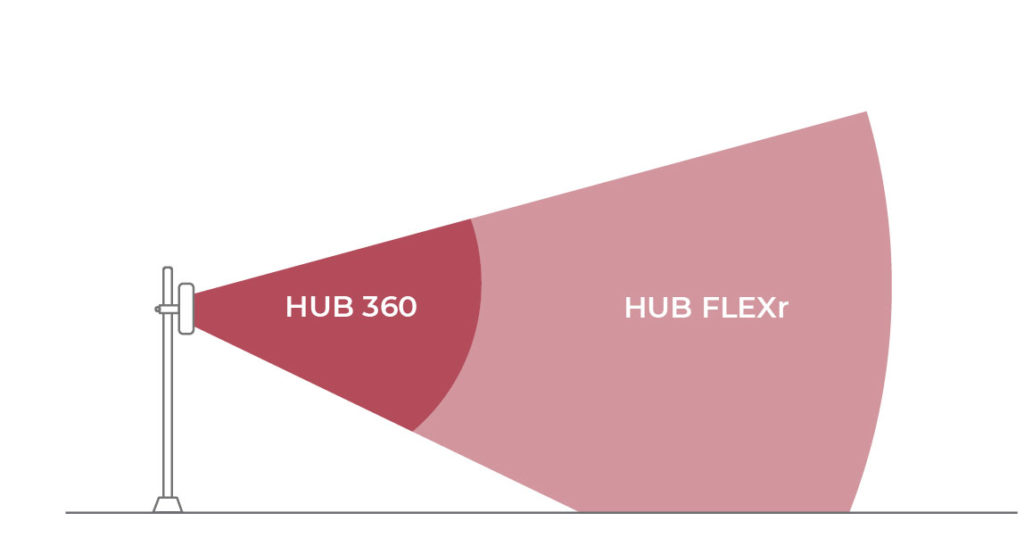

Choose your Hub

From what distance will you be monitoring cameras?

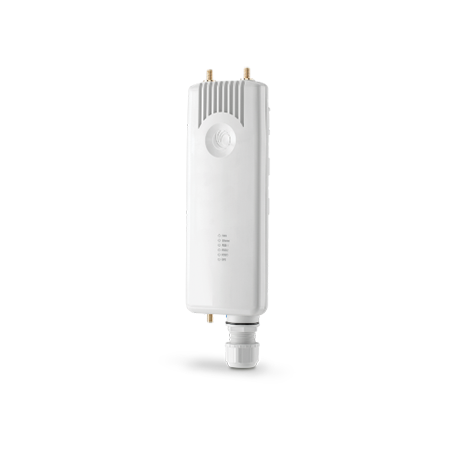

hub flex r

HUB FLEXr

up to 8km

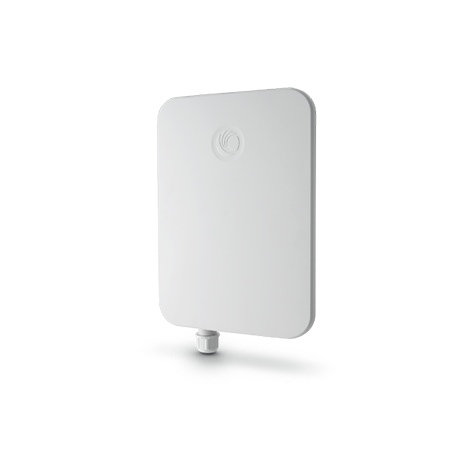

hub 360

HUB 360

up to 1.6km

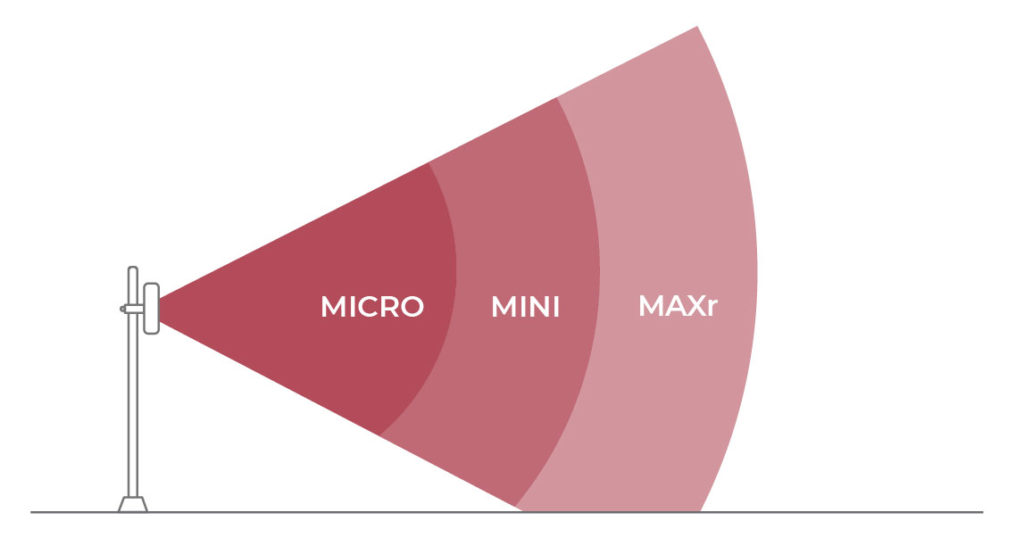

Choose your Clients

How many camera locations
and what is their distance?
Level of security
ruggedization needed?

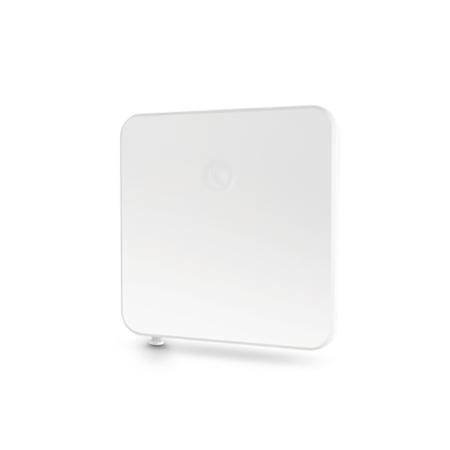

client max r

CLIENT MAXr

Long-range

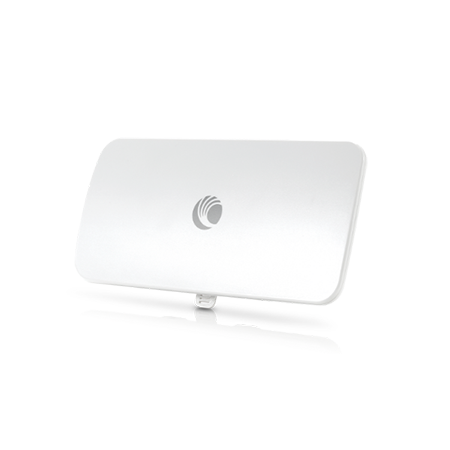

client mini r

CLIENT MINI

Mid-Range

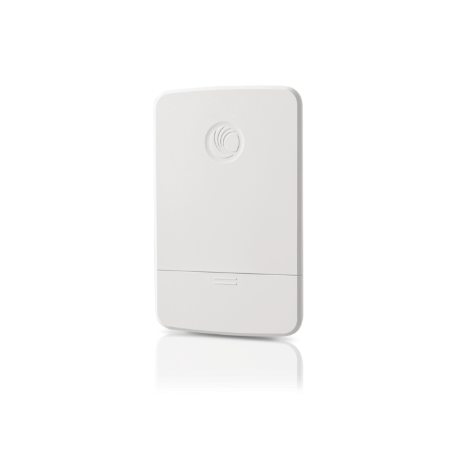

client micro r

CLIENT MICRO

Short-range

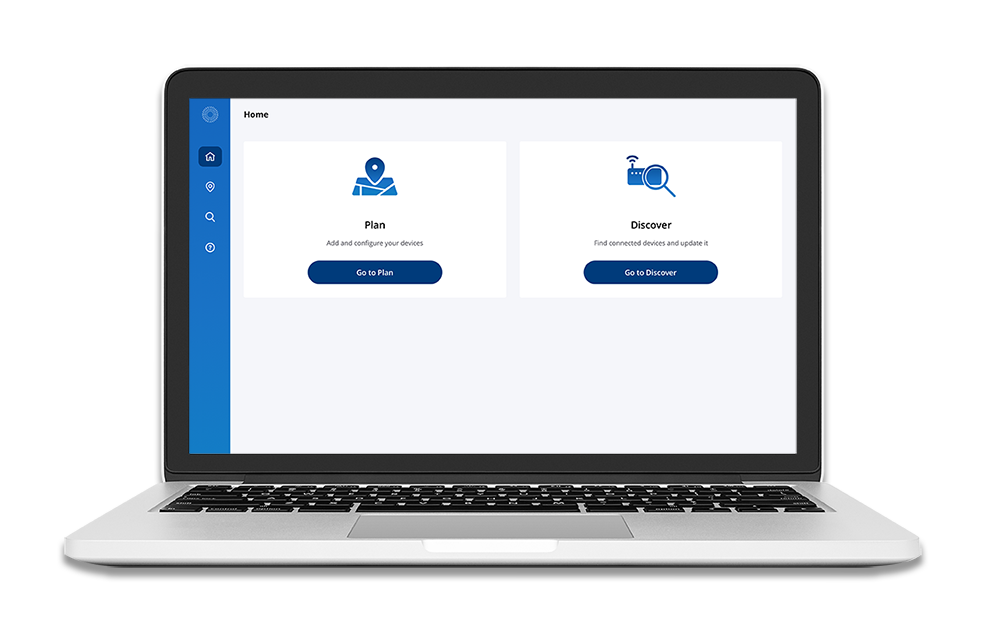

cnCompanion

When you’re ready to install your cnVision network, cnVision Companion helps you easily set up and manage your camera network. (Coming Soon)

Some Additional Questions

Which antenna should I use?
HUB 360 has a built in 360° antenna.

hub 360 degree antenna
HUB FLEXr has several antenna options:

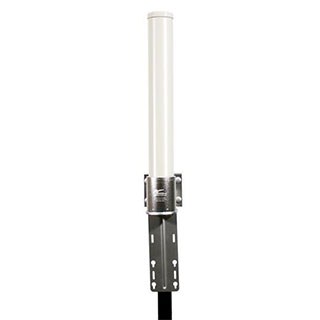

omni directional

Omni-Directional

360º Coverage 8 dBi / Short Range

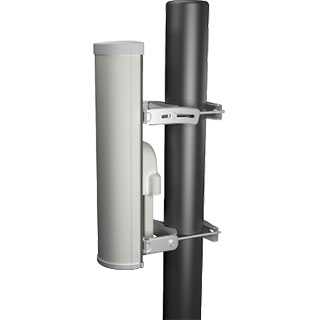

90 degree sector

90degree Sector

90º/120º Coverage Long Range

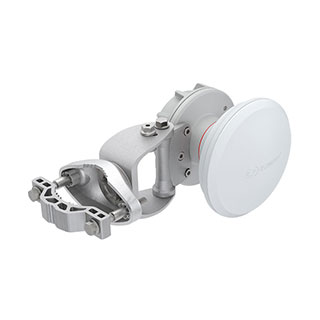

RFElements Horn

RFElements Horn

45º – 60º Coverage Narrow pattern Excellent noise immunity

Which cameras does cnVision work with?

cnVision works with all IP cameras in the market. cnVision is simply a transport layer which can provide the necessary bandwidth to transport mission critical video wirelessly.
onvif logo
cnVision Hub and Clients support ONVIF and therefore cameras capable of ONVIF can be discovered and the video stream displayed in the Hub/Client UI for further troubleshooting.
Axis
Dahua
Hikvision
Avigilon
Panasonic
Mobotix
Vivotek
Milestone

Which Video Management Systems does cnVision work with?

cnVision supports the following VMS platforms where we support event notification and information tile creation.
Wisenet
Networkoptix

Where can I get support from the cnVision community?

cnVision Education

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

cnWave – 60GHz mmWave

Designed for High-Speed and High-Density Deployments

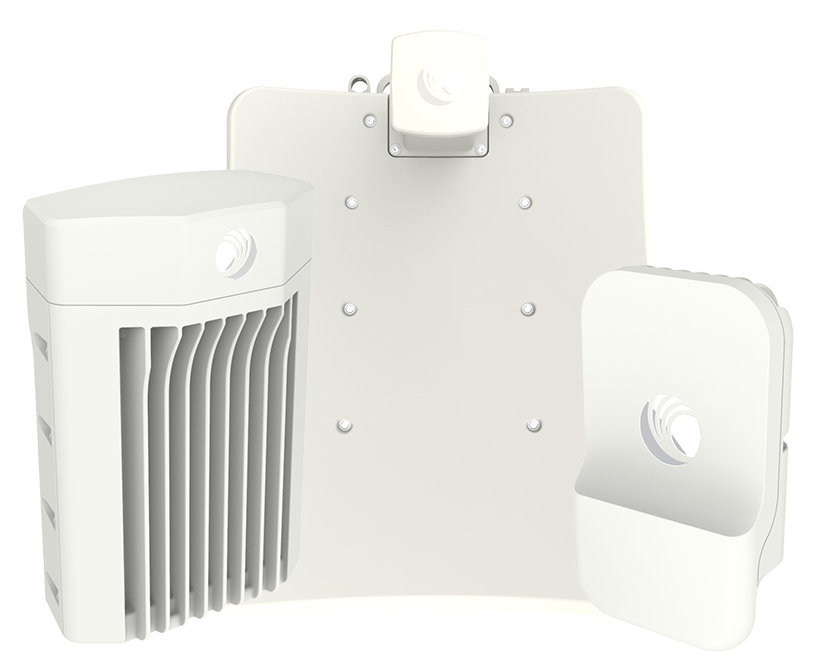

cnWave Product
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for
PTP, PMP and mesh configurations.

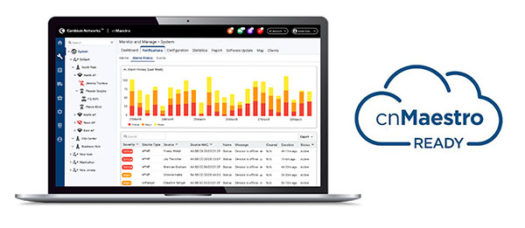

cnMaestro ready
60 GHz cnWave operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.
V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for
PTP, PMP and mesh configurations.

cnWave Education

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

cnXirrus X-Series Wi-Fi Access Points

For Scalable High Density Deployments

cnXirrus offers high-performance automated cloud-managed access points with BYOD Management.
cnMaestro software view
cnMaestro software view
cnMaestro software view
Cambium cnPilot WiFi Products

HIGH DENSITY

Multi-radio, software-defined APs increase capacity, lower TCO.

APP INTELLIGENCE

Prioritize applications and enforce policies at the edge of the network.

EASY ACCESS

Simple Secure Access for Users, Guests, BYOD and IoT.

CLOUD MANAGED

Simple, secure, scalable management.

industry examples

What to Buy Where?

Vertical Xirrus cnPilot Key Requirements
Large Public Venues High density indoor and outdoor, power user configuration abilities
Higher Education Broad use cases including classrooms, auditoriums, stadiums, dorms, outdoors. Heavy BYOD, onboarding, brand recognition.
K12-Med-Large High density classroom, BYOD, App Visibility & Control
Federal FIPS certifications, on-prem management
Hospitality T1 Tier 1 with high density in conference areas, casinos, etc., APIs
MSP Large MSP’s serving >500 employees, multi-tenancy, higher end AP’s
Retail Lean IT, legacy device support, simple deployment
Mid-Market Need advanced capabilities
K12-Small Lean IT, ease of use, cloud
Hospitality T2 Tier 2 and below, MSP capabilities, API
Service Providers Simple large scale deployments
MSP-Small MSP’s serving <500 employees, hospitality accounts
SMB Simple, set and forget networks
Public Wi-Fi outdoor use cases, simple mass deployment

XMS Cloud Management

XMS is a cloud-managed or on-premise platform, for deploying a network that delivers complete control and visibility—anytime, anywhere.

LIMITLESS

Cloud platform scales on-demand and radios can be added as needed (No defined limit) with the flexibility of a SaaS solution.

ROBUST SECURITY

A true multi-tenant platform that provides data isolation among different cloud tenants.

HIGHLY RESILIENT

No centralised control means no single-point-of-failure so you can ensure your system stays up and so do mission-critical applications.

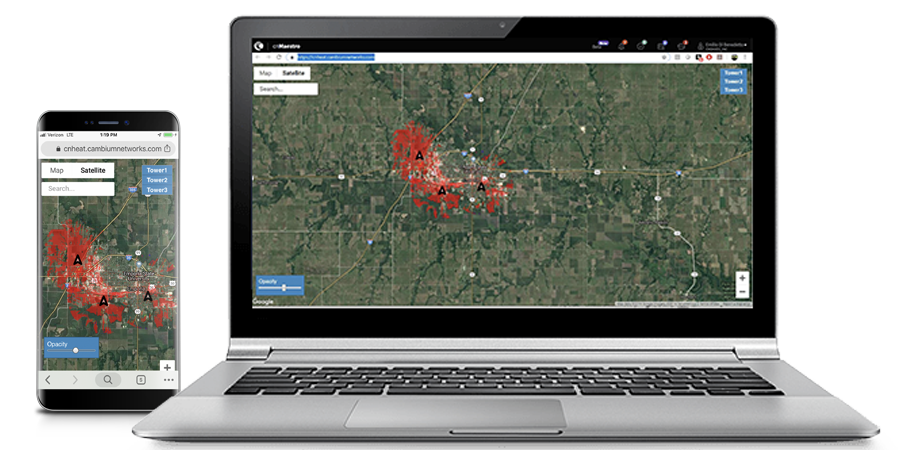

cnheat software
cnheat software

Xirrus Positioning System for Location Services

Delivering unique user experiences for thousands of visitors simultaneously—ideal for retail shops, public malls, convention centers, sports arenas and more.
✔  Tracks up to 100,000 Wi-Fi devices simultaneously
✔  Powerful processors in every AP calculate location & deliver ultra-fast position updates
✔  Works with connected and unconnected Wi-Fi devices
✔  No need for expensive central location appliance
✔  Employs standards-based RESTful JSON API

Easy Pass

Simple Secure Access for Users, Guests, BYOD and IoT.
✔  Streamline operations with cloud-based service
✔  5x fewer steps to onboard devices than competitive solutions
✔  Integrate directly with Microsoft Office 365 and Google Apps with single sign-on
✔  No agents/certificates/applications required
✔  Dynamically create secure personal Wi-Fi networks
✔  One-click portal for simple guest access

EMPLOYEES/IOT

Onboarding
Microsoft Azure
Google Login

BYOD/GUESTS

Self-Registration
Guest Ambassador
Personal Wi-Fi

CUSTOMERS

Voucher
One-Click Access
cnheat software

Application Control

Maintain Superior Application Performance Under Any Conditions

Prioritize business-critical applications and devices, restrict bandwidth-heavy application usage, and block restricted applications completely. Give administrators full control to manage the network despite high device volume and unpredictable application use.
cnheat software

Cambium Networks Academy

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

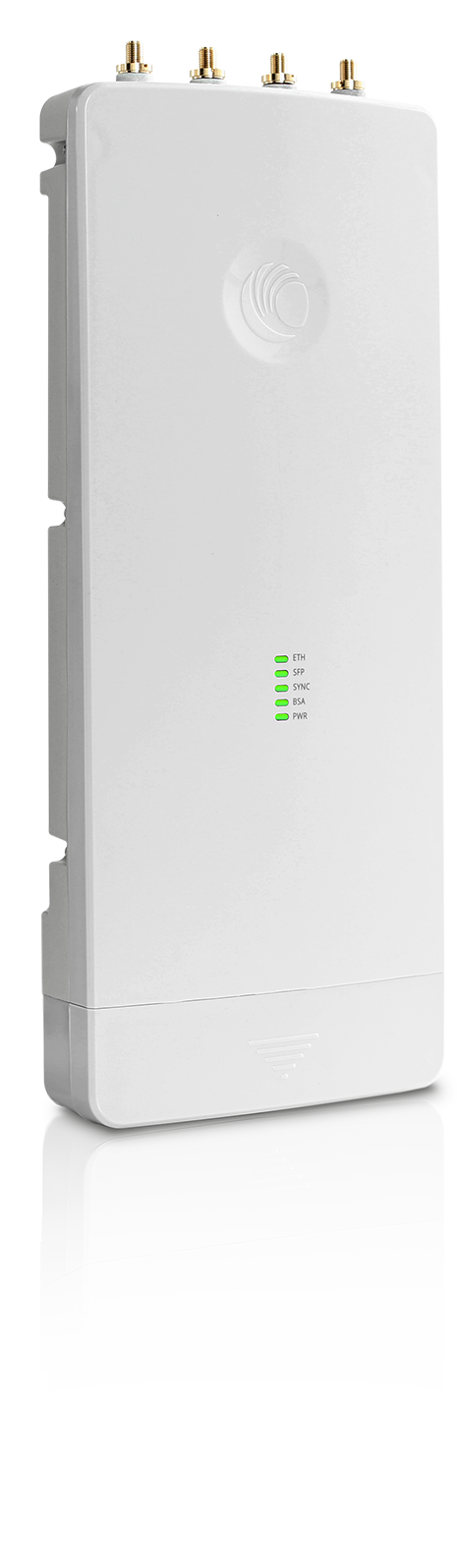

ePMP Broadband Solutions

Outdoor Point-to-MultiPoint wireless options for everyone from small business to enterprises.

Encompassing a comprehensive range of subscriber modules, access points, and sector antennas to make sure your network performs at its best, from end-to-end. Powered by innovative Hypure™ technology, ePMP incorporates Smart Beamforming and Intelligent Filtering to help you deliver the services your customers expect in the face of heavy interference.

3 Year Warranty on ePMP 1000, 2000 and 3000

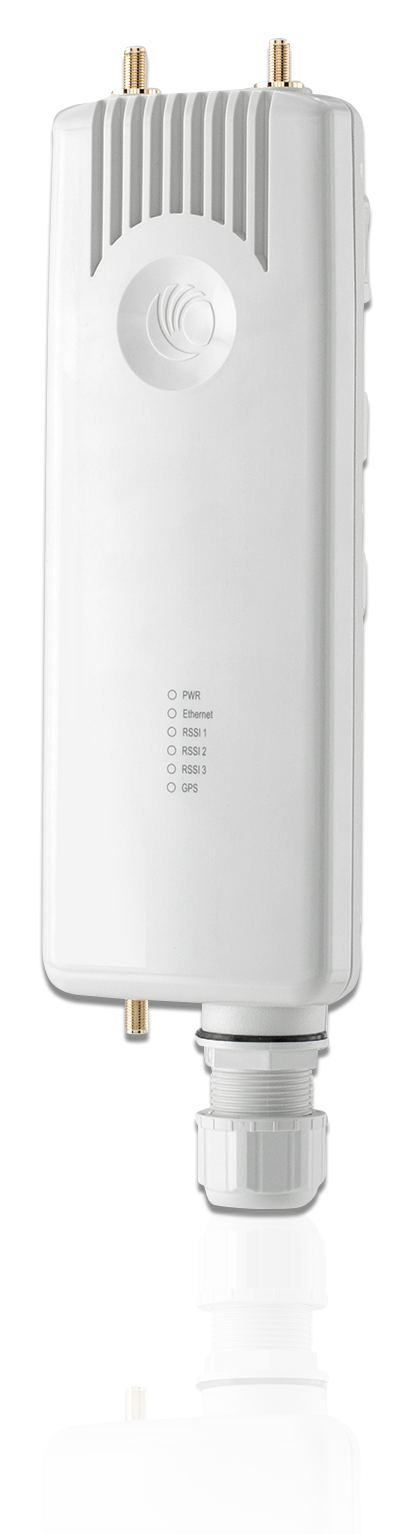

ePMP Subscriber Modules

Cambium has numerous robust IP Rated 5 GHz 802.11ac Wave 2 SM options meeting your demands based on capacity, distance and form factor requirements:

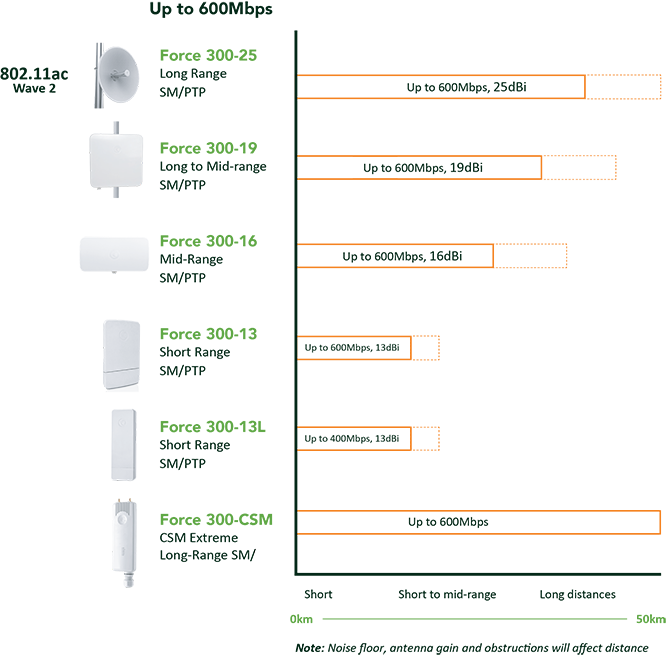

ePMP distance diagram

TOP LINE SPECIFICATIONS

✔  Reliable, consistent performance in real-world conditions

✔  5, 10, 20, and 40 MHz channel bandwidths - 200+ Mbps of real-world throughput

✔  Up to 120 active subscribers per access point

✔  Secure over-the-air communications (128-bit AES encryption)
✔  Industry-leading frequency reuse via GPS Synchronization

✔  Configurable QoS for voice, video, and data

✔  Up to 64km deployment range Point-to-point and point-to-multipoint options (software configurable)

✔  End-to-end cloud management with cnMaestro™

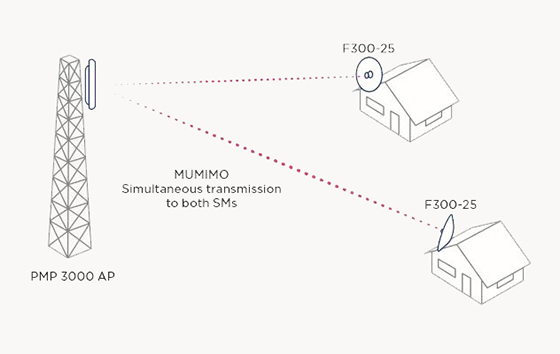

Multi-User MIMO

Achieving higher throughput in the downlink is often solved by achieving higher modulation or wider channels. In both cases, the environment and interference prevents achieving higher modulations or operating in wider channel bandwidths. ePMP 3000 employs Multi User Mimo technology (MUMIMO) to simultaneously transmit to two subscribers in the downlink and thus doubling the throughput in the downlink.

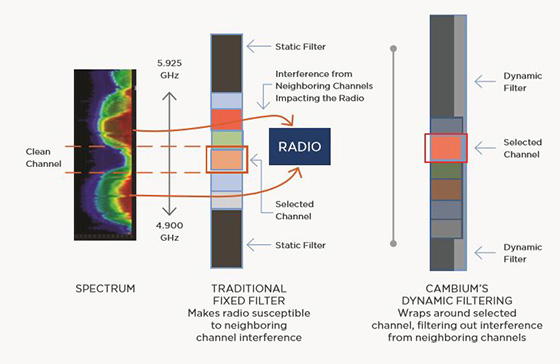

Intelligent Filtering

Noise is always a concern, and as more transmitters are deployed, will continue to be a critical factor in operation. While almost all radios have some type of filtering, many use static filters that block out only noise from outside of the radios total operating spectrum. While this provides a clear channel for operation, these systems with fixed filters still allow noise from neighboring channels to affect system performance. Cambium Networks solutions use dynamic filtering with a static filter to block noise from outside of the operating spectrum but also a dynamic filter to block out interference from adjacent channels. As the system changes to another channel, the system automatically blocks out noise from adjacent channels to improve signal quality.



Intelligent Filtering

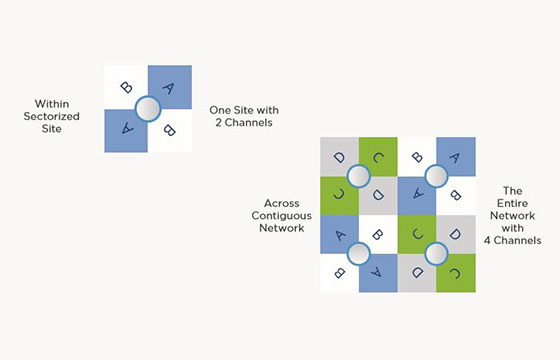

Frequency Reuse

Frequency Reuse

Frequency is limited. There will never be any more of it. By re-using frequencies when deployed in back-to-back configuration, a network operator can effectively use the same frequency twice to connect users. In large deployments, a network operator can connect thousands of users by re-using the same frequencies across the field service area. This technology maximizes the use of available frequency and can provide access to thousands of users in a small amount of spectrum.



Intelligent Filtering

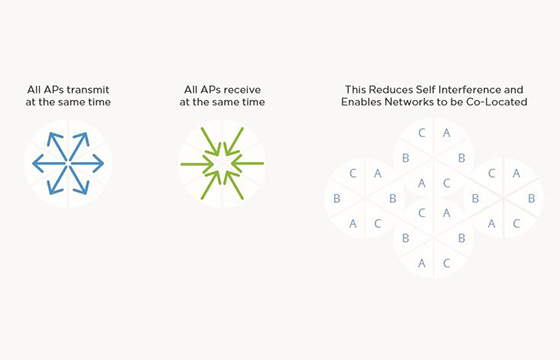

When networks become more dense, self interference becomes an issue. GPS synchronization coordinates the entire network, reduces self interference, and keeps network performance high as more subscribers are added.



GPS Synchronisation

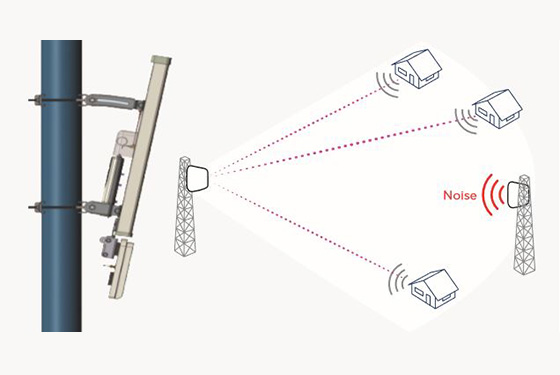

Beamforming

Smart Beamforming and Beam Steering

As more emitters are deployed in the service area, it is important to mitigate noise and interference in order to provide reliable high speed connectivity. The ePMP 3000 Access Point works in conjunction with the optional Beam Steering antenna to create narrow beams in the uplink to improve signal to noise ratio. Placed at the access point on a tower, the smart antenna will create tighter beams to connect with subscribers while nulling out radiation from unwanted emitters in the field.

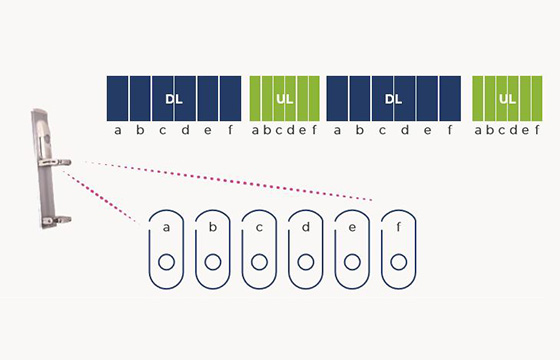

Air Fairness

ePMP employs a sophisticated priority-based, air fairness, starvation avoidance algorithm for allocating RF resources to SMs. The allocations are based on airtime instead of throughput and so we avoid the situation where SMs in poor RF conditions take up an excessive amount of time and therefore available capacity.



Air Fairness

HeroTel ePMP 3000

HeroTel is a WISP from South Africa that serves 80,000 clients. Watch HeroTel’s head of RF go on the record to explain how ePMP 3000 allows HeroTel to reduce their costs, offer higher service packages, take fewer inbound support calls, and increase the stability of their network!

ePMP Education

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

Industrial Internet of Things (IIOT) - cnReach

Resilient communications infrastructure that interconnects sensors and controls across large-scale field area networks.

Promising delivery of real time monitoring, measurement, and analytics that optimize performance while establishing sustainable competitive advantage.

Rapidly deployable wireless architecture can cover ranges up to 245 kilometers with end-to-end connectivity for Cloud-based applications.

cnReach
servicing electric, mining, oil and gas, transportation and water utilities
industry examples

OVERVIEW

Currently, throughout industries such as water management, oil and gas, electricity, and transportation, workers collect data at timed intervals – rather than automated systems accumulating it in real time. Automated facilities are still only a sub-set of the potential population, but reliance on human intervention for data collection limits operational efficiency compared to the decision-making capabilities supported by a richer data pool. The Industrial Internet of Things (IIOT), which enables machines to connect with one another over the Internet, presents a major development in data collection, intelligent decision making, and automation to positively impact efficiency, costs, and safety – but only if the remote elements are connected!

TRADITIONAL SYSTEMS

System automation emerged in the wake of computer technologies that support such applications as PLC (Programmable Logic Control) and SCADA (Supervisory control and data acquisition), which evolved over the past 30 years as methods of monitoring and controlling large processes. These technologies rely on sensors, machines, RTUs (remote terminal units), and PLC or SCADA, communicating with each other over short distances to enable local automation and control. Longer distance connection and centralized control is possible, but very costly.

traditional automatic control system
The diagram above is an example of a traditional automatic control system.
architecture of an IIOT control network
The diagram above shows the architecture of an IIOT control network where all sensors and machines are IP capable, communicating with one another using protocols such as ModBus TCP, MQTT, etc.
migration plan towards IIOT architecture
The diagram above shows a migration plan towards IIOT architecture.
The possibilities of an IIOT architecture featuring Cambium Networks solutions.
possibilities of a Cambium IIOT architecture

IIOT Education

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

Point-to-MultiPoint Broadband Solutions

For Serious Network Operators of all Sizes

This truly leading-edge innovation utilises not only nearly infinite beamforming patterns in both the uplink and downlink but massive MU-MIMO in each direction as well. In addition to 5 GHz and 3 GHz, the PMP 450 platform is also available in the 900 MHz, 2.4 GHz unlicensed bands as well as 4.9 GHz.

5 GHz PMP 450m Fixed Wireless Access Point with cnMedusa™ Technology

  • Industry’s flagship PtMP product
  • Ultimate in scalability & capacity
  • Extensive feature set including GPS Syncronization for frequency re-use
  • Versatile platform for wide ranging applications
  • #1 choice for large and growing network operators

PMP450 real use

PMP 450 Features

PMP 450m Access Point with cnMedusa Technology

The PMP 450m AP is one of the most scalable, highest-capacity and spectrally efficient APs in the industry. cnMedusa is a first-of-its-kind technology in a fixed wireless broadband access platform. The 450m utilizes MU-MIMO technology in a cost-effective solution. The implementation of MU-MIMO coupled with beamforming technology delivers groundbreaking spectral efficiency and outstanding performance in high-interference environments.

CNMEDUSA MASSIVE MU-MIMO

Combining Adaptive Beamforming and multiple RF chains can result in more than 4X total capacity compared to the standard 2x2 450i AP.

MULTIPLE RF CHAINS

14 x 14 Multi-user MIMO system on the 5 GHz model allows simultaneous communication to up to seven SMs. 8 x 8 Multi-user MIMO system on the 3 GHz model allows simultaneous communication to up to four SMs.

INTEGRATED 90° SECTOR ANTENNA ARRAY

Leading Edge antenna innovation brings Smart Beamforming to the 450 platform, ZERO RF cables to connect or weatherproof.

INDUSTRY-LEADING SPECTRAL EFFICIENCY

PMP 450m 5 GHz delivers >500 Mbps actual throughput in a 20 MHz channel (20+ bps/Hz, and over 40 bps/Hz when deployed in frequency re-use configurations).

  • PMP 450 2×2 Access Points

    The PMP 450 platform includes a variety of 2×2 MIMO APs ideal for applications where the scalability of the 450m (cnMedusa) is not required. Built upon advanced FPGA & SoC architecture, PMP 450 APs utilize Cambium Networks’ proprietary MAC / scheduling algorithm to enable highly efficient use of limited spectrum and maximum bandwidth allocation, supporting large numbers of subscribers per sector with minimal latency. Frequency re-use via GPS synchronization allows for efficient spectrum re-use throughout the network. PMP 450 APs, and the PMP 450 platform in general, offer a vast feature set including extensive L2 management capabilities, highly configurable channel width & spacing, and a host of other parameters.
  • PMP 450 Subscriber Modules (SM)

    The PMP 450 platform includes a variety of SMs suited for any application. Each of the SM models are compatible with all PMP 450 APs (450m, 450i, and 450) within their designated frequency range.
  • PMP 450b (5 GHz and 3 GHz)

    450b SMs are the most popular choice for service providers due to their cost-effectiveness and easy-to-install form factors. 450b SMs offer wideband support, gigabit Ethernet POE and advanced processing capability. 450b SMs are available for 5 GHz and 3 GHz.*
  • PMP 450 SM

    Available for 2.4 GHz, 3 GHz, and 900 MHz the PMP 450 SM supports tiered service models. Software defined upgrades allow throughput from 4 Mbps to 100 Mbps. Range can be extended with the use of optional offset reflectors. The 3 GHz model is also available with the integrated high-gain flat panel antenna and the 900 MHz model is connectorized.*

“What really sets the Medusa apart is that its pushing almost a Gig capacity and that’s just super spectrally efficient. It’s amazing to see how this product has flipped our industry on its head in terms of allowing us to catch up and surpass a lot of the incumbent providers out there because it does allow you to provide these massive, massive services.”

- NATHAN STOOKE, CEO OF WISPER INTERNET

linkplanner software

LINKPlanner

Quickly design networks for optimal deployment and cost effectiveness with ease.

LINKPlanner allows you to model “what if” scenarios – based on geography, distance, antenna height, transmit power, and other factors – to optimize system performance before purchase.

PMP Education

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

Licensed/UnLincensed Ethernet Microwave for Multi-Service Networks

A single platform serving all radio transport requirements.

Our proven PTP820/850/670 series solutions are deployed worldwide, serving highly critical applications in formidable environments for the world’s most demanding users.
PTP series products

PTP820/850/670 SERIES PRODUCT HIGHLIGHTS

NOTES: The highlighted features may not apply to all PTP 820/850/670 platform
✔  Licensed frequency bands 6-86 GHz
✔  Up to 20 Gbps bandwidth supported
✔  TDM and/or packet supporting legacy services and evolution to all-packet
✔  Integrated Ethernet Switch, MEF Carrier Ethernet 2.0 compliant, MPLS-TP-ready
✔  Header de-duplication for an additional capacity boost



✔  Carrier-grade service resiliency (G.8032, MSTP)
✔  ITU-T Y.1731 Performance Management – MEF 35
✔  Lowest power consumption with adaptive green mode
✔  Low latency with a unique frame cut through for latency-sensitive services
✔  Industry-leading system gain

Key Features

FLEXIBLE CONFIGURATION

High-density multi-technology nodes and integrated radio units offer flexibility in choosing all-indoor, split-mount, and all-outdoor configuration options.

THROUGHPUT EFFICIENCY

Unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 4096 QAM and wider channel bandwidths ensures industry-leading throughput and spectral efficiency.

MULTI-GIGABIT PLUS CAPACITY

E-Band radio operation provides throughput up to 20Gbps, eliminating the need for future forklift upgrades, or major system overhaul by the network operator to deliver multi gigabit-plus capacity.

POWERFUL MANAGEMENT

Operations, Admin and Maintenance (OA&M) tools coupled with a full suite of network and element management systems (NMS and EMS) simplify network provisioning and monitoring.

HIGH SPEC PROTOCOLS

PTP 820/850 also offers both Synchronous Ethernet (SyncE) and IEEEv2 synchronization protocols required for large ISP and MPLS networks.

BEST-IN-CLASS PERFORMANCE

With best-in-class real-world performance and FIPS 140-2 approved security available for government and military applications, the PTP series is your connection to what matters, no matter what.

“Our customer needed secure broadband to manage their water district. Cambium’s PTP products delivered the connectivity they needed for mission critical operations.”

JOHN CRAWFORD, MANAGING DIRECTOR - CO-CHANNEL RADIO COMMUNICATION SYSTEMS

linkplanner software

LINKPlanner

Quickly design networks for optimal deployment and cost effectiveness with ease.

LINKPlanner allows you to model “what if” scenarios – based on geography, distance, antenna height, transmit power, and other factors – to optimize system performance before purchase.

PTP Education

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel

cnMaestro - Cloud Management

cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control.
cnMaestro software view
cnMaestro software view
cnMaestro software view
Cambium cnPilot e600 AccessPoint

MONITOR

Single pane of glass to view the entire network

CONFIGURE

Preconfigure supported devices so they will be automatically onboarded when provided with network connectivity

OPERATE

Google and floor maps offer visibility of the entire network with one-click functionality

MANAGE

Each device features dedicated dashboards with common and centralized upgrade and device configuration workflows

LINKPlanner - Design Networks

LINKPlanner allows you to model “what if” scenarios – based on geography, distance, antenna height, transmit power, and other factors – to optimize system performance before purchase.

  • Linkplanner screen1
  • linkplanner screen2
  • linkplanner screen3
  • linkplanner screen4
point to point

QUICK START

Path profiles are automatically imported into LINKPlanner when you create a new link using the Path Profile Web Service.

GRAPHICAL DISPLAY

Model links before deployment to optimize performance and throughput.

INTUITIVE FEATURES

Performance reports provide time-saving deployment guidelines, and single or multiple links can be planned simultaneously.

PROPOSAL GENERATION

Automatically generates bills of material and proposal and installation reports, simplifying the deployment process.

cnHeat - Illuminate the unconnected

cnHeat generates highly accurate RF predictions and derivative services that accurately represent the reality of the RF world.

cnHeat has three product families. These are LOCATE, IDENTIFY, and OPTIMIZE.

LOCATE

Generate highly accurate RF heat maps that predict RF coverage.

IDENTIFY

Heat maps identify the addresses and locations (i.e. latitude and longitude) of buildings that have RF coverage.

OPTIMISE

Enables a service provider to optimally place a Greenfield site(s) to cover desired subscriber modules (SMs).

cnheat software

cnArcher - Bullseye on Every Installation

Raise the bar on installation accuracy with cnArcher™, the free mobile app that gives field techs the information they need to configure and properly align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

cnArcher software

Wi-Fi Designer & Wi-Fi Inspector

Free tools for designing and testing a Wi-Fi network, providing real-time monitoring of your wireless network status

Designer

  1. Upload your floor plan or draw it directly in the app
  2. Choose different wall materials to see effect on RF coverage
  3. Place Cambium Networks APs on floor plan to visualize coverage
  4. Change RF characteristics of APs to see impact
  5. Generate and email final heat maps and bill of materials

Inspector

✔  Search for Wi-Fi networks
✔  Troubleshoot Wi-Fi connectivity issues
✔  Verify Wi-Fi coverage (site survey)
✔  Control a laptop’s Wi-Fi connection
✔  Locate Wi-Fi devices
✔  Detect rogue (unauthorized) APs
✔  Verify AP settings
✔  Aim Wi-Fi antennas
✔  Easy to use troubleshooting tools

Cambium Network Updater Tool

Centrally manage the distribution of software upgrades across your Cambium network.
cnheat software
The Cambium Network Updater Tool (CNUT) provides you with a centralised interface where you can track your growing network equipment deployments and upgrade software across a wide range of supported device types.

Supported equipment includes PMP, PTP, ePMP, and CMM devices, helping you wrangle even the most complicated upgrade.

CNUT is available on Windows and Linux (officially supported distributions include Red Hat Enterprise Linux and CentOS).

Cambium Networks Academy

Discover ideas, tips and techniques, and insights that will help you improve your skills, develop new expertise, and stay on the cutting edge of knowledge to maximise your Cambium Networks solution investment by participating in our live Webinars, facilitated by leading experts in intelligent edge and wireless fabric.


Live Webinar Events
Cambium Learning
Youtube Channel
