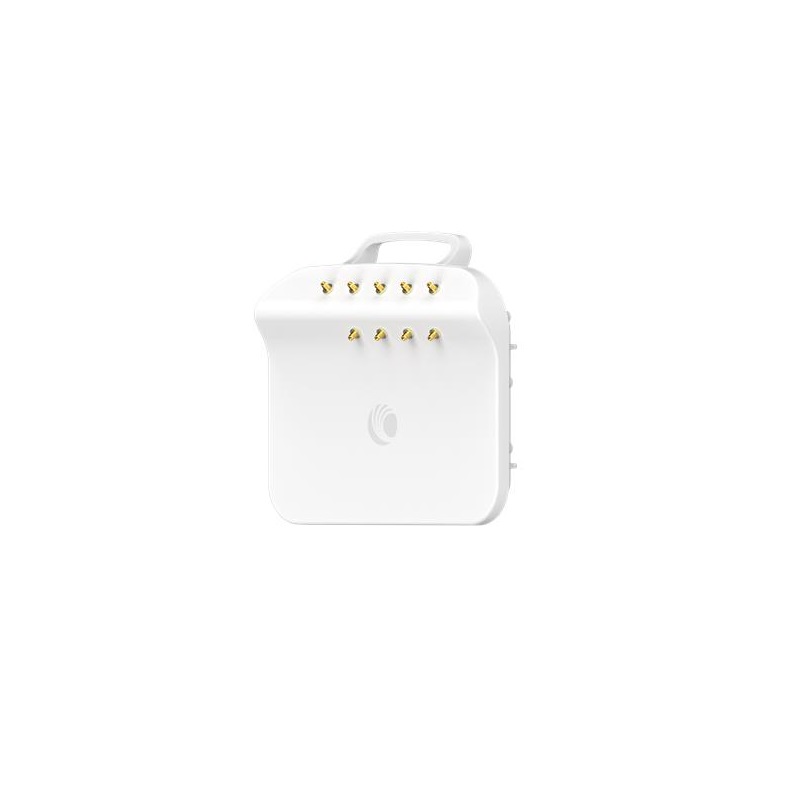

Cambium ePMP 4500C 5 GHz Connectorised 8x8 Fixed Wireless Access Point

$2,920.00 +GST

Out of Stock

SKU: C050940A811

Quantity	Price
1 - 4	$2 920.00
5 - 9	$2 847.00
10 - 19	$2 774.00
20+	$2 628.00

ETA: 13-01-2025

Data Sheet

Cambium ePMP 4500C 5 GHz Access Point Radio (ROW) (ANZ cord)

Warranty

Notify Me

Back to: Wireless Systems

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

Cambium ePMP 4500C 5 GHz Connectorised 8x8 Fixed Wireless Access Point (C050940A811).

Cambium Networks ePMP™ product line has set the standard for high performance, scalability, and reliability in harsh interference environments, all at a compelling price. ePMP 4500 Access Points (AP) interoperate with Force 400 Subscriber Modules (SM) and support backward compatibility to Force 300 Subscriber modules. A sophisticated scheduling and Quality of Service (QoS) engine combined with TDD synchronization allows ePMP 4500 APs to deliver consistently high-quality service plans to a large number of end users.

All ePMP 4500 Series APs are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge.

The ePMP 4500C features the same radio as ePMP 4500 but without the integrated antenna, allowing the end user to install their own sectored antennas or horns.

Features

High-performance, scalable and reliable access points for fixed wireless broadband
Features MU-MIMO for up to 4 Gbps in 5 GHz
Low TCO with three-year hardware warranty
Interoperable with Force 400 and Force 300 subscriber modules
Cloud or on-premises network management with cnMaestro

Details
Product Code	C050940A811B
Channel Width	20 / 40 / 80 MHz
Proprietary Physical Layer	8x8 MU-MIMO/OFDMA based on 802.11ax underlying technology
Channel Spacing	Configurable in 5 MHz increments
Frequency Range	Wide band operation 4910–6135 MHz
Ethernet Interfaces	100/1000 BaseT, rate auto negotiated, 802.3bt compliant & Aux SFP+ port
Supported Powering Methods	56V 60W PoE (included), standard 802.3bt PoE Supply, or cnMatrix Tower Switch, or wired DC input
Protocols Used	IPv4/IPV6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP snooping
Network Management	HTTPS, SNMPv2c, SSH
VLAN	802.1Q with 802.1p priority
Subscribers per Sector	Up to 120
ARQ	Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel	MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -62 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel	MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel	MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -57dBm (per chain)
Modulation Levels (Adaptive)	MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
GPS Synchronization	Yes, via internal GPS or Cambium Sync
QoS (Quality of Service)	Three level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast, and station priority
Transmit Power Range	0 to +33 dBm (combined, to regional EIRP limit) (1 dB interval)
Surge Suppression	1 joule integrated
Environmental	IP67
Temperature	-40°C to 55°C (-40°F to 131°F)
Weight	5.2 kg
Dimensions (H x W x D)	356 x 284 x 74 mm (14.0 x 11.2 x 2.9 in)
Power Consumption	32W maximum
Input Voltage	44V to 59V
Antenna Connection	8 x 50 ohm, RP (Reverse Polarity) SMA
GPS Antenna Connection	1 x 50 ohm, SMA; external GPS External GPS Puck included in packaging
Encryption	128-bit AES (CCMP mode)
