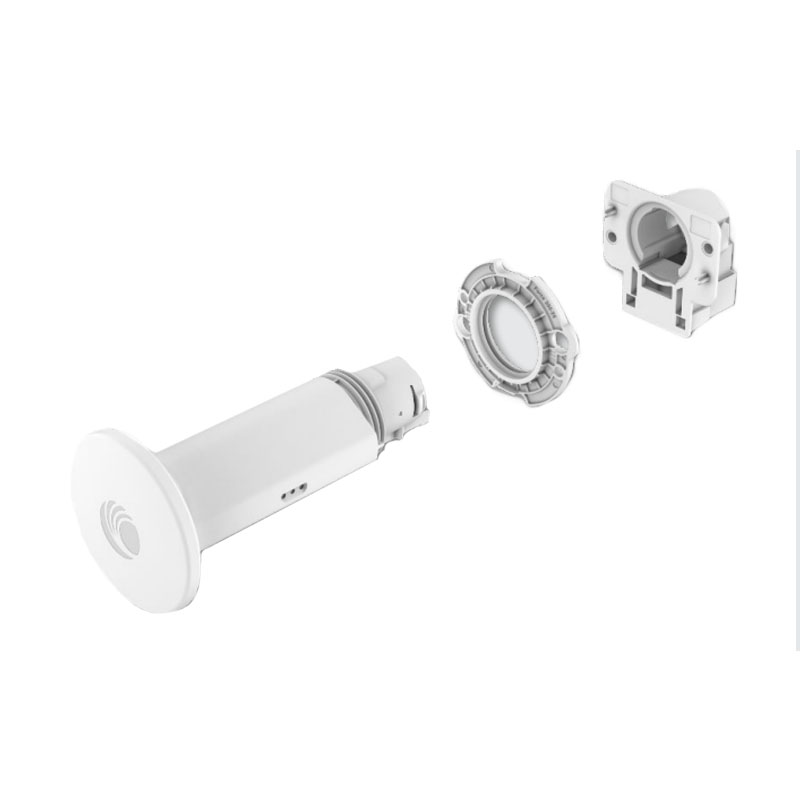

Cambium ePMP 5 GHz Force 4525L Feedhorn for 300-25.
Migrating an Cambium ePMP 3000-based network to the 4000 Series increases customer satisfaction, reduces churn, offers new higher speed packages, and increases capacity to bring new paying customers to your existing infrastructure.
By migrating from the Cambium ePMP 3000 to the ePMP 4500 or ePMP 4500L AP gives you a burst in performance. And you get additional benefits for each existing SM that is upgraded to a Force 4525L SM.
The Cambium Force 4525L Feedhorn is an innovative approach that makes network migration easier and more cost effective. Operators can upgrade their existing dish SMs (Force 300-25, Force 300-25L, Force 200, Force 200L) with faster installations, lower price points, and reduced shipping/storage costs, while eliminating unnecessary waste.
The Cambium Force 4525L Feedhorn is the same radio as the Force 4525L with the same performance specifications and physical size, as well as a 3-year warranty. It just eliminates the parts you don’t need when upgrading an existing dish-based SM. When you deploy the Feedhorn, you reuse the existing dish, mounting bracket, power supply, and line cord. There’s no need to realign the dish. It’s an environmentally friendly approach because the existing hardware isn’t scrapped. And the Feedhorn is lower priced than the full Force 4525L SM that includes the dish and accessories. It also takes up less than half the space of full dishes, saving on shipping and storage costs.
Migrating an Cambium ePMP 3000-based network to the 4000 Series increases customer satisfaction, reduces churn, offers new higher speed packages, and increases capacity to bring new paying customers to your existing infrastructure.
By migrating from the Cambium ePMP 3000 to the ePMP 4500 or ePMP 4500L AP gives you a burst in performance. And you get additional benefits for each existing SM that is upgraded to a Force 4525L SM.
The Cambium Force 4525L Feedhorn is an innovative approach that makes network migration easier and more cost effective. Operators can upgrade their existing dish SMs (Force 300-25, Force 300-25L, Force 200, Force 200L) with faster installations, lower price points, and reduced shipping/storage costs, while eliminating unnecessary waste.
The Cambium Force 4525L Feedhorn is the same radio as the Force 4525L with the same performance specifications and physical size, as well as a 3-year warranty. It just eliminates the parts you don’t need when upgrading an existing dish-based SM. When you deploy the Feedhorn, you reuse the existing dish, mounting bracket, power supply, and line cord. There’s no need to realign the dish. It’s an environmentally friendly approach because the existing hardware isn’t scrapped. And the Feedhorn is lower priced than the full Force 4525L SM that includes the dish and accessories. It also takes up less than half the space of full dishes, saving on shipping and storage costs.
Features
- Compatible with existing Force 300-25 subscriber kits
- Replace just the feedhorn on existing ePMP™ Subscriber Modules (SM) without aligning a new dish
- Simplify installations, reduce cost, and reduce waste for upgrades from previous generation ePMP SMs
- High capacity and latencies less than 5 ms when using ePTP technology
- Interoperability with the ePMP 4500, which uses MUMIMO to achieve up to 4 Gbps per sector by transmitting to 4 ePMP 4500 SMs simultaneously
- Multiple levels of QoS (Quality of Service) for voice, video, and data applications
- Security features that meet requirements of enterprise, industry, government, and service provider users
- Management by Cambium’s cnMaestro™ Network Management System for easy provisioning, monitoring, and upgrades
- Network planning with LINKPlanner and cnHeat
- Cambium’s 3-year hardware warranty and support
| Details | |
|---|---|
| Product Code | C050940F051A |
| Channel Width | MHz 20 / 40 / 80 MHz |
| Proprietary Physical Layer | 2x2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide band operation 5150–5920 MHz (Allowable frequencies and bands are dictated by individual country regulations) |
| MAC Layer (Media Access Control) | Cambium proprietary |
| Ethernet Interface | 100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, cnMaestro |
| VLAN | 802.1Q with 802.1p priority |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -56 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| QoS (Quality of Service) | Three level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast and station priority, MIR/CIR* support |
| Surge Suppression | 1 joule integrated |
| Environmental | IP55 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | 1.88Kg (4.14 lb) |
| Wind Survival | 200 km/hr (124 mi/hr) |
| Dimensions (Dia x Depth) | 472 x 472 x 281 mm (18.5 x 18.5 x 11.0 in) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 in) |
| Power Consumption | 13W |
| Input Voltage | Passive PoE 13–30V |
| Details |
|---|
cnMaestro
Wi-Fi 6 , Proprietary
RJ45
5GHz
PoE (non standard)
