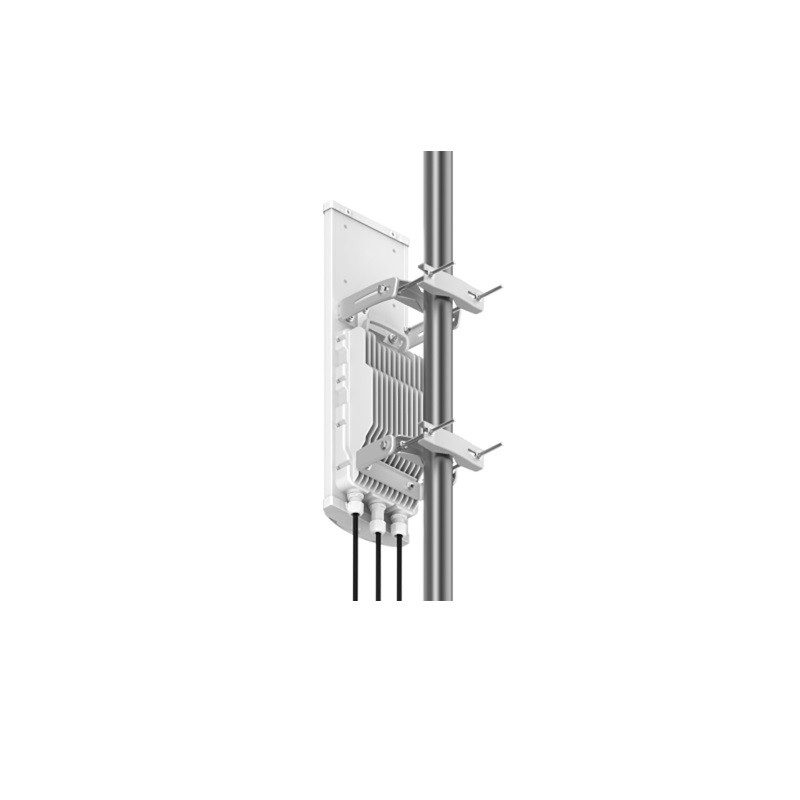

Cambium 6 GHz PMP 450v 4x4 Access Point with Integrated 90 Degree Sector.
Deliver higher performance to business and residential locations while extending the life of deployed PMP 450 gear. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth. Broadband service providers seeking to increase capacity and service levels can use the PMP 450v to easily upgrade an existing PMP 450 network by leveraging the higher capacity of the 6 GHz spectrum.
Deliver higher performance to business and residential locations while extending the life of deployed PMP 450 gear. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth. Broadband service providers seeking to increase capacity and service levels can use the PMP 450v to easily upgrade an existing PMP 450 network by leveraging the higher capacity of the 6 GHz spectrum.
Features
- 5 GHz to 7 GHz Support in Same Hardware, easily stock and maintain a single SKU, maintain existing 5 GHz deployment, and expand into 6 GHz
- Backward and Forward Compatibility, leverage existing platform investment, and migrate gracefully to the next generation
- Ultra-Wide-Band Support (Up to 2 x 100 MHz Channels in future software release), achieve a total capacity increase with more bandwidth to offer
- Dual Sector Mode, operate 2 carriers independently (i.e., one 5 GHz and one 6 GHz) with increased flexibility
- Carrier Aggregation, achieve flexibility in spectrum usage with 2 carriers on different bandwidths (e.g., when 5 GHz may be congested requiring smaller channels, and 6 GHz can utilize larger channels)
Details | |
---|---|
Product Code | C060045A401A |
MAC (Media Access Control) Layer | Cambium Networks proprietary |
Physical Layer | 2x2 MIMO OFDM |
Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro™ |
MTU | 1700 bytes |
VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
Subscribers Per Sector | Up to 238 |
ARQ | Yes |
Maximum Deployment Range | Up to 40 mi (64 km) |
Latency | 3–5 ms, typical |
GPS Synchronization | Yes, via embedded GPS, or Cambium Sync |
Quality of Service | Diffserve QoS |
Integrated Sector Peak Gain | 17 dBi ±1 dBi integrated 90°/120° sector |
3 dB Beamwidth – Azimuth | ±45° (±60° @ 6 dB roll-off) |
3 dB Beamwidth – Elevation | 5° with null fill |
Electrical Downtilt | 2° |
Polarization | Dual linear, H+V |
Front-to-Back Isolation | >30 dB |
Cross Polarization | 15 dB |
VSWR | 2:1 |
Maximum Transmit Power | +28 dBm (MIMO, combined H+V) for 5 GHz, +20 dBm for 6 GHz (may be limited by regulations) |
Maximum EIRP | +45 dBm combined output in 5 GHz, +37 dBm in 6 GHz (may be limited by regulations) |
Power Control | ATPC (Automatic Transmit Power Control) at system level, all subscribers implement ATPC |
Mean Time Between Failure | >40 Years |
Dust & Water Ingress Protection Rating | IP55 |
Temperature/Humidity | -40°C to +60°C (-40°F to +140°F), 0%–100% condensing |
Weight | 6.3 kg (13.9 lb), 9.1 kg (20 lb) with bracket |
Wind Survival | 200 kph (124 mph) |
Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
External Icing | NEMA 250-2003 Section 5.6 |
Dimensions (H x W x D) | 673 x 222 x 134 mm (26.5 x 8.75 x 5.3 in) |
Power Consumption | 45W typical, 55W max, using aux port PoE for another device will increase power draw |
Input Voltage | 48-59 VDC, 802.3bt type 4 class 8 (also accepting passive PoE) |
Details |
---|
cnMaestro
Proprietary
RJ45
5GHz , 6-38GHz
POE (802.3bt)
