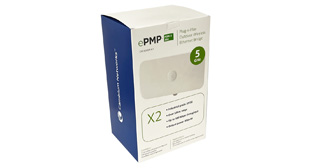

Cambium ePMP Force 300-16 5 GHz Wireless Bridge in a Box, Plug-n-Play Outdoor 5 GHz Wireless Ethernet Bridge!
Thousands of small businesses and residential users are using Bridge-in-a-Box to wirelessly extend their networks by simply connecting point A to point B. Each Bridge-in-a-Box comes with two wireless radio modules and power supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one from 50 feet to 6 miles away (20 meters to 10 kilometers). The modules are extremely easy to deploy as they come pre-configured and pre-paired to connect.
The ePMP Force 300-16 Bridge in a box supports ePTP proprietary protocol for longer range, lower latency, and greater performance WiFi Bridging.
Thousands of small businesses and residential users are using Bridge-in-a-Box to wirelessly extend their networks by simply connecting point A to point B. Each Bridge-in-a-Box comes with two wireless radio modules and power supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one from 50 feet to 6 miles away (20 meters to 10 kilometers). The modules are extremely easy to deploy as they come pre-configured and pre-paired to connect.
The ePMP Force 300-16 Bridge in a box supports ePTP proprietary protocol for longer range, lower latency, and greater performance WiFi Bridging.
Features
- Plug and play Bridge-in-a-Box
- 5GHz 802.11ac Wave 2 Radios
- Up to 500 Mbps
- Extend a local network to a remote building
- Extend your Wi-Fi link to a new location
- Provide a cost-effective solution to backhauling
- CCTV networks
- Support any application requiring network extension!
- IP55 Outdoor Rated
- 3 Year Standard Warranty
| Details | |
|---|---|
| Product Code | CNF300BR-KIT |
| Output Power | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Channel Width | 20 / 40 / 80 MHz |
| Proprietary Physical | Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM) |
| Frequency Range | Wide Band Operation 4910–5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Input Voltage | 30 V Passive PoE (14-30 V DC Input) |
| Max Power consumption | 12 W (Up to 15 W in extreme cold temperatures when heater is activated.) |
| Antenna | 16 dBi |
| Wind Survival | 180 km/hour |
| Dimensions | 124 x 251 x 119 mm with mounting bracket attached |
| Pole Diameter Range | 25 - 41 mm with included clamp |
| Weight | 0.50 kg (Includes mounting bracket) |
| Environmental | IP55 |
| Details | |
|---|---|
| Power Supply | 3 Pin Clover Lead |
| Power Injector | Included |
| Mounting Hardware | Adjustable Pole Mount Included |
RJ45
cnMaestro
5GHz
Proprietary
PoE (non standard)
