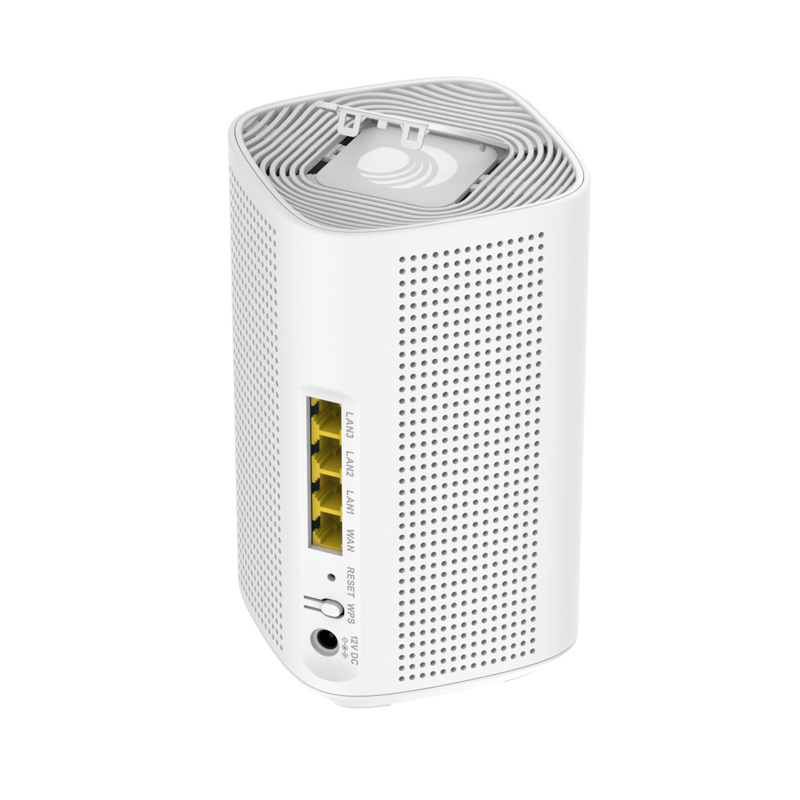

Cambium RV22 Dual Band Wi-Fi 6 Home Mesh Router

$286.00 +GST

24 In Stock

SKU: RV22

Quantity	Price
1 - 4	$286.00
5 - 9	$278.85
10 - 19	$271.70
20+	$257.40

Data Sheet

Cambium RV22 Dual Band Wi-Fi 6 Home Mesh Router

Warranty

Back to: Indoor Access Points

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

Cambium RV22 Dual Band Wi-Fi 6 Home Mesh Router.

Cambium Networks has introduced a new residential Wi-Fi solution that promises to reduce support costs and improve the subscriber experience. The RV22 Wi-Fi 6 Home Mesh router is the cornerstone of this solution, featuring highly efficient antennas specifically designed for optimal performance. This router supports automatic mesh linking, allowing multiple RV22 units to connect to a single high-performance Wi-Fi network with symmetrical mesh links up to 2.4 Gbps. Additionally, the Cambium RV22 boasts a sleek design with a clear plastic window covering a brandable area on the top of the AP.

The Subscriber App includes popular tools, including family time, content filter, bedtime schedules, speed test, optimized Wi-Fi, and more. With its consumer-friendly dashboard and convenient tools, the brandable Subscriber App will become vital to the subscriber experience.

Cambium Networks cnMaestro cloud management provides network provisioning, device management, remote diagnostics, and a new subscriber workflow designed to simplify the steps to create services and link the subscriber and in-home access points.

Features

Configuration and management by Cambium cnMaestro Response Center and Subscriber App
Free management via cnMaestro Essentials, subscription required for cnMaestro X
802.11a/b/g/n/ac, ax
Wi-Fi 6 3x3:2 (5GHz), 2x2:2 (2.4GHz)
4 x GbE RJ45 interface

Details
Product Code	RV22ANA00-RW
Licensing	Free management via cnMaestro Essentials, paid subscription available for cnMaestro X
Support Channels (ROW)	Ch 1–14, 36–64, 100–144, 149–173, Individual country limits may apply
Radios	5 GHz: 802.11a/n/ac/ax, 3x3:2, 2.4 GHz: 802.11 b/g/n/ax, 2x2:2
MAX PHY Rate	5 GHz radio: 2.4 Gbps, 2.4 GHz radio: 600 Mbps
Ports	4 x IEEE 10/100/1000 Mbps Ethernet
Antenna Type	Internal, vertically polarized
Antenna Gain	5 GHz: up to 5 dBi, 2.4 GHz: up to 5 dBi
Conducted Tx Power	5 GHz 3x3:2 radio: 25.7 dBm, 2.4 GHz 2x2:2 radio: 24 dBm
Power	12VDC, 1.2A DC power jack 2.5mm x 5.5mm CP
Physical Dimension	100mm x 100mm x 175mm, 400g
Environmental	0C - +40C ambient op temp, 0C - +70C storage temperature, 10% to 90% RH non-condensing
Certifications	FCC, CE, AU, NZ, UK
WLAN	64 clients, 2 SSIDs
Security	Open, WPA2 PSK, 802.11w PMF
Mesh	Automatic discovery and setup. Continuous mesh quality monitor with LED indicator
Mesh Modes	Mesh star, mesh linear, or wired mesh. Not compatible with Cambium enterprise Wi-Fi APs
RF Management	Auto-RF with auto-channel selection and frequency coordination with FWA subscriber module. RF monitor with chn utilization/noise/RF interference/errors
Network	NAT logging firewall/router, DHCP/DNS server
Band Steering	Yes
Subscriber QoS	WMM
Fast Roaming	802.11r
Router-to-Internet Speed Test	Automatically runs after the subscriber tests App-to-internet speed. Scheduled tests configured in the Subscriber workflow.
CAF2-Compliant Speed Test	Subscriber random selection, tests and report for CAF2-compliant network tests (not available at first release).
Subscriber App Tools	Web content filter, Family time, Speed test, Optimize Wi-Fi, Guest Wi-Fi, Manage multiple sites, Invite family members to manage, Dashboard view of network, devices, security events
DNS Filter	Auto, manual, and proxy (default mode). DOH will be blocked; DNS over UDP will be used
Standards	802.11ax, up to 3x3:2. 20/40/80/160 MHz, 802.11a/b/g/n/ac wave 2, MU-OFDMA, MU-MIMO, TWT, MIMO, VHT MCS rates, 16/64/256/1024/4096-QAM, Transmit Beam steering, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM. IEEE 802.11d/e/h/i/k/r/u/v/w
