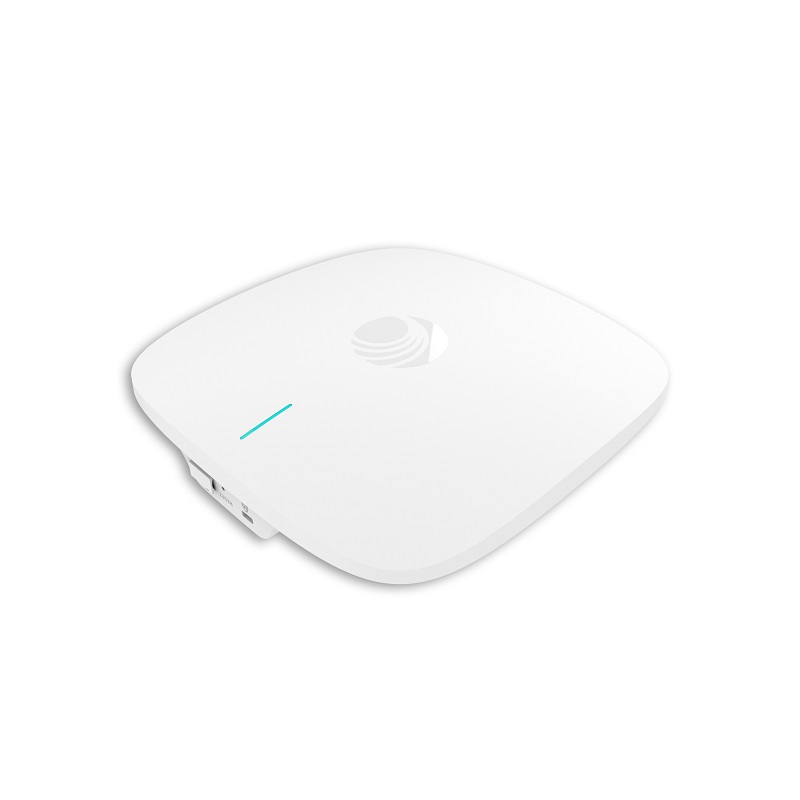

Cambium X7-35X Indoor Tri-band Wi-Fi 7 AP 2X2 6GHz radio enabled with 2.5GbE

$1,218.00 +GST

4 In Stock

SKU: X7-35X

Quantity	Price
1 - 4	$1 218.00
5 - 9	$1 187.55
10 - 19	$1 157.10
20+	$1 096.20

Data Sheet

Cambium X7-35X Indoor Tri-band Wi-Fi 7 AP 2X2. 6GHz radio enabled 2.5GbE

Warranty

Back to: Indoor Access Points

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

Cambium X7-35X (X7-35X-0A06-RW) Indoor Tri-band Wi-Fi 7 Access Point defines the next generation of wireless networks and wirelessly connected real-time applications.

The Cambium Networks X7-35X Wi-Fi 7 Indoor Access Point supports 320 MHz band width, 4K QAM, and multi-link operation (MLO). New applications, such as spatial computing (AR/VR), 8K HD video, and real-time generative world gaming, will require the ultra-fast speed and low latency of Wi-Fi 7 and the clean spectrum of 6 GHz. Part of the Cambium ONE Network solution, the X7-35X delivers a self-healing and self-optimizing RF network, automated network troubleshooting, and application control.

The new mounting assembly ships with the unit and allows an aesthetically pleasing final finish installation.

Easily mount the X7-35X to any of five common wiring junction boxes, any flat surface, or a suspended ceiling tile or T-bar.

The Cambium Networks X7-35X can be managed by Cambium’s cnMaestro™ X (Cloud or On-premises) and cnMaestro Essentials (Cloud or On-premises). This management flexibility allows the X7-35X to be tailored to meet end-user or managed service provider requirements with application policy controls, location services, BYOD security segmentation, or part of a wireless fabric architecture spanning outdoor broadband, Ethernet switching, and enterprise Wi-Fi.

Features

Tri-radio/tri-band Wi-Fi 7
6 GHz radio, 2x2, supports 802.11ax/be
5 GHz radio, 2x2, supports 802.11a/n/ac/ax/be
2.4 GHz radio, 2x2, supports 802.11b/g/n/ax/be
LPI (low power indoor) mode
Up to 9.2 Gbps aggregate PHY rate
1 x 2.5 GbE RJ45
802.3bt or 802.3at PoE powered device (PD)
Integrated IOT radio support for Zigbee®, BLE, Thread, Matter protocol
Multi-functional mount assembly included
Managed by cnMaestro™
Limited lifetime warranty

Details
Product Code	X7-35X-0A06-RW
Radios	2.4 GHz 2x2:2 with 802.11 b/g/n/ax/be, 5 GHz 2x2:2 with 802.11 a/n/ac/ax/be, 6 GHz 2x2:2 with 802.11 ax/be
BLE and Zigbee	Built-in BLE or 802.15.4 radio, Max Transmit power 20 dBm with the integrated 5 dBi omnidirectional antenna gain, Matter and Thread support to be added in future releases
Antenna	Omnidirectional internal antennas (Peak gain), 2.4 GHz: 5 dBi, 5 GHz: 6 dBi, 6 GHz: 6 dBi, BLE and Zigbee: 5 dBi
Maximum Radio Tx Power (combined Tx power across all Tx chains)	2.4 GHz: 24 dBm, max EIRP: 29 dBm; 5 GHz: 25 dBm, max EIRP: 31 dBm; 6 GHz: 25 dBm, max EIRP: 31 dBm
MIMO Support	2x2 (2.4 GHz, 5 GHz, and 6 GHz) SU-MIMO, 2x2 (2.4 GHz, 5 GHz, and 6 GHz) MU-MIMO both in UL and DL direction
USB Interface	1 USB 2.0 type A port, max 1.5 W power supply
Ethernet Interface	1 100 Mbps / 1 Gbps / 2.5 Gbps PoE port
Power Max power consumption	25.5W (802.3at), Typical power consumption with BLE / 802.15.4 radio enabled: 10.6W, LLDP power negotiation support
Dimensions	209.6 mm x 209.6 mm x 45 mm
Weight	935 gm
Mount Options	Drop ceiling T-bar, ceiling tile, 4" square electrical box, 4" round box, NA single gang box, EU single gang box, wall mount
Physical Security	Kensington lock slot
LEDs	Multicolor status LED, Blue: Managed from cnMaestro, Green: Up and running, not managed from cnMaestro, Amber: Booting
Ambient Operation Temperature	0ºC - + 50ºC
Storage Temperature	-20ºC - + 70ºC
Operating Humidity	95% RH non-condensing
Reliability	MTBF 8,29,316 hours at +25ºC operating temperature
