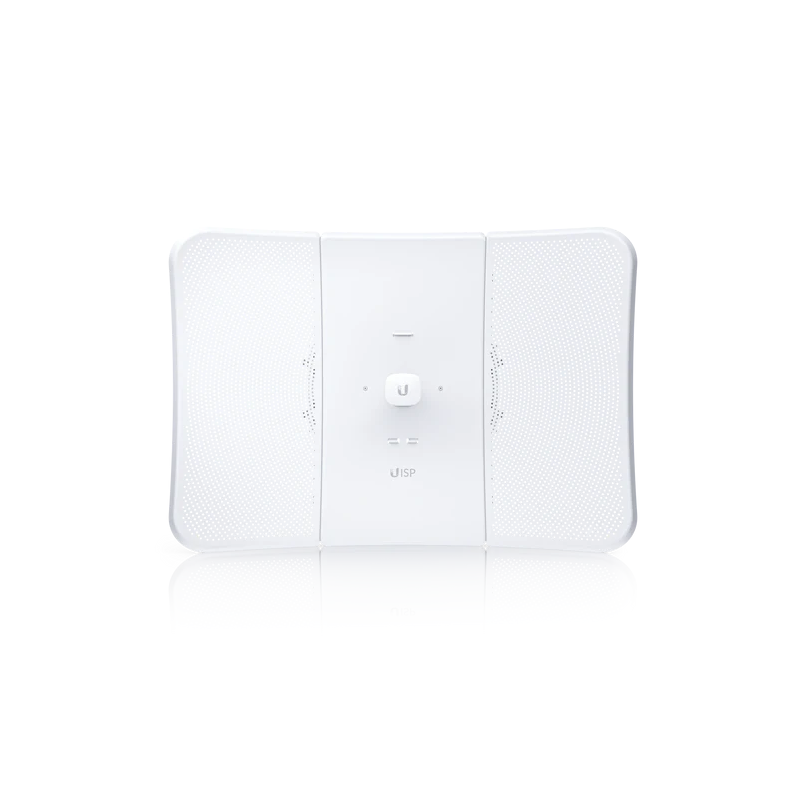

Ubiquiti UISP airMAX LiteBeam AC 5GHz 29dBi Extreme Range wireless Point to Point CPE/Bridge 450+ Mbps Radio. The airMAX LiteBeam AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.
Features
- Proprietary airMAX ac chipset
- Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
- High-gain antenna with InnerFeed® technology
- Establishes high-speed, extremely-long-distance links
- Integrated GPS
- Link planning support via ISP Design Center
- Dedicated management radio for quick device setup via the UISP Mobile app
| Details | |
|---|---|
| Manufacturer's Code | LBE-5AC-XR |
| Maximum throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) |
| Operating frequency | 5.15 to 5.85 GHz - Depends on regulatory region |
| Max. conducted TX power | 25 dBm |
| Management radio | 2400 - 2483.5 MHz |
| Channel bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
| OS | airOS |
| Modes | PtMP, PtP |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView, speed test, alignment, discovery, ping, traceroute, constellation |
| Management interface | Dedicated management radio for quick device setup via the UISP Mobile app, WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| Networking interfaces | (1) GbE RJ45 port |
| Button | Factory reset |
| LEDs | Power/ethernet |
| RF connections | Internal |
| Max. power consumption | 7W |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24VDC, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22-26VDC |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Details | |
|---|---|
| Power supply | 24VDC, 0.5A Gigabit PoE adapter |
| Pole Mounting System | Included |
RJ45
5GHz
1Gbps
Wi-Fi 5 , Proprietary
PoE (non standard)
