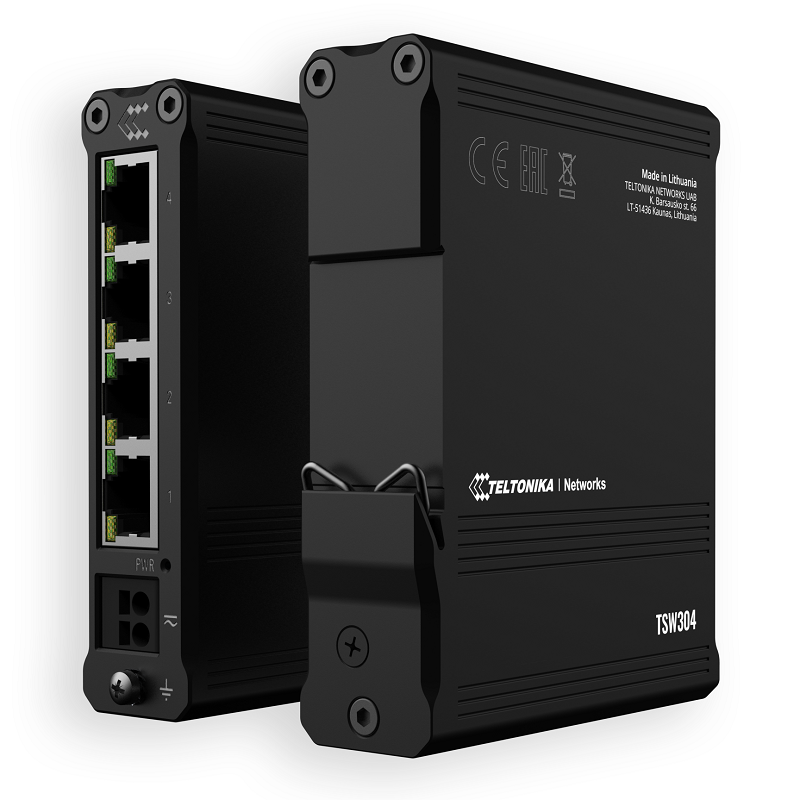

Teltonika 4+1 port unmanaged gigabit network switch, DIN RAIL Mount, Heavy Duty Shock Resistant design. TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount. Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.
Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.
10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput. 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).
Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.
10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput. 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).
Features
- Built-in, integrated DIN mounting
- 7-57 V DC Wide range of supported power supply voltages
- 4 x Gigabit Ethernet with speeds of up to 1000 Mbps
- A wide operating temperature range from -40 °C TO 75 °C
- Rugged Shock resistant designed aluminum housing
- Power Supply Not Included
Details | |
---|---|
Product code | TSW304 |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
Bandwidth (Non-blocking) | 8 Gbps |
Packet buffer | 128 KB |
MAC address table size | 2K entries |
Jumbo frame support | 9216 bytes |
Power Connector | 2-pin power socket (Power Supply Not Included) |
Input voltage range | 7 - 57 VDC; 9 - 40 VAC |
PoE (passive) | Passive PoE input on port No. 1 |
Power consumption | Idle: 0.26 W / Max: 1.44 W |
Status LEDs | 1 x Power LED, 8 x LAN status LED’s |
Casing material | Aluminum housing |
Dimensions (W x H x D) | 102x25x81.5 mm |
Weight | 210 g |
Mounting options | DIN rail mounting |
Operating temperature | -40 C to 75 C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
Regulatory | CE, REACH, RoHS, WEEE, EN IEC 62368-1:2020+A11:2020, UKCA, FCC, IC, CB, RCM |
Details | |
---|---|
Includes | 1 x TSW304, QSG (Quick Start Guide) |
