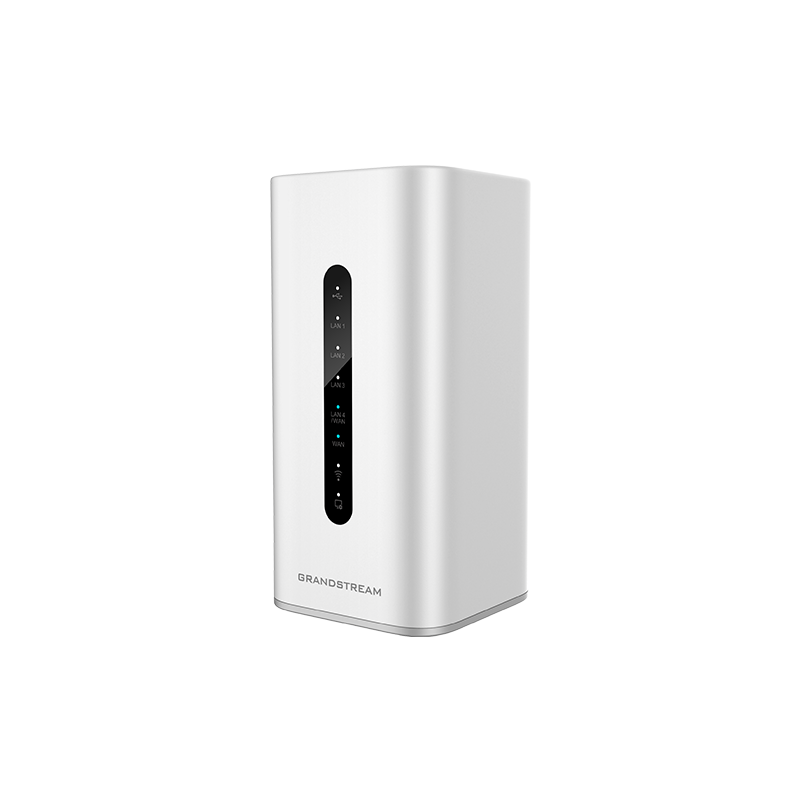

Grandstream GWN7062 Enterprise Dual-WAN Long Range Wi-Fi 6 (802.11ax) Gigabit VPN Router. The GWN7062 is a secure dual-band router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices, and remote workers, the GWN7062 provides dual-band 2×2 MU-MIMO with DL/UL OFDMA technology and supports wireless Mesh networking and wired AP connections. It features a powerful 64-bit 1.2GHz quad-core processor to provide Wi-Fi speeds up to 1.77 Gbps with up to 256 wireless devices, allowing the GWN7062 to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more.
It supports VPN to allow remote employees to securely connect to the corporate network from home or branch offices. The GWN7062 also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. To ensure easy installation and management, the GWN7062 includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. By combining accelerated Wi-Fi speeds, mesh networking, and wired AP connections with advanced features including VPN, beamforming technology, and intelligent QoS, the GWN7062 is the ideal router for a growing home network.
It supports VPN to allow remote employees to securely connect to the corporate network from home or branch offices. The GWN7062 also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. To ensure easy installation and management, the GWN7062 includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. By combining accelerated Wi-Fi speeds, mesh networking, and wired AP connections with advanced features including VPN, beamforming technology, and intelligent QoS, the GWN7062 is the ideal router for a growing home network.
Features
- Dual-band 2×2 MU-MIMO with DL/UL OFDMA technology
- 64-bit 1.2GHz quad-core processor
- Qualcomm Wi-Fi Chipset
- Provides Wi-Fi speeds up to 1.77 Gbps to support up to 256 wireless devices
- Up to 32 total SSIDs, 16 per radio
- 1x Gigabit Ethernet WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports; 1x USB 3.0 port, 1x Reset button, 1x Sync button
- Embedded controller can manage itself and up to 50 Grandstream GWN Series APs
- Supports Mesh networks with Grandstream access points to provide network expansion
- Built-in VPN support
- Secure cloud provisioning through GWN.Cloud
| Details | |
|---|---|
| Manufacturer's Code | GWN7062 |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Wi-Fi Chipset | Qualcomm |
| Antennas | 4 individual internal antennas, 2 per band, 2.4GHz: maximum gain 4.5dBi, 5 GHz: maximum gain 5dBi |
| Frequency Bands | 2.4GHz radio: 2400 – 2483.5 MHz, (2412-2472MHz are channel central frequency range; 2400-2483.5MHz is Frequency band), 5GHz radio: 5150 - 5850 MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz, 5G: 20, 40 and 80 MHz |
| Wi-Fi and System Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control, lockdown via digital signatures, unique security certificate and random default password per device MIMO2×2:2 2.4GHz 2×2:2 5GHz |
| Coverage Range | Up to 175 meters |
| Maximum TX Power | 5GHz: 26dBm 2.4GHz: 27dBm |
| Maximum Receiver Sensitivity | 2.4GHz: -97dBm, 5GHz: -93dBm |
| Memory and NAT Sessions | 512MB RAM, 120K NAT sessions |
| NAT Routing & IPSec VPN Performance | 2 Gbps NAT routing and 850Mbps IPSec VPN performance |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Concurrent Wireless Clients | Up to 256 wireless clients |
| Network Interfaces | 1x Gigabit Ethernet WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports |
| Auxiliary Ports | 1x USB 3.0 port, 1x Reset button, 1x SYNC button |
| Mounting | Desktop |
| LEDs | 1 tri-color LED and 7 single-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG |
| VPN | Client: L2TP, PPTP, IPSec, OpenVPN, Server: IPSec, OpenVPN |
| Network Management | GWN7062 embedded controller can manage it self and up to 50 GWN Aps, GWN.Cloud offers a free cloud management platform for unlimited GWN7062 routers and GWN APs (coming soon) |
| Power and Green Energy Efficiency | Universal power adaptor included, Input 100-240VAC 50-60Hz Output: 12VDC 1.5A (18W) |
| Environmental | Operation: 0°Cto 50°C, Storage: -30°C to 60°C, Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 95mm(L)x95mm(W)x193mm(H); Unit Weight: 690g |
| Compliance | FCC, CE, RCM, IC, UKCA |
| Details | |
|---|---|
| Included | GWN7062 Router, Universal Power Supply, Network Cable, Quick Installation Guide |
GDMS/GWN Cloud
1Gbps
Wi-Fi 6
RJ45
2.4GHz , 5GHz
DC 12V/1.5A
