Grandstream 2x2 802.11ax AX3000 Wi-Fi 6 AP with Integrated Gigabit Ethernet Switch

$117.00 +GST

Out of Stock

SKU: GWN7604

Quantity	Price
1 - 4	$117.00
5 - 9	$114.08
10 - 19	$111.15
20+	$105.30

ETA: 23-12-2024

Data Sheet

Grandstream 2x2 802.11ax AX3000 Wi-Fi 6 AP with Integrated Gigabit Ethernet Switch, GWN7604

Warranty

Notify Me

Back to: Indoor Access Points

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

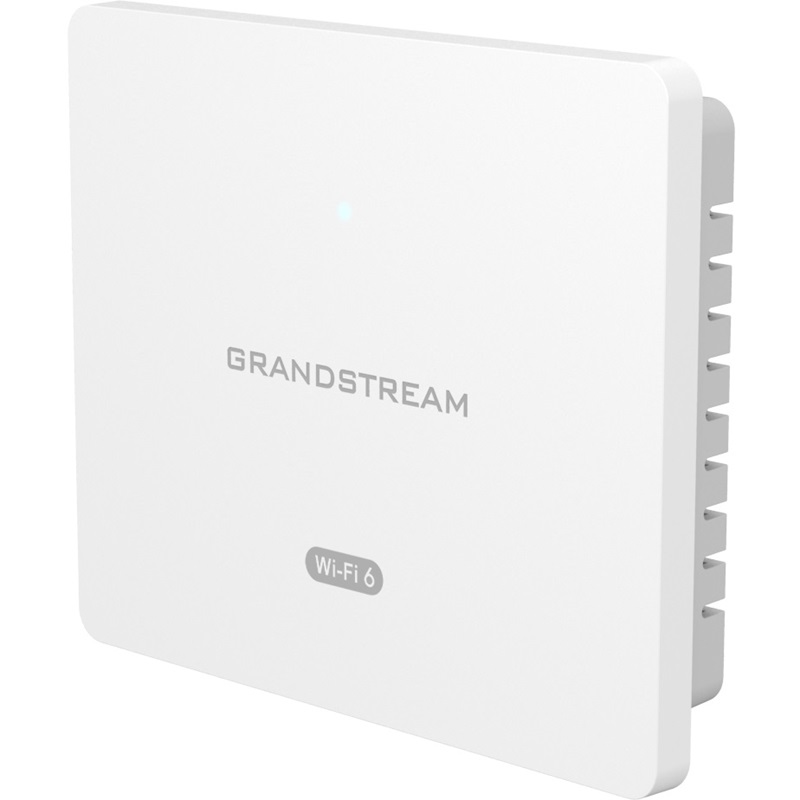

Grandstream GWN7604 2x2 802.11ax AX3000 Wi-Fi 6 AP with Integrated Gigabit Ethernet Switch

The GWN7604 is a compact AX3000 Wi-Fi 6 access point designed for small businesses, hotels, and home offices. It provides versatility through four Gigabit ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point, and two ports with PSE that can provide PoE and a network connection to other devices. The GWN7604 offers dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO technology and a sophisticated antenna design to support 256 concurrent clients and up to 100-meter coverage range.

This Wi-Fi access point can be easily installed and managed using GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platforms. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 3Gbps wireless throughput, and four Gigabit network ports, the GWN7604 is the ideal Wi-Fi access point for small-to-medium sized deployments that require flexibility.

Features

3Gbps aggregate wireless throughput, 4x Gigabit wireline ports
Up to 100 meters coverage range
Self power adaptation upon auto detection of PoE/PoE+ and PSE
Supports up to 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications

Details
Manufacturer's Code	GWN7604
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ax
Antennas	2 x dual-band internal antennas,1x 5G internal antenna Antenna1, 2.4G gain 3.0dBi, 5G gain 3.5dBi Antenna2, 2.4G gain 3.5dBi, 5G gain 3.0dBi 5G Antenna, gain 4.5dBi
Frequency Bands	2.4 GHz Radio: 2412 – 2483.5 MHz, 5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth	2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80, and 160 MHz
System Security	WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO	2×2:2 2.4GHz, 3×3:2 5GHz
Coverage	Range Up to 100 meters
Maximum TX Power	5GHz: 26dBm, 2.4GHz: 24dBm
Maximum RX Sensitivity	5GHz: -92dBm, 2.4GHz: -96dBm
SSIDs	32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients	256
Network Interfaces	1 x 10/100/1000M uplink Ethernet port with POE/POE+, 2 x 10/100/1000M Ethernet port with PSE, 1 x 10/100/1000M Ethernet port
Auxiliary Ports	1x Reset Pinhole, 1x Kensington lock
Mounting	Indoor wall mount, kits included
LEDs	1x tri-color LEDs for device tracking and status indication
Network Protocols	IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS	802.11e/WMM, VLAN, TOS
Network Management	Embedded controller can manage up to 50 local GWN APs, GDMS Networking offers a free cloud management platform for unlimited GWN APs, GWN.Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency	PoE 802.3af/ 802.3at, PSE max output: Total 12W power budget for LAN2/LAN3, Maximum Power Consumption: 7.5W (Excluding PoE Output)
Environmental	Operation: 0°C to 45°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Compliance	FCC, CE, RCM, IC
