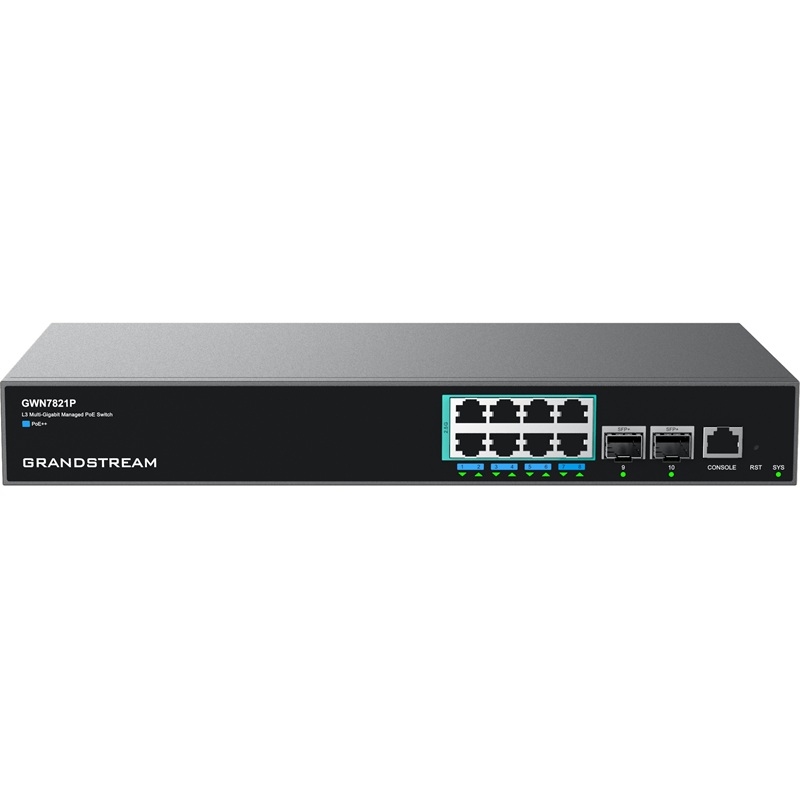

Grandstream GWN7821P Enterprise Layer 3 Managed Multi-Gigabit PoE Network Switch, 8 x 2.5 GigE PoE++, 2 x 10G SFP+
The GWN7820 series are Layer 3 multi-gigabit managed PoE switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, comprehensive security capabilities against potential attacks, and provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.
GWN7820 series can be managed in a number of ways, including the local Web user interface of the GWN7820 series switch and CLI, the command-line interface, and GWN router. The series is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service and flexible security settings, the GWN7820 series are the best value enterprise-grade managed PoE switches for medium-to-large businesses.
The GWN7820 series are Layer 3 multi-gigabit managed PoE switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, comprehensive security capabilities against potential attacks, and provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.
GWN7820 series can be managed in a number of ways, including the local Web user interface of the GWN7820 series switch and CLI, the command-line interface, and GWN router. The series is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service and flexible security settings, the GWN7820 series are the best value enterprise-grade managed PoE switches for medium-to-large businesses.
Features
- GWN7821P: 8x 2.5 Gigabit ports, 2 SFP+ ports
- Smart power control to support dynamic PoE/PoE+ and PoE++
- Supports deployment in IPv6 and IPv4 networks
- Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
- ACL filtering of data packets by configuring matching rules, processing operations, and time schedules, and provides flexible security access control policies
- Built-in QoS allows for prioritization of network traffic
- Management options include: Embedded controller; GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premise network management platform; CLI management; GWN router
- Supports stacking (pending) for easy management on one interface while creating redundant backup between multiple devices
| Details | |
|---|---|
| Manufacturer's Code | GWN7821P |
| Network Protocols | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x |
| Gigabit Ethernet Ports | 8 x 2.5G |
| SFP+ 10Gigabit Ports | 2 |
| PoE Ports (PoE Models Only) | 8 |
| Total PoE Output (PoE Models Only) | 240W (60W per port) |
| PoE Standards | IEEE 802.3af/at/bt |
| Total Non-Blocking Throughput | 40Gbps |
| Switching Capability | 80Gbps |
| Forwarding Rate | 59.52Mpps |
| Switching, Routing and Multicast | Supports stacking for easy management of multiple devices on one interface while creating redundant backup between devices, 16K static, dynamic, and filtering MAC addresses, 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN, VLAN virtual interface with 9216 MTU, Spanning tree, 32 instances for STP/RSTP/MSTP/PVST(+), Static routing, Dynamic routing, including RIP, RIPng, OSPF, OSPFv3, BGP and IS-IS(pending), Policy routing, IGMP Snooping, MLD Snooping, MVR |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet, Identity authentication including 802.1X and MAC authentication, AAA authentication including RADIUS, TACACS+, Storm control, Port isolation, port security, sticky MAC, Filtering MAC address, IP source guard, DoS attack prevention, ARP inspection, DHCP Snooping, Loop protection including BPDU protection, root protection and loopback protection, Kensington Security Slot (Kensington Lock) support |
| DHCP | DHCP server, DHCP relay, Option 82, 60, 160 and 43 |
| Dimensions | 330mm(L)x175mm(W)x44mm(H) |
| Weight | 1.9Kg |
| Compliance | FCC, CE, RCM, IC |
| Details | |
|---|---|
| Included | 1x Switch, 1x 1.2m AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 1x Power Cord Anti-Trip, 2x Extended Rack-Mounting Kits, 8x Screws (KM 3*6), 1x Quick Installation Guide, 1x Console Cable (Optional) |
GDMS/GWN Cloud
1Gbps
Wi-Fi 5
RJ45 , SFP+
PoE (802.3af/at) , POE (802.3bt)
