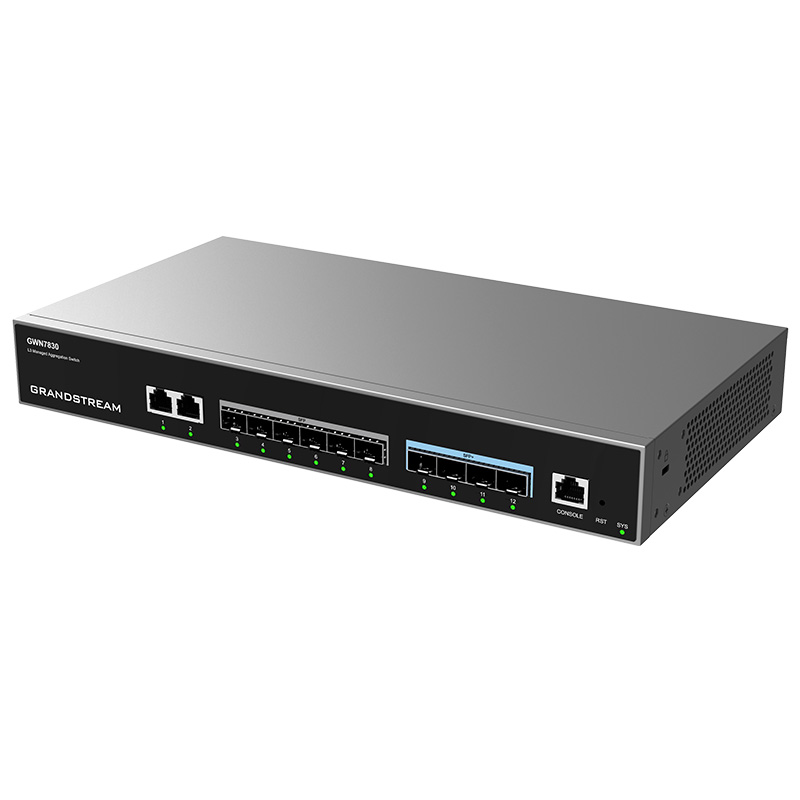

Grandstream GWN7830 Enterprise Layer 3 Managed Aggregation Switch, 6 x SFP, 4 x SFP+, 2 x GigE.
The GWN7830 Series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7830 series can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.
The GWN7830 Series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7830 series can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.
Features
- 2 Gigabit Ethernet ports, 6 Gigabit SFP ports, and 4 10Gigabit SFP+ ports
- Supports deployment in IPv6 and IPv4 networks
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
- Built-in QoS allows for prioritization of network traffic
| Details | |
|---|---|
| Manufacturer's Code | GWN7830-AU |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Gigabit Ethernet Ports | 2 |
| SFP Ports | 6 |
| SFP+ 10Gigabit Ports | 4 |
| Total Non-Blocking Throughput | 48Gbps |
| Switching Capability | 96Gbps |
| Forwarding Rate | 71.424Mpps |
| QoS | Port priority, Priority mapping, Queue scheduling, including SP, WRR, WFQ, SP-WRR, and SP-WFQ, Traffic shaping, Rate limit |
| Switching, Routing, and Multicast | 16K static, dynamic, and filtering MAC addresses, 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN, 6 Link Aggregation, 2K ACL for Ethernet, IPv4, and IPv6, VLAN virtual interface, GVRP (pending), Spanning tree, 32 instances for STP/RSTP/MSTP, Static routing, Dynamic routing, including RIP, RIPng, OSPF and OSPFv3, Policy routing (pending), IGMP Snooping, MLD Snooping, MVR (pending) |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet, 802.1X authentication, AAA authentication including RADIUS, TACACS+, Storm control, Port isolation, port security, sticky MAC, Filtering MAC address, IP source guard, DoS attack prevention, ARP inspection, DHCP Snooping, Loop protection including BPDU protection, root protection(pending) and loopback protection(pending), Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, Wall-Mount or Rack-Mount(rack-mounting kits included) |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Data Transferring LEDs | 12x green-color |
| Fan | Nil |
| Environmental Operation | 0°C to 45°C, humidity 10% to 90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Dimensions | 330mm(L)x175mm(W)x44mm(H) |
| Unit Weight | 1.91Kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
| Details | |
|---|---|
| Included | 1x Switch, 1x 1.2m (10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 1x Power Cord Anti-Trip, 2x Extended Rack-Mounting Kits, 8x Screws (KM 3*6), Quick Installation Guide |
GDMS/GWN Cloud
1Gbps
RJ45 , SFP , SFP+
PoE (802.3af/at)
