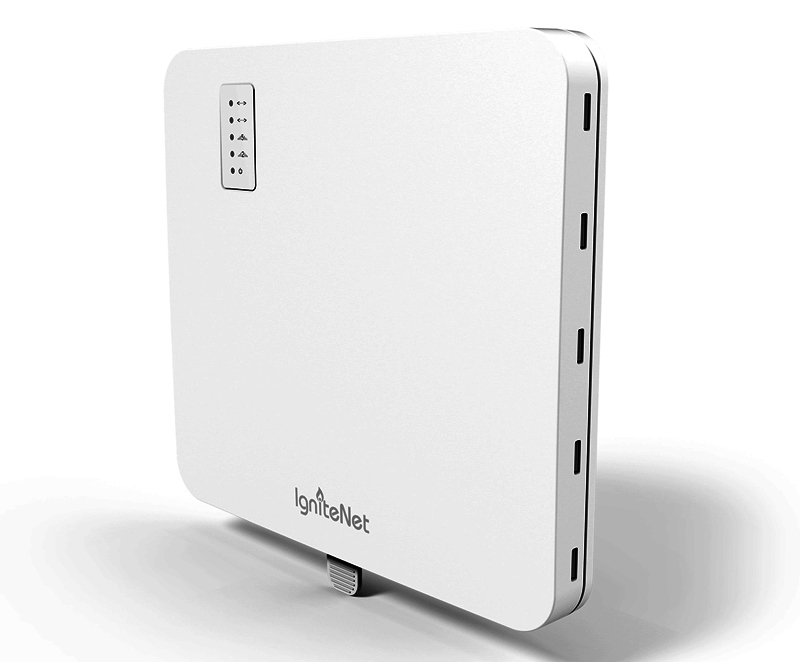

IgniteNet Spark Wave 2 Dualband Enterprise MU-MIMO 2x2 802.11ac AP. This new access-point from IgniteNet is powered by a next-generation quad-core CPU, which allows super-high performance when serving a high number of users. 802.11ac wave2 standard support has MU-MiMo compatibility allowing the AP to transmit data more efficiently and at higher speeds. Dual radio design with two spatial streams per radio enabled lightning-fast speeds up to 1.3 Gbps total capacity.
The IgniteNet Spark AC Wave2 has an innovative indoor/ outdoor design allowing to use the same model in different environments with different brackets available for pole, wall and ceiling mounting options.
The IgniteNet Spark AC Wave2 has an innovative indoor/ outdoor design allowing to use the same model in different environments with different brackets available for pole, wall and ceiling mounting options.
Features
- Innovative indoor/outdoor design
- Stand-alone or Cloud-controlled operating modes
- Dual Band AC1200 Wave2 Operation
- 2 x 2 MU-MiMo High Power TX for long range
- Powerful and affordable Cloud-controller
- Robust Yet Simple Mounting Options
- Hardware based acceleration
- Supports › AP/Client/Client WDS modes with Flexible Bridging and Routing
| Details | |
|---|---|
| Manufacturer's Code | SP-W2-AC1200-AU |
| MAX DATA RATE 2.4/5 GHz | 300/866 Mbps |
| RF PERFORMANCE (TX) | 2.4GHz: 23 dBm @ 6Mbps, 14 dBm @ 300Mbps, 5GHz: 26 dBm @ 6Mbps, 18 dBm @ 866Mbps |
| RF PERFORMANCE (RX) | 2.4GHz: -86 dBm @ 6Mbps, -64 dBm @ 300Mbps, 5GHz: -82 dBm @ 6Mbps, -51 dBm @ 866Mbps |
| ANTENNA GAIN | 2.4GHz: 6 dBi – omnidirectional, 5GHz: 8 dBi – omnidirectional |
| HARDWARE FEATURES | 1x Gigabit Ethernet Port (PoE IN, 802.3af), 1x Gigabit Ethernet Port (additional), 1x USB 2.0 Port, Dual flash image support |
| LEDs | Power, Ethernet, Wireless, Health/Status, Controller Status |
| DIMENSIONS (L x W x H ) | 176 x 162 x 33 mm (6.9 x 6.4 x 1.3 inch) |
| WEIGHT | 417g (0.92lb) |
| POWER | 12V/1A DC, 802.3af Power over Ethernet |
| OPERATING ENVIRONMENT | Operating Temperature: -30Cº to +55Cº (-22F to 131F), Store Temperature: -40Cº to 70Cº (-40F to 158F), Operating Humidity: 10 to 90% non-condensing |
| Details | |
|---|---|
| Power Supply | 12V 1A DC plug pack included |
| Mounting | Bracket for wall, ceiling, or desktop included. |
2.4GHz , 5GHz
1Gbps
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , MU-MIMO
PoE (802.3af/at)
