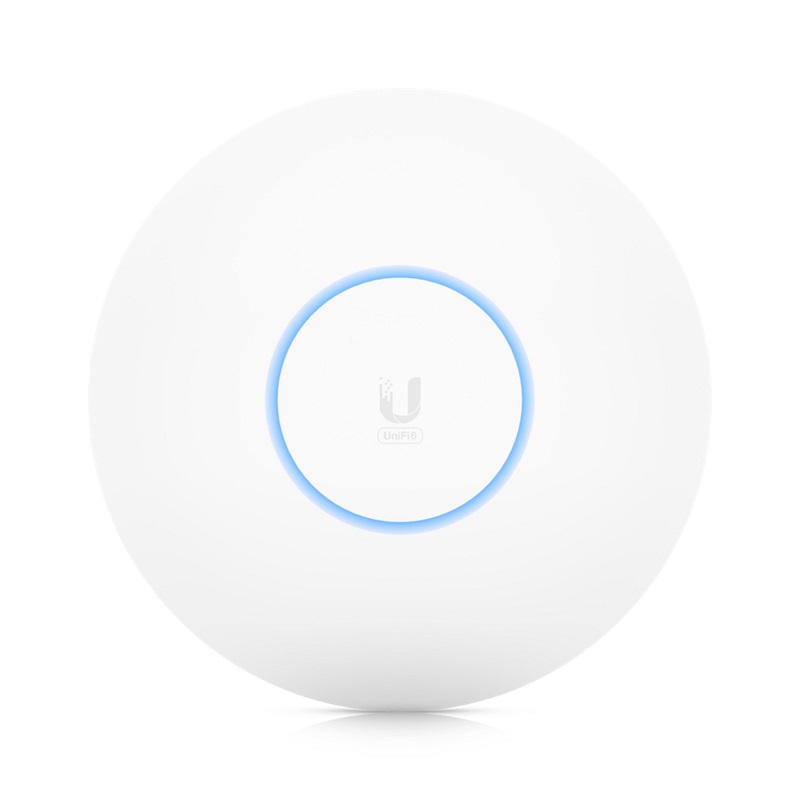

Ubiquiti UniFi 6 Long-Range WiFi 6 802.11ax 4x4 Access Point. U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments. U6-LR WiFi6 delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency WiFi6 technology
- 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
Details | |
---|---|
Manufacturer's Code | U6-LR |
Processor Specs | Dual-Core ® Cortex ® A53 at 1.35 GHz |
Memory Information | 512 MB |
Management Interface | Ethernet |
Networking Interface | (1) 1 Gbps Ethernet RJ45 |
Button | Factory Reset |
LED | RGB |
Power Method | PoE+, Passive PoE (48V) |
Power Supply | UniFi PoE Switch, 48V, 0.5A PoE Adapter (NotIncluded) |
Supported Voltage Range | 44 to 57VDC |
Max. Power Consumption | 16.5W |
Max. TX Power | 26dBm on both 2.4GHz & 5GHz |
MIMO | 4 x 4 on both 2.4GHz & 5GHz |
Throughput Speeds | 2.4 GHz - 600 Mbps, 5 GHz - 2400 Mbps |
Antenna Gain | 2.4 GHz - 4 dBi, 5 GHz - 5.5 dBi |
Wi-Fi Standards | 802.11a/b/g, Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions |
BSSID | 8 per Radio |
VLAN | 802.1Q |
Advanced QoS | Per-User Rate Limiting |
Guest Traffic Isolation | Supported |
Concurrent Clients | 300+ |
Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89") |
Weight | Without Mount: 800 g (1.76 lb), With Mount: 930 g (2.05 lb) |
Enclosure Material | Plastic |
Mount Material | SGCC Steel |
Weatherproofing | IP54 |
Details | |
---|---|
Power Supply | Not Included |
Wall Mount | Wall/Ceiling (Kits Included) |
1Gbps
Wi-Fi 6
RJ45
2.4GHz , 5GHz
PoE (802.3af/at)
