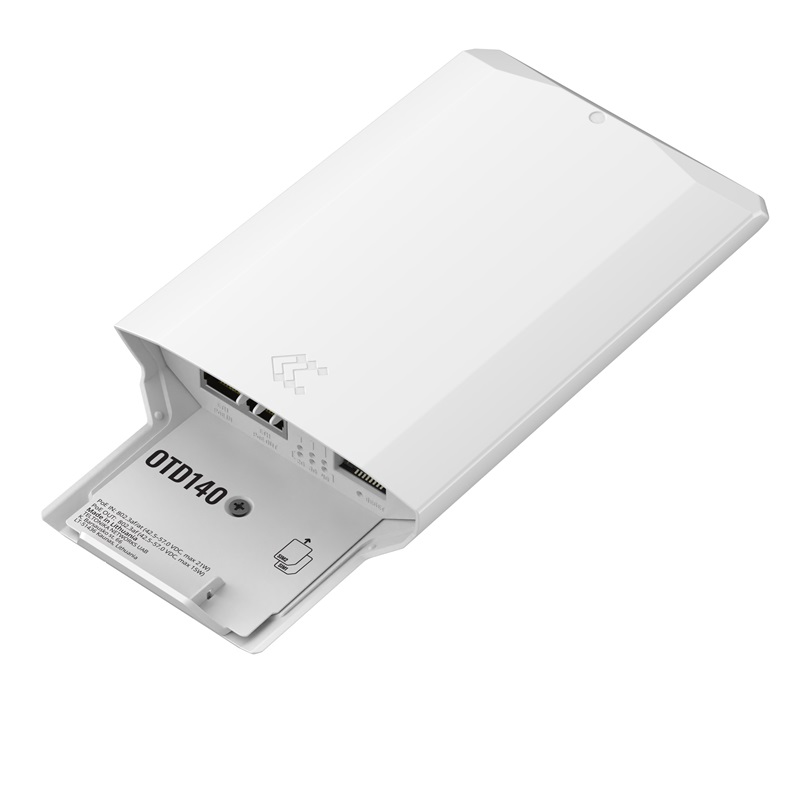

Teltonika OTD140 Outdoor Ethernet to 4G LTE IoT gateway with built in omni directional antenna. The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.
Features
- IP55 durability for outdoor deployment
- 4G LTE (CAT4)
- Dual SIM with auto failover and other switching scenarios
- 1 x PoE-in and 1 x PoE-out port
| Details | |
|---|---|
| Product code | OTD140 |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB |
| FLASH storage | 16 MB |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Supported Bands | 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, 4G (LTE-TDD): B38, B40, B41 |
| Power | RJ45, PoE In, 42.5 – 57.0 VDC |
| Antennas | 2 x Internal antennas |
| Antennas specifications | 1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, gain 3 dBi, omnidirectional, 1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, gain 4.5 dBi, omnidirectional |
| Reset | Reboot/User default reset/Factory reset button |
| Mobile module | 4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list (by country or separate operators) |
| Band management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| LAN | 2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| PoE In ports | 1 x PoE In; 802.3af/at, 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE Out ports | 1 x PoE Out; 802.3af and 802.3at Alternative B |
| PoE Max Power Out | 24 W Max (power supply unit dependent) |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| MONITORING & MANAGEMENT | WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Casing material | Plastic (PC+ASA) |
| Dimensions (W x H x D) | 110 x 49.30 x 235 mm |
| Weight | 855 g |
| Mounting options | Mounting Bracket (for vertical flat surface or pole mounting) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP55 |
| Regulatory | CE, UKCA, EAC, UCRF, RCM |
| Details | |
|---|---|
| Included | OTD140 Router, Router Holder, QSG (Quick Start Guide) |
Contact
RJ45
Teltonika RMS
600-999MHz , 1700-2100MHz , 2.6GHz
1Gbps
4G
PoE (802.3af/at)
