L-com 2.4/5.8 GHz 7/8 dBi Dual Band Omni Antenna N-Female

$224.00 +GST

35 In Stock

SKU: ANT-242

Quantity	Price
1 - 4	$224.00
5 - 9	$218.40
10 - 19	$212.80
20+	$201.60

Data Sheet

L-com 2.4/5.8 GHz 7/8 dBi Dual Band Omni Antenna N-Female

Warranty

Back to: Antennas

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

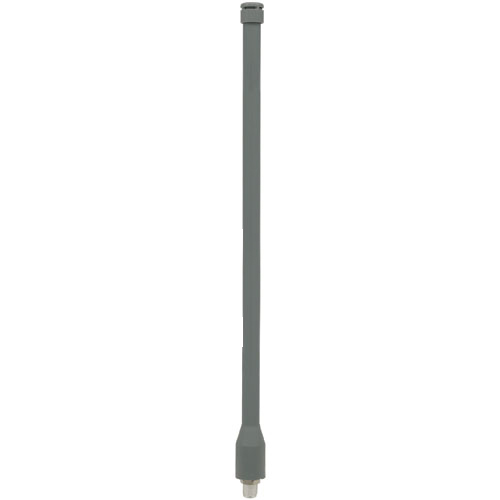

L-com 2.4/5.8 GHz 7/8 dBi Dual Band Omni Antenna N-Female. The HyperLink brand HGV-2458-07U is an economical yet high performance dual band omnidirectional antenna designed for operation in the 2.4 GHz and 4.9/5.8 GHz frequency bands. Compact and lightweight, these antennas are ideally suited multipoint applications where wide coverage is desired.

The HGV-2458-07U antennas feature an integral N-Female bulkhead type connector that can mount through the wall of an equipment enclosure. Also included is a mast mounting kit which consists of a heavy-duty steel bracket and a pair of U-bolts. This kit allows for installations on masts up to 2.0" in diameter. A vented end cap and drain holes in the base help prevent moisture build-up inside the antenna. These features allow the antenna to be mounted in up or down positions.

Features

High Performance in a compact lightweight design
Durable UV-Stable fiberglass radome with vented end cap and drain holes in base
All weather operation
Integral N-Female connector
Includes mast mounting kit
Great for 2.4/4.9/5.1/5.3/5.4/5.8 GHz Wireless LAN systems
IEEE 802.11a/b/g/n and 802.11ac compatible
WiMAX and WiFi applications
Multipoint and mobile applications

Details
Manufacturer's Product Code	HGV-2458-07U
Frequency Range	2400 - 2500MHz / 4900 - 5850MHz
Gain	7/8dBi
Vertical Beamwidth	20deg
Horizontal Beamwidth	360deg
Connector Type	N Female
