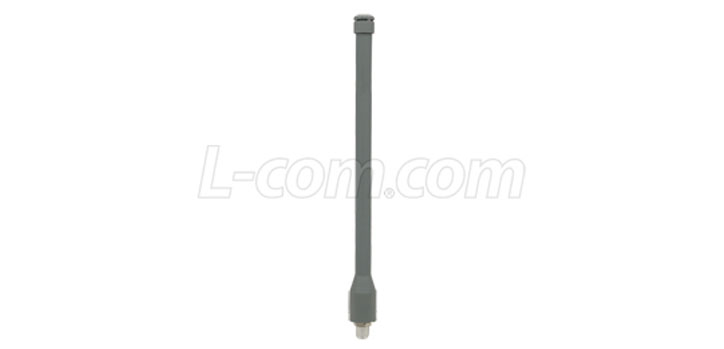

L-Com 2.4/5.8 GHz 5/6 dBi Dual Band Omni Antenna

$214.00 +GST

23 In Stock

SKU: ANT-257

Quantity	Price
1 - 4	$214.00
5 - 9	$208.65
10 - 19	$203.30
20+	$192.60

Data Sheet

L-Com 2.4/5.8 GHz 5/6 dBi Dual Band Omni Antenna

Warranty

Back to: Antennas

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

L-Com 2.4/5.8 GHz 5/6 dBi Dual Band Omni Antenna. The HyperLink brand HGV-2458-05U is an economical yet high performance dual band omnidirectional antenna designed for operation in the 2.4 GHz and 4.9/5.8 GHz frequency bands. Compact and lightweight, these antennas are ideally suited multipoint applications where wide coverage is desired.

The HGV-2458-05U antennas feature an integral N-Female bulkhead type connector that can mount through the wall of an equipment enclosure. Also included is a mast mounting kit which consists of a heavy-duty steel bracket and a pair of U-bolts. This kit allows for installations on masts up to 2.0" in diameter. A vented end cap and drain holes in the base help prevent moisture build-up inside the antenna. These features allow the antenna to be mounted in up or down positions.

Features

High Performance in a compact lightweight design
Durable UV-Stable fiberglass radome with vented end cap and drain holes in base
All weather operation
Integral N-Female connector
Includes mast mounting kit

Details
Manufacturer's Product Code	HGV-2458-05U
Frequency Range	2400 - 2500MHz, 4900 - 5850MHz
Gain	2.4GHz 5dBi, 5GHz 6dBi
Polarisation	Vertical
Vertical Beamwidth	45 degrees
Horizontal Beamwidth	360 degrees
Impedance	50 Ohm
Max input power	50 Watts
VSWR	<2.5:1 avg
Lightning Protection	DC Short
Connector	N Female
Weight	0.53Kg
Dimensions	L 295mm x D 32.2mm
Radome Material	UV Resistant Fiberglass
Mounting Mast size	30 to 50mm
Operating Temperature	-40 to +85 deg C
