Mars 5GHz 16dBi Dual Slant 90deg Sector double dual slant (4 x 45deg)

$245.00 +GST
Login for your price
10 In Stock
SKU: ANT-233
QuantityPrice
1 - 4$245.00
5 - 9$238.88
10 - 19$232.75
20+$220.50
Mars 5.1 to 5.9 GHz 16dBi 90 deg Double Dual-Slant (4 x ±45deg) Base Station Sector Antenna with MNT-22, MA-WD55-2DS16B
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents

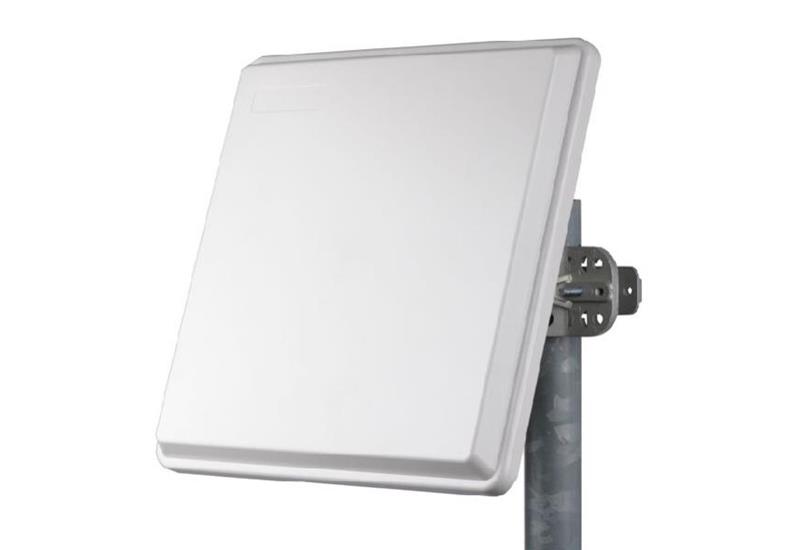

The MARS MA-WD55-2DS16 wideband 5GHz 16dBi 90 degree sector antenna provides coverage for 5.1-5.9 GHz band with double dual slant (±45°) in a single antenna radome with high aperture efficiency. 4 x N-Type Female Connectors.
Features
  • Wide coverage
  • 4 x N-Type Female Conenctors
  • Pole or wall mounting
  • A possibility of mounting Access Point upon antenna
  • Includes Mounting Bracket MNT-22
Details
Manufacturer's Product CodeMA-WD55-2DS16
Frequency Range5.1 – 5.9 GHz
Gain15dBi (5.1-5.3GHz), 16dBi (5.3-5.9GHz)
Polarisation2 x ±45°
Azimuth Beamwidth90deg
Elevation Beamwidth8deg
Connector Type4 x N-Type Female
Dimensions370 x 370 x 40 mm
Details
Pole MountYes, MNT-22 Included
WarrantyStandard 12 Month RTB
5GHz
N-Type
