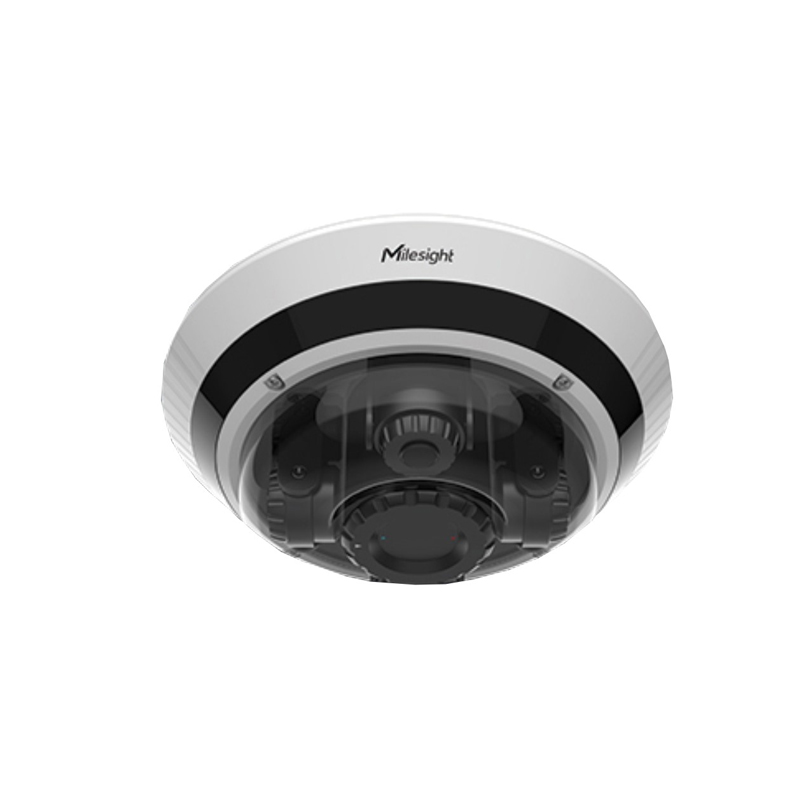

The Milesight AI Multi-Directional Vision Discover the power of our advanced camera, featuring four adjustable 5MP sensors that deliver 20MP exceptional multi-directional vision. Each camera can focus on different areas, providing multiple perspectives to customize your surveillance according to your specific needs. Additionally, one lens is designed to capture ground-level views, ensuring comprehensive coverage and enhanced security.
Milesight multi-directional camera is designed to replace up to four traditional cameras, cutting down on the number of devices needed for complete coverage. This means fewer cameras, fewer mounts, and less complex installation—saving you both time and labor. Additionally, with a reduced number of cameras, the VMS licenses and maintenance cost will be cut down as well.
Our camera provides unmatched 360° protection around the clock. Equipped with 360° IR illumination, it provides up to 30 meters of night vision in every direction, ensuring all-around visibility. The camera's 360° coverage range is enhanced by fully rotatable and motorized lenses, allowing each lens to achieve ultimate flexibility. This versatile design enables precise, targeted adjustments to cover every angle effortlessly.
Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
Equipped with a newest AI chip, this camera offers independent AI analysis for each of the channels, allowing for customized monitoring across different areas. This powerful feature adapts to diverse security needs, from intrusion detection to the latest e-scooter detection. Achieve efficient, targeted surveillance with AI-driven insights in every direction.
At every step, we've focused on making powerful features easy to use. From Built-in Wi-Fi for quick setup to PoE for a single, hassle-free connection, and Bundle Stream for efficient bandwidth usage, we've streamlined every aspect of the design. We've also included a Corridor Mode for optimal vertical coverage in narrow areas.
Milesight multi-directional Camera offers seamless compatibility with Milesight software. Additionally, it efficiently integrates with third-party platforms through ONVIF G/M/S/T protocols, ensuring flexible and hassle-free deployment.
Milesight multi-directional camera is designed to replace up to four traditional cameras, cutting down on the number of devices needed for complete coverage. This means fewer cameras, fewer mounts, and less complex installation—saving you both time and labor. Additionally, with a reduced number of cameras, the VMS licenses and maintenance cost will be cut down as well.
Our camera provides unmatched 360° protection around the clock. Equipped with 360° IR illumination, it provides up to 30 meters of night vision in every direction, ensuring all-around visibility. The camera's 360° coverage range is enhanced by fully rotatable and motorized lenses, allowing each lens to achieve ultimate flexibility. This versatile design enables precise, targeted adjustments to cover every angle effortlessly.
Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
Equipped with a newest AI chip, this camera offers independent AI analysis for each of the channels, allowing for customized monitoring across different areas. This powerful feature adapts to diverse security needs, from intrusion detection to the latest e-scooter detection. Achieve efficient, targeted surveillance with AI-driven insights in every direction.
At every step, we've focused on making powerful features easy to use. From Built-in Wi-Fi for quick setup to PoE for a single, hassle-free connection, and Bundle Stream for efficient bandwidth usage, we've streamlined every aspect of the design. We've also included a Corridor Mode for optimal vertical coverage in narrow areas.
Milesight multi-directional Camera offers seamless compatibility with Milesight software. Additionally, it efficiently integrates with third-party platforms through ONVIF G/M/S/T protocols, ensuring flexible and hassle-free deployment.
Features
- 4*5MP Motorized Sensors
- Adjustable Sensors for Multi-directional Coverage
- Built-in 360° IR LED with Up to 30m IR Distance
- Support 2*1TB SD Card Storage
- Enriched with Advanced AI Event
- Excellent Industrial Design
- H.265+ Video Compression
- Comprehensive Integration with 3rd-party Platform
- vGRID SaferCity Platform Compliant
Details | |
---|---|
Model | MS-C5321-FPE |
Model | 4x5MP AI Multi-directional Network Camera |
Image Sensor | 4x1/2.8″ Progressive Scan CMOS |
Min. Illumination | Color: [email protected] B/W: 0Lux with IR on |
WDR | 120dB Super WDR |
Lens | Motorized 3mm~9mm @F1.6 |
Mount | M14 |
Field of View | H92° ~ H40°/ D116° ~ D49°/ V67°~V30° |
DORI Distance | D:64m ~ 150m/ O:23m ~ 59m R:9.5m ~ 28.5m/ I:3m ~ 14m |
IR Distance | Up to 30m |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
Max.Image Resolution | 2592x1944 (5MP)x4 |
Aperture | F1.6-F2.7 |
Iris Control | Fixed |
Camera Angle Adjustment | Pan ±120°, Tilt +15 to +105°, Rotation ±90°, Twist ±30° |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Privacy Masking | Up to 8 areas |
ROI | Up to 8 areas |
Image Setting | Brightness/Contrast/Saturation/Sharpness |
Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
Secondary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
Bundle Stream | 60Hz: 30fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720) |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Audio I/O | 1/1 |
Alarm I/O | 1/1 |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Yes |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically |
People Counting & Reporting | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
Storage | Supports 2 microSD/SDHC/SDXC cards for local storage, each with a maximum capacity of 1TB |
Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP Support | Yes, Voice & Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
System Compatibility | ONVIF Profile G & Q & S & T, API |
Working Temperature | -40°C~60°C |
Working Humidity | 0~95%(Non-condensing) |
Power Method | PoE(802.3at)/ DC 12V±20% |
Power Consumption | DC Max. power consumption: 20W POE Max. power consumption: 23W |
Housing | Vandal-proof IK10-rated Metal Housing |
Weather Proof | Up to IP66-rated for Weather-resistant Performance |
Weight | 3.1kg(Only camera), 3.8kg(With package) |
Dimensions | 280mmX97mmX280mm |
Details | |
---|---|
Contents | Warranty card, QSG, Wall mount, mounting screws and tightening tool included |
Power Supply | Not included |
vGRID
100Mbps
RJ45
White
POE (802.3af)
