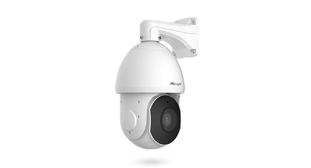

Milesight 42X AI 5MP High Speed PTZ Dome Network IP Camera - Multi Cable Out. Milesight AI Speed Dome Network Camera is designed to extend user’s reach to the max with the fast 5.7~205.2mm @F1.55~F4.8/7~300mm @F1.8~F6.5 lens. The 36X/42X optical zoom allows the user to zoom up to distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom range.
The AI Speed Dome Network Camera delivers clear images up to 4K High resolution by zooming in on objects at distance, providing users with ultra-high-definition video viewing experience. Equipped with the industry-leading 1/1.8" big sensor, Milesight 36X Speed Dome Network Camera, the memeber of Starlight Premium Series, improves every aspect of image quality, including better low-light sensitivity. The Milesight AI Speed Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB. The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 300m. Four LEDs work as High Beam, two LEDs work as Mid Beam, while the other three as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam, Mid Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio. Once PTZ Auto Tracking function enabled, Milesight PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.
The weather-proof and vandal-proof capacity are the solid foundation to guarantee the stable and reliable operation of the network camera. Applied in AI Speed Dome Network Camera, the IP66-rated weather proofing and IK10-rated vandal proofing, which are the leading level of the industry, well protect the cameras against adverse impact to ensure the performance.
The AI Speed Dome Camera creatively realizes the comprehensive defog performance in hardware of a smart fan, a built-in heater and software of image defogging algorithm, enabling the camera to avoid image fogging problems.
The AI Speed Dome Network Camera delivers clear images up to 4K High resolution by zooming in on objects at distance, providing users with ultra-high-definition video viewing experience. Equipped with the industry-leading 1/1.8" big sensor, Milesight 36X Speed Dome Network Camera, the memeber of Starlight Premium Series, improves every aspect of image quality, including better low-light sensitivity. The Milesight AI Speed Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB. The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 300m. Four LEDs work as High Beam, two LEDs work as Mid Beam, while the other three as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam, Mid Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio. Once PTZ Auto Tracking function enabled, Milesight PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.
The weather-proof and vandal-proof capacity are the solid foundation to guarantee the stable and reliable operation of the network camera. Applied in AI Speed Dome Network Camera, the IP66-rated weather proofing and IK10-rated vandal proofing, which are the leading level of the industry, well protect the cameras against adverse impact to ensure the performance.
The AI Speed Dome Camera creatively realizes the comprehensive defog performance in hardware of a smart fan, a built-in heater and software of image defogging algorithm, enabling the camera to avoid image fogging problems.
Features
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- 42X Optical Zoom
- IR Distance up to 300m
- Automatic Defogging using an inbuilt fan and heater
- 360° endless Pan, 90° auto flip Tilt * Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
- Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
- 255 Preset Points
- 8 Patrols, up to 48 presets each patrol
- 4 Patterns
- Support SD card, up to 256G
- Multi port: RS485, Alarm I/O 4/2, Audio I/O, AC 24V
- 6KV Surge Protection
- AI Deep Learning
- Support Video Content Analysis
- 1/1.8" Sony Sensor
Details | |
---|---|
Product Code | MS-C5341-X42PE |
Product Name | AI 5MP 42X AI Speed Dome Network Camera |
Min. Illumination | Color: [email protected], B/W: 0Lux with IR on |
WDR | 120dB Super WDR |
Shutter Time | 1/100000s∼1s |
Digital Zoom | 16X |
Focal Length | 7∼300mm, 42X Optical Zoom |
Zoom Speed | Approx 7s(Optical Wide-Tele) |
Field of View | H43°∼H2°/D53°∼D2°/V33°∼V1° |
Focus Control | Auto/Semi-Auto/Manual |
Minimum Working Distance | 1200∼1500mm(Wide-Tele) |
Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
Patrol | 8 Patrols, up to 48 presets each patrol |
Auto Tracking | Supported |
Other Functions | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
IR | Up to 300m |
Max. Image Resolution | 2592x1944 |
Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
Tertiary Stream | 60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
Region Of Interest | Up to 8 areas |
Image Settings | Saturation/Brightness/Contrast/Sharpness |
Interfaces | Ethernet(10/100), Audio I/O(1/1), Alarm I/O(4/2), RS485(1) |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/44.1/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Supported |
StorageSupport | microSD/SDHC/SDXC Card Local Storage, up to 1TB |
Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP | Supported - Voice&Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
System Compatibility | ONVIF Profile G & Q & S & T, API |
Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
Power Consumption | 12W MAX/ 25W MAX(With IR on) |
Enclosure | Up to IP66-rated for weather-resistant performance / ***Vandal-proof IK10-rated Metal Housing(***Optional) |
Surge Protection | 6KV |
Dimensions/Weight | 205mmX205mmx308mm/4Kg |
Details | |
---|---|
Contents | QSG, Mounting hardware, Wall mount, Warranty Card |
Power Supply | Not Included |
100Mbps
RJ45
AC 24V/3A , POE+ (802.3at)
