Description
Specifications
Resources
Package Contents

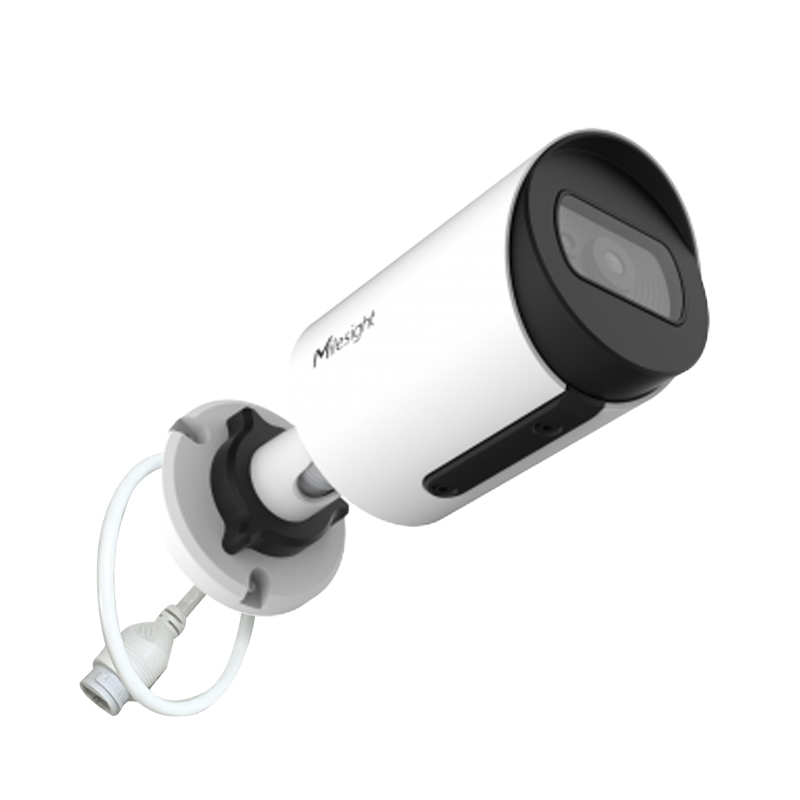

The Milesight AI Color+ Vandal-proof Mini Bullet Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit around your home or business and offer full colour viewing and recording in the dark!
Full Colour images in the dark! Combined with Built-in warm illuminator, which could deliver colorful and high resolution images in the dark or at night for the majority of monitoring scenarios, like outdoor area, parking lot, retails and so on.
Milesight NDAA AI Color+ Network Cameras are equipped with super large apertures (up to F1.0) that allow 2.2 times more light to pass through than normal cameras, as the larger aperture could let more light passes through to the sensor, which tremendously improving image exposure. In low-light scenarios, it works to guarantee full-time and excellent image performance.
Flexible and Automatic Illuminator On/Off Control: Equipped with intelligent illuminator with Max. 30m illumination distance, which could not only turn on and off the warm light, but also change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.
Powered by an advanced AI engine, Milesight's new generation of video analytics boasts higher accuracy with a pre-trained deep learning model and will continuously learn new algorithms automatically. Milesight cameras can intelligently filter objects to focus on detecting humans and vehicles, this feature coupled with multiple event rules (including Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering and Object Left, Object Removed) ensures access to diverse deployments, allowing a smarter and safer world.
Milesight AI Camera Series feature industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
Flexible storage options for recording and snapshots include NAS(Support NFS, SMB/CIFS) and microSD/SDHC/SDXC Card storage up to 256G.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
Full Colour images in the dark! Combined with Built-in warm illuminator, which could deliver colorful and high resolution images in the dark or at night for the majority of monitoring scenarios, like outdoor area, parking lot, retails and so on.
Milesight NDAA AI Color+ Network Cameras are equipped with super large apertures (up to F1.0) that allow 2.2 times more light to pass through than normal cameras, as the larger aperture could let more light passes through to the sensor, which tremendously improving image exposure. In low-light scenarios, it works to guarantee full-time and excellent image performance.
Flexible and Automatic Illuminator On/Off Control: Equipped with intelligent illuminator with Max. 30m illumination distance, which could not only turn on and off the warm light, but also change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.
Powered by an advanced AI engine, Milesight's new generation of video analytics boasts higher accuracy with a pre-trained deep learning model and will continuously learn new algorithms automatically. Milesight cameras can intelligently filter objects to focus on detecting humans and vehicles, this feature coupled with multiple event rules (including Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering and Object Left, Object Removed) ensures access to diverse deployments, allowing a smarter and safer world.
Milesight AI Camera Series feature industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
Flexible storage options for recording and snapshots include NAS(Support NFS, SMB/CIFS) and microSD/SDHC/SDXC Card storage up to 256G.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
Features
- Ultra Mini Size
- Full colour image at night using white built in white LEDs!
- Fixed 2.8mm Lens
- IR Distance up to 30m
- 120dB Super WDR
- Junction Box Version
- Suitable for outdoor applications (IP67 & IK10)
- ONVIF Profile Support for profiles G & Q & S & T, API
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
Details | |
---|---|
Model | 2MP: MS-C2964-(R)UPD; 5MP: MS-C5364-UPD; 4K: MS-C8164-UPD |
Image Sensor | 1/2.8″ Progressive Scan CMOS |
Min. Illumination | 2MP: Color: [email protected], B/W: 0Lux with White LED on; 5MP: Color: [email protected], B/W: 0Lux with White LED on; 4K: Color: [email protected], B/W: 0Lux with White LED on |
WDR | 120dB Super WDR |
Lens | 2.8mm |
Mount | M12 |
Field of View | 2MP: H109°/D125°/V61°(2.8mm); 5MP: H104°/D129°/V78°(2.8mm); 4K: H108°/D125°/V60°(2.8mm) |
IR Distance | Up to 30m |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
Max.Image Resolution | 2MP: 1920x1080; 5MP: 2592x1944; 4K: 3840x2160 |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Privacy Masking | Up to 4 areas |
ROI | Up to 8 areas |
Image Setting | Brightness/Contrast/Saturation/Sharpness |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Audio I/O | N/A |
Alarm I/O | N/A |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | N/A |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
SIP/VoIP Support | Yes, Voice & Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
System Compatibility | ONVIF Profile G & Q & S & T, API |
Working Temperature | -40°C~60°C |
Working Humidity | 0~90%(Non-condensing) |
Power Method | PoE (802.3af) |
Power Consumption | 2MP: 3W MAX, 5W MAX (With White LED on); 5MP: 3W MAX, 5W MAX (With White LED on); 4K: 4W MAX, 6W MAX (With White LED on) |
Housing | Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing |
Dimensions | 97mmX74mmX180mm (Junction Box Version) |
Accessories | A01 Pole Mount, A03 External Corner Bracket |
Details | |
---|---|
Contents | Warranty card, QSG, Wall mount, mounting screws and tightening tool included |
Power Supply | Not included |
vGRID
100Mbps
RJ45
White
PoE (802.3af/at)
