The Milesight AI Weather-proof Mini Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit and around your home or business.
Powered by an advanced AI engine, Milesight's new generation of video analytics boasts higher accuracy with a pre-trained deep learning model and will continuously learn new algorithms automatically. Milesight cameras can intelligently filter objects to focus on detecting humans and vehicles, this feature coupled with multiple event rules (including Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering and Object Left, Object Removed) ensures access to diverse deployments, allowing a smarter and safer world.
Milesight AI Camera Series feature industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
Flexible storage options for recording and snapshots include NAS(Support NFS, SMB/CIFS) and microSD/SDHC/SDXC Card storage up to 256G.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
Powered by an advanced AI engine, Milesight's new generation of video analytics boasts higher accuracy with a pre-trained deep learning model and will continuously learn new algorithms automatically. Milesight cameras can intelligently filter objects to focus on detecting humans and vehicles, this feature coupled with multiple event rules (including Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering and Object Left, Object Removed) ensures access to diverse deployments, allowing a smarter and safer world.
Milesight AI Camera Series feature industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
Flexible storage options for recording and snapshots include NAS(Support NFS, SMB/CIFS) and microSD/SDHC/SDXC Card storage up to 256G.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
Features
- Ultra Mini Size
- Fixed 2.8mm Lens
- IR Distance up to 20m
- Reduced lens flare reflection with its no dome cover design
- Built-in Microphone
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
Details | |
---|---|

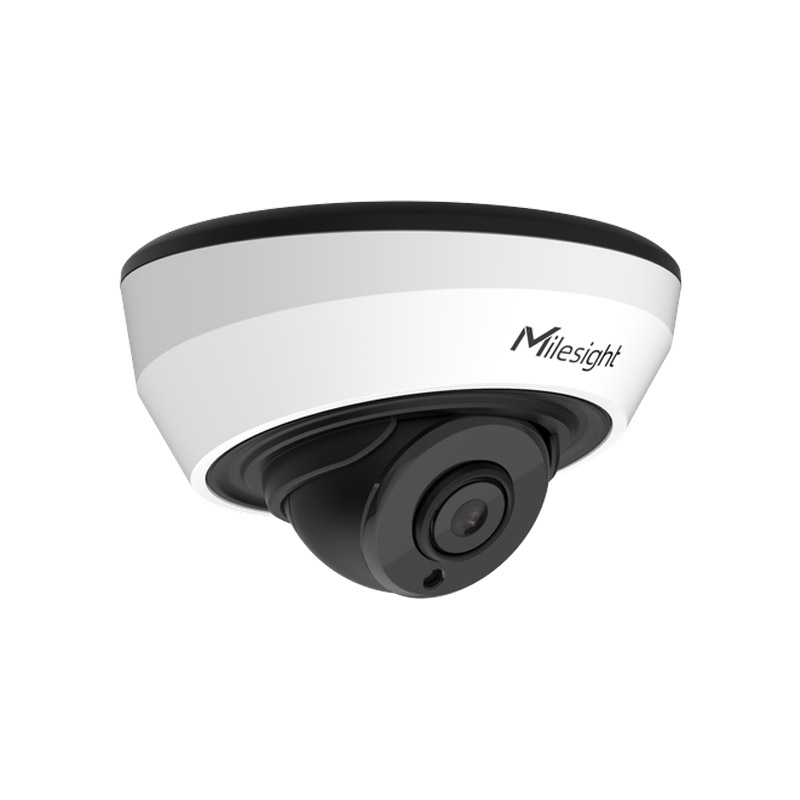

Model | MS-C8183-PD |
Image Sensor | 1/2.8″ Progressive Scan CMOS |
Min. Illumination | Color: [email protected], B/W: 0Lux with IR on |
WDR | 120dB Super WDR |
Lens | 2.8mm |
Mount | M12 |
Field of View | H110°/D126°/V60°(2.8mm) |
IR Distance | Up to 20m |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
Max.Image Resolution | 3840x2160 |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Privacy Masking | Up to 4 areas |
ROI | Up to 8 areas |
Image Setting | Brightness/Contrast/Saturation/Sharpness |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Audio I/O | Built-in Microphone |
Alarm I/O | N/A |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | N/A |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
SIP/VoIP Support | Yes, Voice & Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
System Compatibility | ONVIF Profile G & Q & S & T, API |
Working Temperature | -40°C~60°C |
Working Humidity | 0~90%(Non-condensing) |
Power Method | PoE (802.3af) |
Power Consumption | 3.7W MAX, 5.4W MAX (With IR on) |
Housing | Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing |
Dimensions | 106mmX76.5mm |
Accessories | A01 Pole Mount, A03 External Corner Bracket, A71 Wall Mount, A81 Recessed Mount, A83 Junction Box |
Details | |
---|---|
Contents | Warranty card, QSG, Wall mount |
Power Supply | Not included |
vGRID
100Mbps
White
POE (802.3af)
