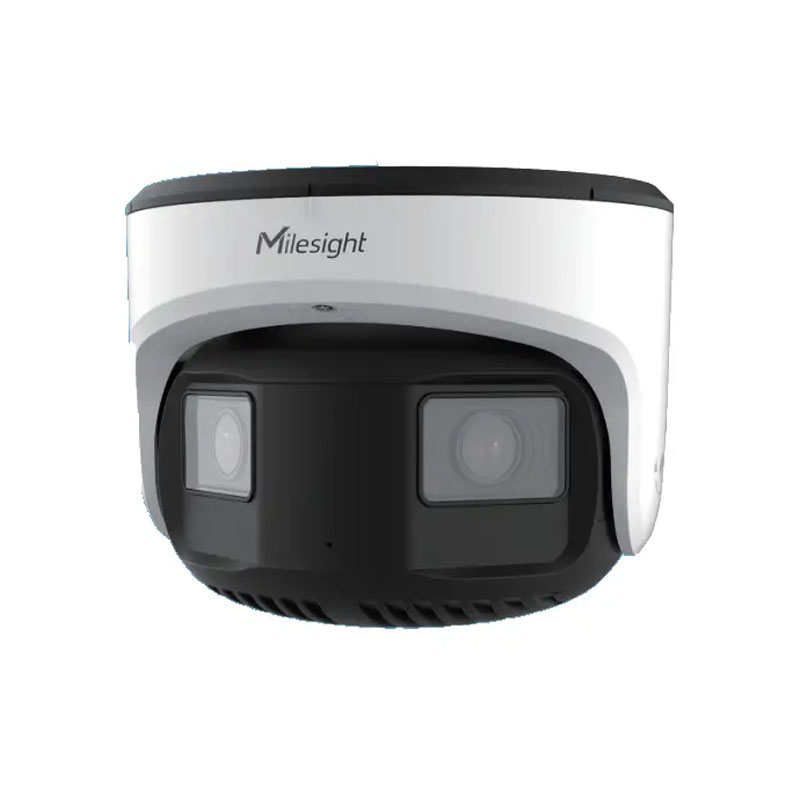

Milesight AI Dual sensor180deg 4K Panoramic Network IP Camera. One camera seamlessly replaces two, offering the same expansive monitoring area while drastically reducing costs. Say goodbye to the expenses of extra cameras, brackets, and VMS licenses. Moreover, fewer cameras mean a simplified installation process, slashing labor and time costs associated with wiring and setup.
Get the whole picture with Milesight Dual-sensor 180°panoramic camera! Offering a big 180° panoramic image, it provides a comprehensive monitoring experience, tracking events seamlessly and faithfully reconstructing scenes of AI-triggered suspicious activity for unparalleled surveillance precision. Embark on the future of surveillance with Milesight's pioneering FusionXpert technology. Seamlessly stitching images from two sensors, it delivers a true-to-life picture with no color or brightness discrepancies, and zero distortion. Experience a seamlessly stitched image that appears as if it was always one cohesive whole.
Compared to monitoring with multiple cameras, using just one dual-sensor panoramic camera consolidates multiple event alerts into one, and also avoids the switching between video streams to view different live lives, greatly enhancing the user experience. Moreover, with its elongated 180° live view shape, customizable layouts are essential. We provide options for freely configurable layouts to accommodate various surveillance needs.
Experience the power of Dual AI Technology with our camera. With AI ISP, AI automatically distinguishes image noise from details, subtracting noise and enhancing details to deliver high-definition, low-noise images, especially effective in low-light conditions, then AI further conducts VCA analysis, offering rich algorithms based on human and vehicle detection for comprehensive surveillance insights.
Get the whole picture with Milesight Dual-sensor 180°panoramic camera! Offering a big 180° panoramic image, it provides a comprehensive monitoring experience, tracking events seamlessly and faithfully reconstructing scenes of AI-triggered suspicious activity for unparalleled surveillance precision. Embark on the future of surveillance with Milesight's pioneering FusionXpert technology. Seamlessly stitching images from two sensors, it delivers a true-to-life picture with no color or brightness discrepancies, and zero distortion. Experience a seamlessly stitched image that appears as if it was always one cohesive whole.
Compared to monitoring with multiple cameras, using just one dual-sensor panoramic camera consolidates multiple event alerts into one, and also avoids the switching between video streams to view different live lives, greatly enhancing the user experience. Moreover, with its elongated 180° live view shape, customizable layouts are essential. We provide options for freely configurable layouts to accommodate various surveillance needs.
Experience the power of Dual AI Technology with our camera. With AI ISP, AI automatically distinguishes image noise from details, subtracting noise and enhancing details to deliver high-definition, low-noise images, especially effective in low-light conditions, then AI further conducts VCA analysis, offering rich algorithms based on human and vehicle detection for comprehensive surveillance insights.
Features
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- Seamless Stitched 180° Panoramic View
- 8MP High Definition without Distortion
- AI ISP & 1/1.8″ Sensor for Super Night Vision
- Smart IR II with 30m IR Distance
- 9 AI VCA & Object Counting & Heat Map
- 1TB SD Storage & H.265+ Smart Stream
- vGRID SaferCity Platform Compliant
Details | |
---|---|
Product Code | MS-C8477-PC |
Product Name | 4K AI Dual-sensor 180° Panoramic Network Camera |
Min. Illumination | Dual 1/1.8″ Progressive Scan CMOS |
WDR | 140dB Super WDR |
Lens | [email protected] |
Mount | M12 |
Field of View | H180°/V86° |
Shutter Time | 1/100000s∼1s |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
IR Distance | Up to 30m |
S/N | >55dB |
Max. Image Resolution | 5084x1520 |
Primary Stream | 60Hz: 25fps@(5084x1520, 3618x1080, 2412x720)50Hz: 25fps@(5084x1520, 3618x1080, 2412x720) |
Secondary Stream | 60Hz: 25fps@(1160x344, 1008x296, 872x256, 576x168, 504x152)50Hz: 25fps@(1160x344, 1008x296, 872x256, 576x168, 504x152) |
Tertiary Stream | 60Hz: 25fps@(2636x788, 1752x520, 1160x344, 1008x296, 872x256, 576x168) 50Hz: 25fps@(2636x788, 1752x520, 1160x344, 1008x296, 872x256, 576x168) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
Region Of Interest | Up to 8 areas |
Image Settings | Saturation/Brightness/Contrast/Sharpness |
Web Access | Support IE/Firefox/Chrome/Safari Browser |
Interfaces | 1*RJ45 10M/100M Ethernet Port |
Audio Interface | 1*Audio Out Interface |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Support |
Storage Support | microSD/SDHC/SDXC Card Local Storage, up to 1TB |
Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP | Supported - Voice&Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
System Compatibility | ONVIF Profile G & Q & S & T, API |
Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
Power Supply | PoE(802.3af)/DC 12V±10% |
Power Consumption | 6W MAX, 12W MAX (With IR on) |
Weather Proof | Up to IP67-rated for weather-resistant performance |
Housing | Vandal-proof IK10-rated metal housing |
Dimensions/Weight | 128mmx160mmX160mm/1.5kg |
Details | |
---|---|

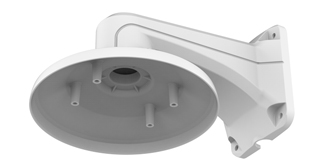

Contents | Warranty card, QSG, Wall mount, mounting screws and tightening tool included |
Power Supply | Not included |
vGRID
100Mbps
RJ45
DC 12V , POE (802.3af)
