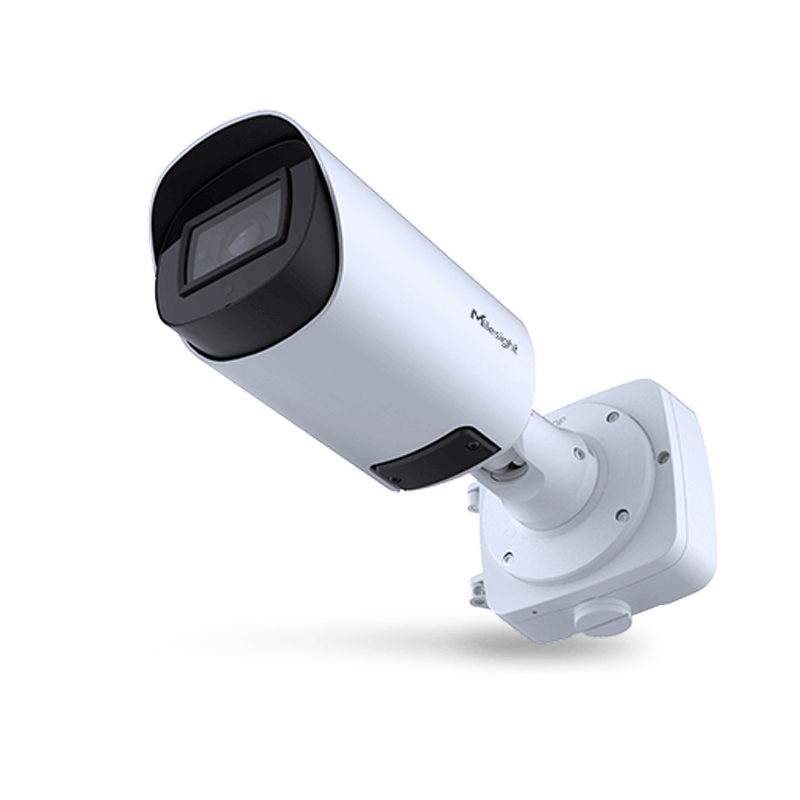

Milesight AI Outdoor Parking Management Pro Bullet Plus Camera. Embedded with AI deep learning algorithms, Milesight AI Outdoor Parking Management Camera can detect and manage up to 100 parking spaces with over 98% detection accuracy, considerably assisting with parking guidance and enabling more effective and intelligent parking management.
Tailored for 24/7 outdoor surveillance, Milesight incorporates a series of cutting-edge image processing technologies into AI Outdoor Parking Management Camera to realize outstanding scene adaptability. A greater monitoring area is possible because of the wide FoV of motorized zoom lens, and every detail is clearly visible thanks to the 4K ultra high resolution. In addition, with 1/1.8” STARVIS starlight sensor and image-based frame accumulation technology, it ensures safe and sound outdoor monitoring even at night.
To maximize usability and compatibility, Milesight AI Outdoor Parking Management Camera supports CGI/API, which makes it easy to integrate openly with third-party platforms. Network protocols, such as HTTP(s), provide a wide range of options for data processing. The transmission of parking information to third-party parking systems helps form a complete solution to guide drivers to parking spaces quickly and enable intelligent management.
The configuration of car parking detection is very flexible and convenient. Area Name, Area Planning Space, Distribution and Numbering Scheme of Detection Areas are all customizable, providing a simple way to configure detection areas in line with user preferences. And the red overlay of occupied parking spaces provides a more intuitive interface.
Equipped with motorized zoom & focus lens, Milesight AI Outdoor Parking Management Pro Bullet Plus Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.
Tailored for 24/7 outdoor surveillance, Milesight incorporates a series of cutting-edge image processing technologies into AI Outdoor Parking Management Camera to realize outstanding scene adaptability. A greater monitoring area is possible because of the wide FoV of motorized zoom lens, and every detail is clearly visible thanks to the 4K ultra high resolution. In addition, with 1/1.8” STARVIS starlight sensor and image-based frame accumulation technology, it ensures safe and sound outdoor monitoring even at night.
To maximize usability and compatibility, Milesight AI Outdoor Parking Management Camera supports CGI/API, which makes it easy to integrate openly with third-party platforms. Network protocols, such as HTTP(s), provide a wide range of options for data processing. The transmission of parking information to third-party parking systems helps form a complete solution to guide drivers to parking spaces quickly and enable intelligent management.
The configuration of car parking detection is very flexible and convenient. Area Name, Area Planning Space, Distribution and Numbering Scheme of Detection Areas are all customizable, providing a simple way to configure detection areas in line with user preferences. And the red overlay of occupied parking spaces provides a more intuitive interface.
Equipped with motorized zoom & focus lens, Milesight AI Outdoor Parking Management Pro Bullet Plus Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.
Features
- 4K
- AI
- >98% Recognition Rate
- 1/1.8'' Sensor
- IP67&IK10
- 3rd Party Compatibility
- Smart IR II
- 65m IR Distance
- 3.6~10mm Motorized Lens
Details | |
---|---|
Name | AI Outdoor Parking Management Pro Bullet Plus Camera |
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Min. Illumination | Color: 0.009Lux @F1.4, B/W: 0Lux with IR on |
WDR | 120dB Super WDR |
Shutter Time | 1/100000s∼1s |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
IR Distance | Up to 65m |
Parking Application Mode | Occupancy Detection/Parking Detection |
Parking Space Detection | Up to 4 Parking Spaces for Parking Detection with LPR;Up to 100 Parking Spaces@10m for Occupancy Detection |
Detection Accuracy | >98% |
Data Report | Triggered Report: when parking space is occupied or released;Interval Report: regular report of entire parking situation |
Mounting Height | 4~8m (For Parking Detection with LPR); >3.5m (For Occupancy Detection) |
Lens | Motorized [email protected] |
Field of View | H116°~H48°/D134°~D55°/V65°~V27° |
Focus Control | Auto/Manual |
Max. Image Resolution | 3840x2160 |
Frame Rate | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression |
Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
Privacy Masking | Up to 8 areas |
ROI | Up to 8 areas |
Image Settings | Saturation/Brightness/Contrast/Sharpness |
Web Access | Support IE/Firefox/Chrome/Safari Browser |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/44.1/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Supported |
Ethernet | 1 x RJ45 10M/100M Ethernet Port |
Audio I/O | Built-in Microphone and 1 Audio Output interface |
Alarm I/O | 1/1 |
System Storage Support | microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP Support | Yes, Voice&Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
System Compatibility | ONVIF Profile G & Q & S & T, API |
General Working Temperature | -40℃ to 60℃ |
Working Humidity | 0∼90%(Non-condensing) |
Power Supply | PoE(802.3af)/DC 12V±10% |
Power Consumption | 8W MAX, 17W MAX(With IR on) |
Weather Proof | Up to IP67-rated for weather-resistant performance |
Housing | Vandal-proof IK10-rated metal housing |
Dimensions | 301mmX108mmX126mm |
Weight | 1630g |
Details | |
---|---|
Contents | QSG, Mounting hardware, Wall mount, Warranty Card |
Power Supply | Not Included |
100Mbps
RJ45
PoE (802.3af/at)
