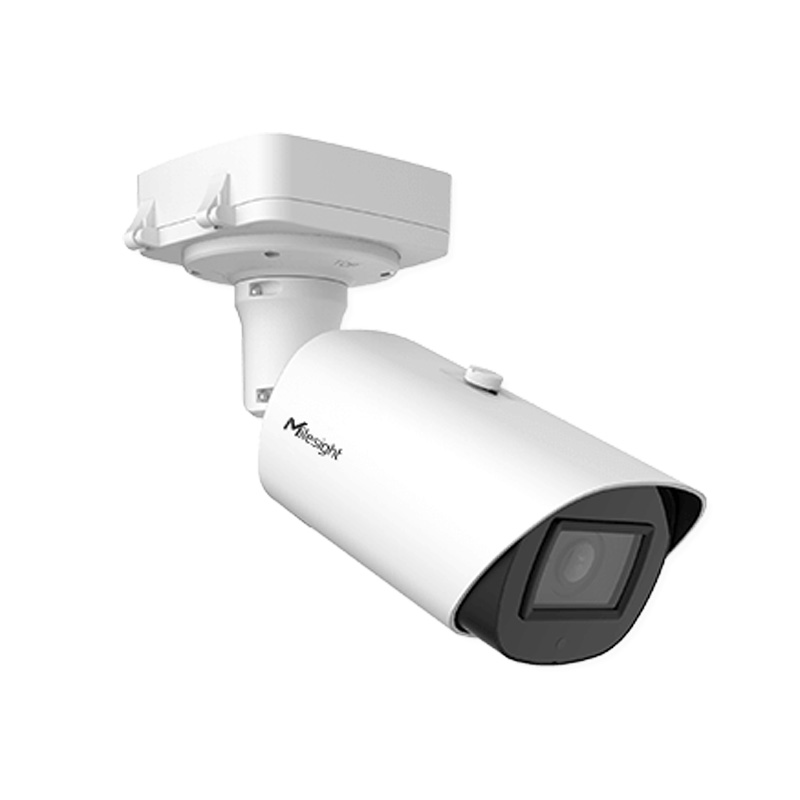

Milesight 5MP NDAA AI LPR 12X AF Motorized Pro Bullet Plus Network Camera. Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. The Milesight NDAA Radar AI LPR 4X/12X Pro Bullet Plus Network Camera can not only recognize vehicle plates in real time, but also identify more vehicle features, like vehicle type, color, etc., generating reliable traffic insights to improve safety and mobility.
Milesight applies Sony' s high sensitive 1/2" sensor whose capacity is approximately twice than that of the conventional ones. Its high sensitivity is designed for capturing saturated and sharp images even in pitch dark environment. The Milesight Radar AI LPR 4X/12X Pro Bullet Plus Network Camera is coupled with the 100fps high frame rate and 4K video viewing experience that deliver ultra-high-definition images with no latency despite of the high-speed movement.
Featuring 12X Auto Focus Lens, the Milesight Radar AI LPR 4X/12X Pro Bullet Plus Network Camera achieves a clear visual experience perfectly for long distance. As an all-in-one 3D radar camera, the radar module is directly integrated in the camera, which is easy to deploy for the users. Do not worry if you are in complex environments, the well-designed integrated junction box and versatile interfaces ensure installation efficiency.
Milesight applies Sony' s high sensitive 1/2" sensor whose capacity is approximately twice than that of the conventional ones. Its high sensitivity is designed for capturing saturated and sharp images even in pitch dark environment. The Milesight Radar AI LPR 4X/12X Pro Bullet Plus Network Camera is coupled with the 100fps high frame rate and 4K video viewing experience that deliver ultra-high-definition images with no latency despite of the high-speed movement.
Featuring 12X Auto Focus Lens, the Milesight Radar AI LPR 4X/12X Pro Bullet Plus Network Camera achieves a clear visual experience perfectly for long distance. As an all-in-one 3D radar camera, the radar module is directly integrated in the camera, which is easy to deploy for the users. Do not worry if you are in complex environments, the well-designed integrated junction box and versatile interfaces ensure installation efficiency.
Features
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- License Plate Recognition (LPR/ANPR)
- 12X AF Lens
- 90m Detection Distance
- 95% Accuracy ·
- Up to 1000 records inside the camera
- IP67 & IK10
- AI LPR · 200km/h
- 90fps High Frame Rate
- vGRID SaferCity Platform Compliant
Details | |
---|---|
Product Code | TS5366-X12TPE |
Product Name | AI Road Traffic Pro Bullet Plus Camera |
Min. Illumination | Color: [email protected] B/W: 0Lux with IR on |
Lens | 5.3∼64mm, 12X Optical Zoom |
Mount | Φ14 |
Field of View | H57°~H4°/D69°~D5°/V44°~V1° |
Shutter Time | 1/100000s∼1s |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
Illumination Distance | Up to 70m during the day; Up to 35m during the night with illuminationS/N |
Max. Image Resolution | 2592x1944 |
Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
Privacy Masking | Up to 8 areas |
Region Of Interest | Up to 8 areas |
Image Settings | Saturation/Brightness/Contrast/Sharpness |
Web Access | Support IE/Firefox/Chrome/Safari Browser |
Interfaces | 1*RJ45 10M/100M Ethernet Port |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/44.1/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Support |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP | Supported - Voice&Video-over-IP |
Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
System Compatibility | ONVIF Profile G & Q & S & T, API |
Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
Power Supply | PoE(802.3at)/DC 12V±10% |
Power Consumption | 8 MAX, 13W MAX(With IR on) |
Weather Proof | Up to IP67-rated for weather-resistant performance |
Housing | Vandal-proof IK10-rated metal housing |
Dimensions/Weight | 320mmX134mmX171mm, 1.6KG |
Details | |
---|---|
Contents | Warranty card, QSG, Wall mount, mounting screws and tightening tool included |
Power Supply | Not included |
vGRID
100Mbps
RJ45
DC 12V , POE+ (802.3at)
