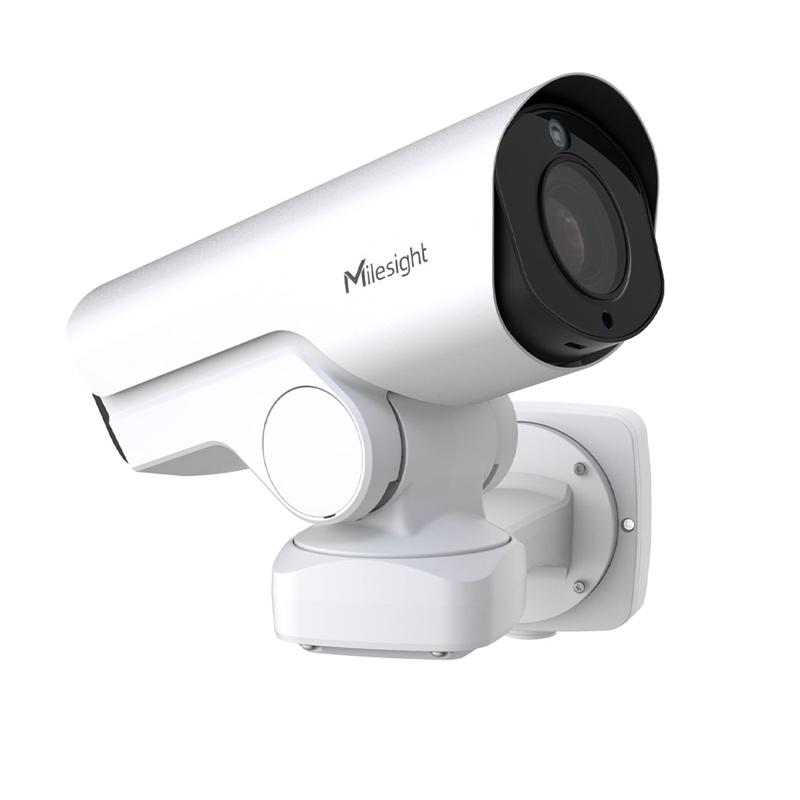

Milesight 5MP AI LPR Road Traffic 12X PTZ Bullet Plus Camera

$1,495.00 +GST
Login for your price
Out of Stock
SKU: TS5367-X12PE
QuantityPrice
1 - 4$1 495.00
5 - 9$1 382.88
10 - 19$1 345.50
20+$1 270.75
Milesight 5MP AI LPR Road Traffic 12X PTZ Bullet Plus Camera
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Supported Platforms
vGRID
Description
Specifications
Resources
Package Contents
The Milesight License Plate Recognition (LPR/ANPR) 12X Mini PTZ Bullet Network Camera based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

Milesight AI LPR 12X PTZ Bullet Network Camera offers the ability to fast and precisely rotate on a 360° and 75° tilt to survey a wide range of territory. The user can easily set up 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

The 12X Optical Zoom can zoom up to distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom image. With the industry leading frame rate reaching 100fps, the AI LPR 12X PTZ Bullet Network Camera can easily catch images with no latency despite of the high-speed movement.

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting. Once PTZ Auto Tracking function enabled, Milesight PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.

With two installation modes of Wall Mount and Pedestal Mount, the PTZ camera, to a greater extent, meets different installation needs for different application scenarios. The innovative modes allow to achieve its best values on the basis of customers’ requirements, making the PTZ camera an unparalleled choice.
Features
  • 5MP
  • License Plate Recognition (LPR/ANPR)
  • 12X Optical Zoom
  • 3 in 1 Super WDR Pro
  • 0.005Lux Ultra Low-light
  • IP66
  • 3D Positioning
  • PTZ Auto Tracking
  • PTZ Motion Detection
  • 90fps High Frame Rate
  • PoE (802.3at)
  • Traffic Violation Detection
  • vGRID SaferCity Platform Compliant
Details
Product CodeTS5367-X12PE
Product NameMilesight 5MP AI LPR Road Traffic 12X PTZ Bullet Plus Camera
Min. IlluminationColor: [email protected] B/W: 0Lux with IR onWDR
Shutter Time1/100000s∼1s
Digital Zoom16X
Focal Length5.3∼64mm, 12X Optical Zoom
Zoom SpeedApprox 4s
Field of ViewH57°~H4°/D69°~D5°/V44°~V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000∼1500mm(Wide-Tele)
Pan Range/Pan Speed360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed-45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
Proportional ZoomSupport
Patrol8 Patrols, up to 48 presets each patrol
Auto TrackingSupported
Other FunctionsAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IRUp to 140m
Irradiation AngleAuto/Manual
LPR Max Vehicle Speed200km/h
Recognition Accuracy>95%
CoverageSupports simultaneous detection of 4 regions
Vehicle DetectionSupports vehicle direction detection
White/Black ListUp to 1000 records inside the camera
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz:25fps@(2592x1944),25fps@(2048x1536), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
Region Of InterestUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfacesEthernet(10/100), Audio I/O(1/1), Alarm I/O(4/2), RS485(1)
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupported
Storage SupportmicroSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionAuto-tracking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIPSupported - Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input(Optional), Audio Alarm(Optional), etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/2A±10%
Power Consumption13W MAX, 23W MAX(With IR on)
EnclosureUp to IP66-rated for weather-resistant performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Details
ContentsWarranty card, QSG
Power SupplyNot included
vGRID
100Mbps
RJ45
DC 12V/2A , PoE (802.3af/at) , POE+ (802.3at)
