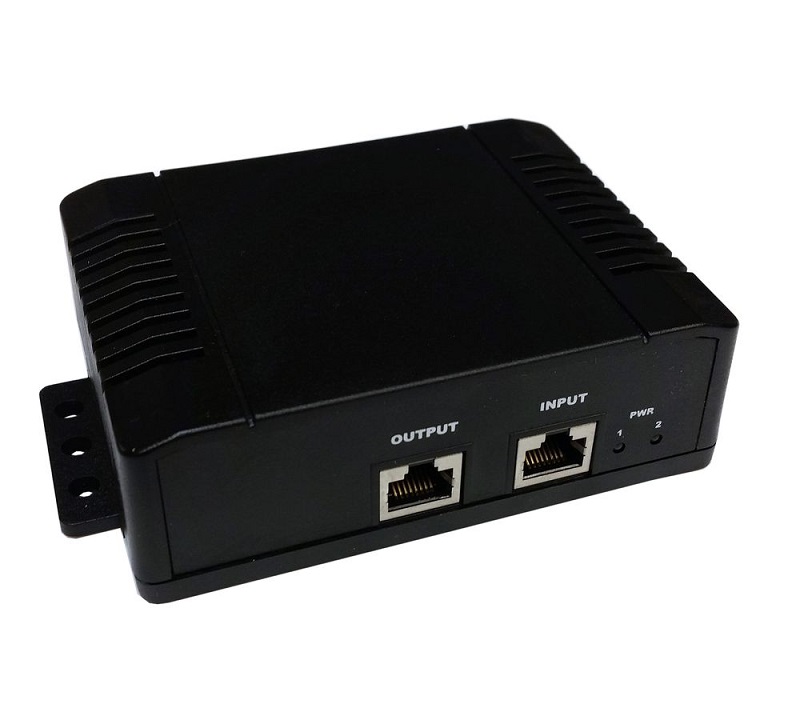

Tycon Power TP-DCDC-1256GD-BT 10G 802.3bt DC to DC PoE Converter

TP-DCDC-1256GD-BT
SKU: TP-DCDC-1256GD-BT
Tycon Power Systems TP-DCDC-1256GD-BT 10-60VDC IN 56VDC OUT 70W 4Pair Hi Power
Ethernet Speed
100Mbps , 1Gbps , 10Gbps
Integrated PoE
PoE (802.3af/at) , POE (802.3bt)
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
The Tycon Power Systems TP-DCDC-1256GD-BT is a 10G, 802.3at/bt compatible, high power DC to DC converter/PoE inserter designed for operation in industrial environments.

The inserter conforms to the new IEEE802.3bt Power Over Ethernet standards for industry compatibility. The PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires (4 Pair). They are backward compatible with 802.3at so they will safely power 802.3at and 802.3af devices in addition to the new 802.3bt devices.

The wide input voltage range (10VDC to 60VDC) of the TP-DCDC-1256GD-BT makes these units universal in battery powered applications. The input and output are isolated so they work in a negative ground or positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage, surge, short circuit and overload.
Features
  • Input Voltage 10VDC to 60VDC
  • 8 wire (4 Pair) 56VDC 802.3bt PoE Output (backwards compatible with 802.3af/at)
  • High Power Output to 70W
  • Dual DC Inputs for Connecting 2 Power Sources
  • 10G Data Throughput up to 80m
  • Low Voltage Disconnect Feature
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Industrial Temperature Range -40 to 70C
Details
Product CodeTP-DCDC-1256GD-BT
Input Voltage+/- 10VDC to 60VDC
DC Input ConnectorRemoveable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max)
POE SpecificationIEEE802.3bt (4 Pair); backward compatible with 802.3at and 802.3af
Output Voltage (+/-2.5%)56VDC
Data ThroughputCAT6A or better cable: 10G @ 80M , 5G @ 100M, CAT5E Cable: 5G @ 100M
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)1.25A Total
Output Power (max)70W Total
Self-Consumption Power2W
Efficiency80% Min
Low Voltage Protection<9V Turn off Input
Surge Protection30kV (IEC 61000-4-2,-4,-5)
Line Regulation, Ripple, Noise1%
Load Regulation5%
EMC StandardsFCC Class B EN55022 Class B
Safety StandardsCSA 22.2 &TUV EN60950
Operating Temperature-40 to +70°C
Operating Humidity (RH)5% - 90%
Storage Temperature-40 to +85°C
MTBF (Mean Time Between Failure)68,278 Hours
Dimensions (LxWxH)90 x 118 x 40mm
Weight335g
