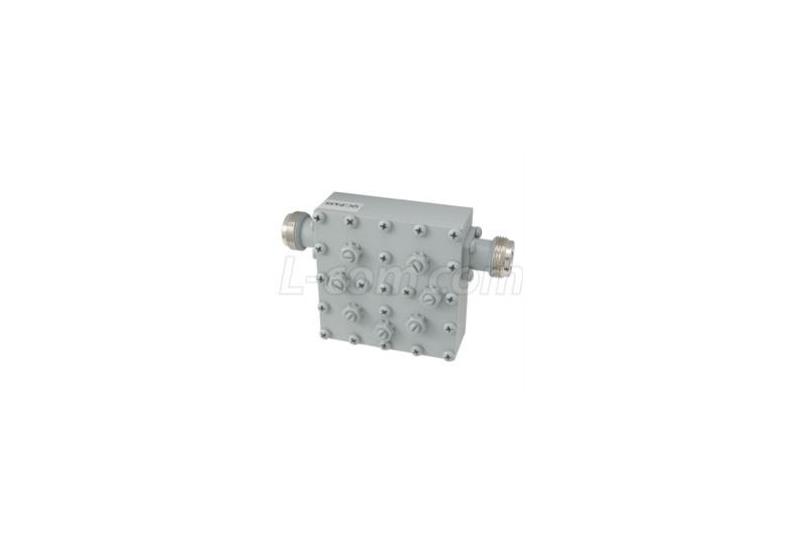

The HyperLink 900 MHz 4-Pole Ultra-High Q full band filter is designed for full band applications. By reducing interference outside the 915 MHz band such as from cellular and paging signals, improved performance in noisy environments can be achieved. The BPF900 series filters are ideal for use with 902-928 MHz ISM band applications as well as 900 MHz RFID applications. This filter features a rugged aluminum construction. The BPF900 is designed for indoor use.
Features
- Ultra-High Quality Microwave Cavity Filter
- Ultra Low Insertion Loss (0.5 dB nominal)
- Ideal for 902-928 MHz ISM band applications
- Industrial Grade
- Rugged Aluminum Construction
| Details | |
|---|---|
| Manufacturer's Product Code | BPF900 |
| Frequency | 915MHz (Center Frequency) |
| Bandwidth | 35MHz |
| Insertion Loss | > 15 dB |
| Out of Band Rejection | > 40 dB @ < 815 MHz; > 40 dB @ > 1015 MHz |
| Connector | (2) N-Type Female |
| Operating Temperature | -40° C to +85° C |
| Dimensions | 56 x 56 x 40 mm |
| Details | |
|---|---|
| Warranty | Standard 12 Month RTB |
600-999MHz
N-Type
