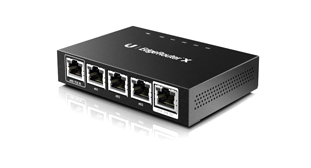

Ubiquiti EdgeRouter X 5 Port Gigabit Router. Ubiquiti Networks introduces the EdgeRouter X, part of the EdgeMAX platform. The EdgeRouter X combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor. Two models of the EdgeRouter X are available. The standard model, the ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option1 is available to support a single airMAX device2. The SFP model, the ER-X-SFP, is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi devices, while its SFP port provides fiber connectivity to support backhaul applications. Powered by a proprietary and intuitive graphical interface, EdgeOS, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Features
- Interface/Encapsulation: Ethernet, 802.1q VLAN, PPPoE, GRE, IP in IP, Bridging, Bonding (802.3ad)
- Addressing: Static IPv4/IPv6 Addressing, DHCP/DHCPv6
- Routing: Static Routes, OSPF/OSPFv3, RIP/RIPng, BGP (with IPv6 Support), IGMP Proxy
- Security: ACL-Based Firewall, Zone-Based Firewall, NAT
- VPN: IPSec Site-to-Site and Remote Access, OpenVPN Site-to-Site and Remote Access, PPTP Remote Access, L2TP Remote Access, PPTP Client
- Services: DHCP/DHCPv6 Server, DHCP/DHCPv6 Relay, Dynamic DNS, DNS Forwarding, VRRP, RADIUS Client, Web Caching, PPPoE Server
- QoS: FIFO, Stochastic Fairness Queueing, Random Early Detection, Token Bucket Filter, Deficit Round Robin, Hierarchical Token Bucket, Ingress Policing
- Management: Web UI, CLI (Console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT Discovery Protocol, Logging
| Details | |
|---|---|
| Manufacturer's Code | ER-X |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| Data/PoE Input Port | 1 x 10/100/1000 RJ45 Port |
| Data Port | 3 x 10/100/1000 RJ45 Ports |
| Data/PoE Passthrough Port | 1 x 10/100/1000 RJ45 Port |
| Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Max. Power Consumption | 5W |
| Power Input | 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Buttons | Reset |
| LEDs | Power, Ethernet 0-4 |
| Wall Mount | Yes |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | 12VDC, 0.5A Power Adapter (Included) |
1Gbps
PoE (non standard)
RJ45
