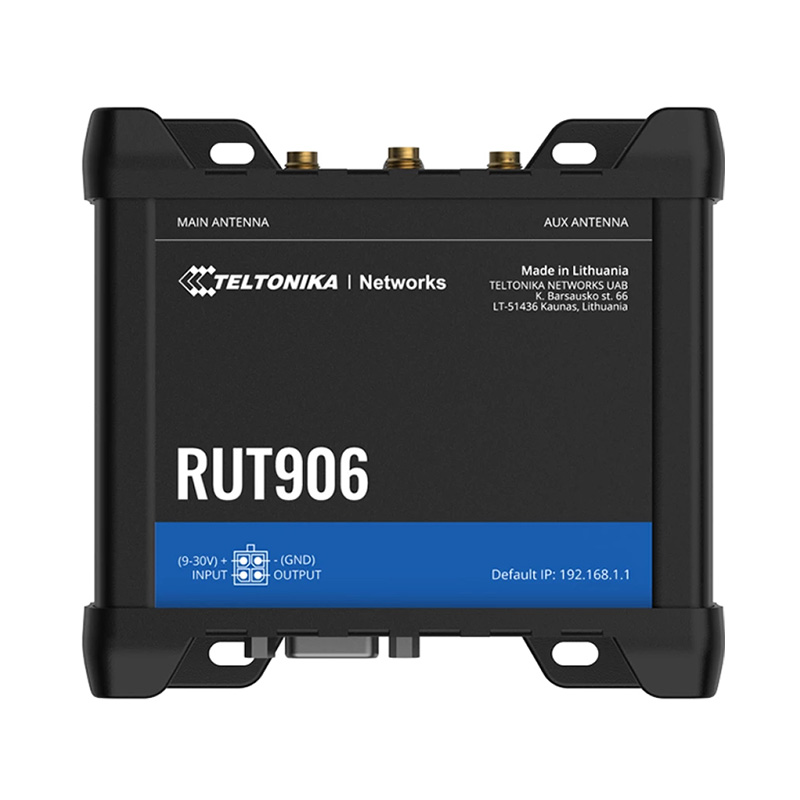

Teltonika RUT906 Dual SIM 4G/LTE Cat 4 Router with Serial, IO and Ethernet is designed for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
Features
- 4G LTE (Cat4) Connectivity
- Dual SIM with Auto-failover, backup WAN and more switching scenarios
- Serial interfaces (RS232 & RS485), MQTT, BACnet, OPC UA, I/Os, Ethernet, and more
- GNSS NTRIP, location services and time synchronization
- Remote management with Teltonika RMS
| Details | |
|---|---|
| Product code | RUT906000800 |
| Mobile | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| Memory | 128 MB, DDR2 |
| Storage | 16 MB, SPI Flash |
| Powering Options | 4-pin industrial DC power socket, 9 - 30 VDC |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
| SD Card | Micro SD (internal) |
| Antenna Connectors | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| Ethernet | 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN |
| Wi-Fi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs | 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector |
| Serial | 1 x RS232, 1 x RS485 |
| Other | 1 x USB host |
| Status LEDs | 1 x bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Operating Temperature | -40 °C to 75 °C |
| Housing | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 109.5 x 50 x 100 mm |
| Weight | 295g |
| Regulatory | CE, UKCA, RCM, CB, E-mark |
| Details | |
|---|---|
| Included | Router RUT906, 9 W PSU, 2x Mobile antennas (magnetic mount, SMA male, 3 m cable), 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), GNSS antenna (adhesive, SMA male, 3 m cable), RS485 connector block, I/O connector block, Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
