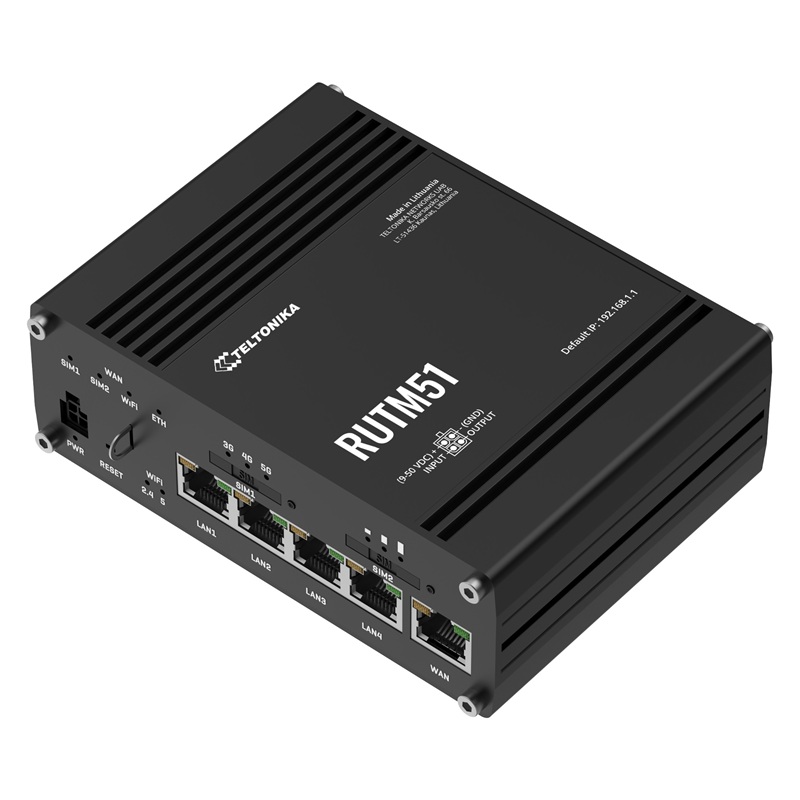

Teltonika RUTM51 Industrial 5G/4G LTE Cat 12 Wi-Fi Gigabit Router with Dual SIM
The Teltonika RUTM51 is a budget-friendly dual-SIM, multi-network industrial 5G router delivering connectivity for data-heavy applications. With five Gigabit Ethernet ports, dual-band Wi-Fi, and auto-failover, it ensures seamless, reliable performance. Backward compatibility with 4G Cat 12 and a versatile range of interfaces make the RUTM51 5G router a smart, future-proof choice for businesses seeking high-speed connectivity at a lower cost.
The Teltonika RUTM51 is a budget-friendly dual-SIM, multi-network industrial 5G router delivering connectivity for data-heavy applications. With five Gigabit Ethernet ports, dual-band Wi-Fi, and auto-failover, it ensures seamless, reliable performance. Backward compatibility with 4G Cat 12 and a versatile range of interfaces make the RUTM51 5G router a smart, future-proof choice for businesses seeking high-speed connectivity at a lower cost.
Features
- Top-tier 5G speeds at an unbeatable price point
- Dual SIM With auto failover, backup WAN and other switching scenarios
- SA & NSA Supports both architectures to leverage the 5G infrastructure
- Backward compatible with 4G (LTE Cat 12)
| Details | |
|---|---|
| Product code | RUTM51100400 |
| Mobile module | 5G Sub-6GHz SA: 2 Gbps DL, 1 Gbps UL; NSA: 2.6 Gbps DL, 650 Mbps UL; 4G (LTE) - Cat 12: 600 Mbps DL, Cat 13: 150 Mbps UL; 3G - 42.2 Mbps DL, 11 Mbps UL |
| 3GPP Release | Release 15 |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| SIM idle protection service | When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then |
| SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| CPU | MediaTek, Dual-core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB, DDR3 |
| FLASH storage | 16 MB serial NOR flash, 256 MB serial NAND flash |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Input | 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high |
| Output | 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| Power Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (passive) | Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC |
| Power consumption | Idle: <5 W, Max: <18 W |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95 mm |
| Weight | 525 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional optioanl kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Regulatory & Type Approvals | CE, UKCA, EAC, UCRF, RCM, WEEE, CB |
| Details | |
|---|---|
| Included | 1 x RUTM51 Router, 18 W PSU, 4 x 5G Mobile antennas (swivel, SMA male), 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
Teltonika RMS
100Mbps
5G , Wi-Fi 5 , GPS/GNSS
Contact , Data Logger , Tracker
RJ45 , RP-SMA , SMA , USB
600-999MHz , 1700-2100MHz , 2.4GHz , 3GHz , 5GHz
PoE (non standard)
