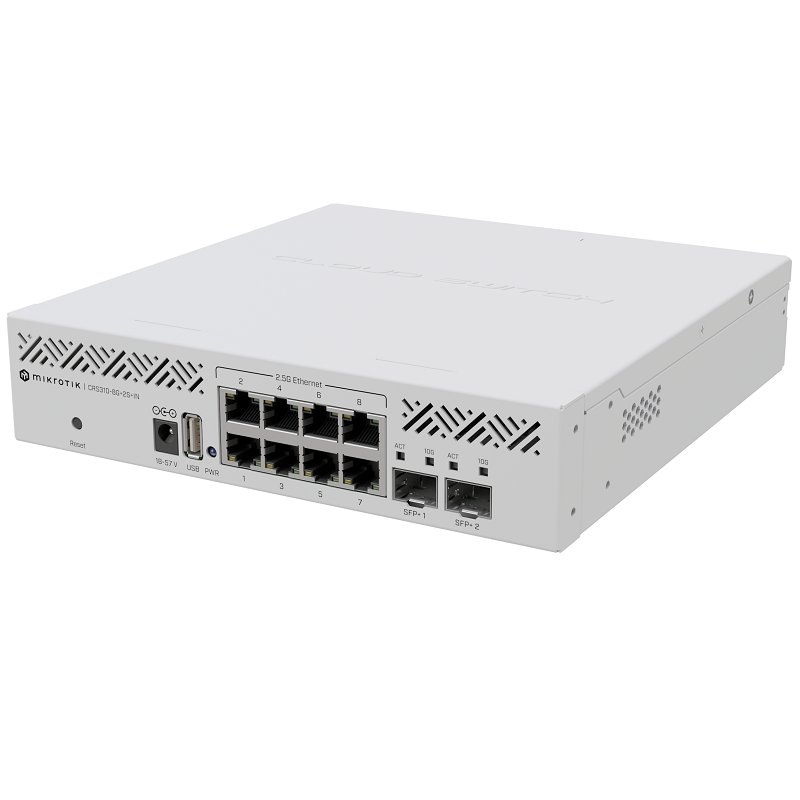

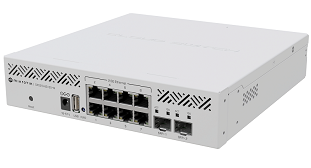

MikroTik CRS310-8G+2S+IN Router with 8 x 2.5Gbps and 2 x SFP+ Ports. The SFP+ cages support multiple data rates: 1G, 2.5G, and 10G. So you can use this switch as a 10x 2.5G switch, if needed.
The Marvell 98DX226S switch-chip and integrated dual-core ARM CPU can handle the full potential of RouterOS v7. Run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more! You can even do some hardware offloaded Layer-3 routing.

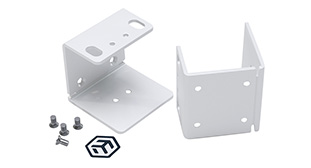

There are multiple mounting options. You can easily install the CRS310-8G+2S+IN in a standard 19” rack using the provided rackmount ears. Another option is to get the RMK-2/10 accessory set, which allows you to mount two CRS310 units within the same 1U 19” rack space or mount it in a 10” rack. The choice is yours!
The Marvell 98DX226S switch-chip and integrated dual-core ARM CPU can handle the full potential of RouterOS v7. Run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more! You can even do some hardware offloaded Layer-3 routing.
There are multiple mounting options. You can easily install the CRS310-8G+2S+IN in a standard 19” rack using the provided rackmount ears. Another option is to get the RMK-2/10 accessory set, which allows you to mount two CRS310 units within the same 1U 19” rack space or mount it in a 10” rack. The choice is yours!
| Details | |
|---|---|
| Product code | CRS310-8G+2S+IN |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| Number of 2.5G Ethernet ports | 8 |
| SFP+ ports | 2 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 34 W |
| Max power consumption without attachments | 21 W |
| Cooling type | 1 fan |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Certification | CE, EAC, ROHS |
| Details | |
|---|---|
| Included | 24V 1.5A Power Adapter, Rackmount bracket and Fastening set |
RJ45 , SFP+ , USB
PoE (non standard) , PoE (802.3af/at)
