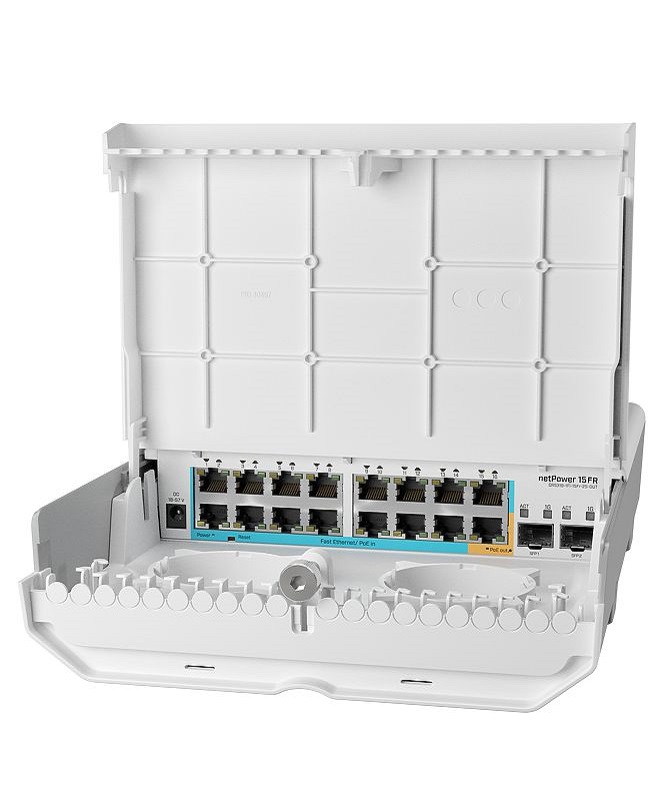

The Mikrotik netPower (CRS318-1Fi-15Fr-2S-OUT) is an outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!
With the Mikrotik netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.
There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
The Mikrotik netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
With the Mikrotik netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.
There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
The Mikrotik netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
Details | |
---|---|
Product code | CRS318-1Fi-15Fr-2S-OUT |
CPU | 98DX224S 800 MHz |
Size of RAM | 256 MB |
Storage type | Flash |
Storage size | 16 MB |
Switch chip model | 98DX224S |
Number of 100 Mbps Ethernet ports | 16 |
SFP ports | 2 |
Operating system | SwOS / RouterOS (Dual boot) |
RouterOS license level | 5 |
PoE-in Ports | 1 - 14 and 16 |
PoE-out | On Ether15 |
Supported input voltage | 18 - 57 V (DC jack); 18 - 57 V (PoE-in) |
Number of DC jacks | 1 |
Dimensions | 304 x 212 x 71 mm |
Operating temperature | -40°C to +70°C tested |
Max power consumption | 29 W |
Details | |
---|---|
Pole Mount | Included (Hose Clamps) |
DC to Terminal block adapter | Inlcuded |
Power Supply | Not Included |
