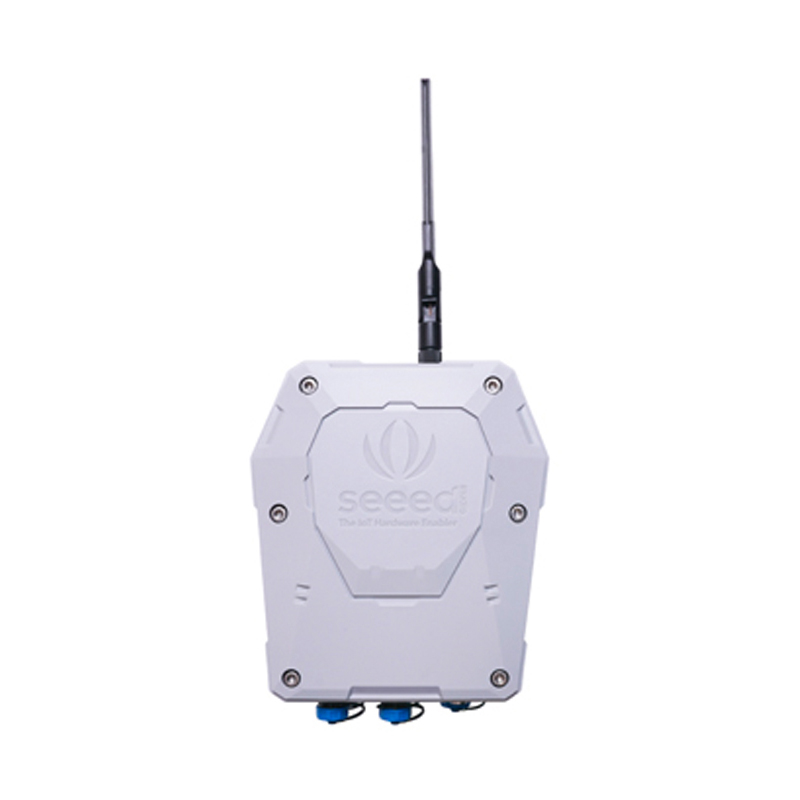

The Seeed industrial-grade 4G cellular IoT Sensor Hub is an easy-to-deploy station that uses the MODBUS-RTU RS485 protocol to communicate with sensors and is able to collect various IoT sensor data simultaneously. IP66-rated, waterproof and dustproof, the Sensor Hub 4G Data Logger is suitable for long-term, reliable outdoor applications such as in smart agriculture, smart weather stations and smart city, etc.
The Seeed Sensor Hub consists of 4 RS485 data channels. With extension hubs / RS485 splitters, it can connect with a maximum of 32 sensors at one time. The data is collected and sent to the cloud (either to the SenseCAP server or the client's private server) via 4G. The Sensor Hub is also equipped with 10MB onboard memory, to store more than 700,000 measurements locally in case of a bad connection. This particular version has a built-in rechargeable battery. The large-capacity lithium battery ensures the devices work for up to 2 weeks after a power outage or during rainy weather.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
The Seeed Sensor Hub consists of 4 RS485 data channels. With extension hubs / RS485 splitters, it can connect with a maximum of 32 sensors at one time. The data is collected and sent to the cloud (either to the SenseCAP server or the client's private server) via 4G. The Sensor Hub is also equipped with 10MB onboard memory, to store more than 700,000 measurements locally in case of a bad connection. This particular version has a built-in rechargeable battery. The large-capacity lithium battery ensures the devices work for up to 2 weeks after a power outage or during rainy weather.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Supports collection of various environmental data simultaneously
- Supports local storage of data
- Supports standard MODBUS-RTU RS485 sensors
- Upload data to any server (SenseCAP Server / User's private server)
- 4G/3G communication, supporting global LTE frequency bands
- Built-in GPS positioning function
- Supports remote upgrade and maintenance
- Easy to install and deploy
| Details | |
|---|---|
| Manufacturers Code | 4G-SH-04 |
| Power Consumption | depends on the combination of sensors |
| Battery Voltage | 7.4V |
| Capacity | 6000mAh (rechargeable) |
| Operating temperature | 0 ~ +45C(charge), -20 ~ +60C (discharge) |
| Solar Maximum power | 12wp |
| Number of Sensor Connections | 4 interfaces on device, can connect up to 32 sensors with extension hubs |
| Communication Protocol for Sensor | Modbus-RTU RS485 |
| Maximum Sensor Load | 12V/1A，5V/2A |
| IP Rating | IP66 |
| UV Resistance Anti-aging (from rain/sun exposure) | UL746C F1 |
| Enclosure Material | PC |
| Operating Temperature | -20 ~ +60C |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Installation Method | Wall or pole mounting |
| Device Weight | 876g |
| 4G Bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28, LTE-TDD: B38/B39/B40/B41 |
| LTE FDD | Max 150Mbps (DL)/Max 50Mbps (UL) |
| LTE TDD | Max 130Mbps (DL)/Max 30Mbps (UL) |
| GPS Channel | 33 (Tracking)/ 99 (Acquisition)/210 (PRN) |
| 4G Antenna | 0-4 dBi gain / Linear polarization / Omnidirectional / SMA-J connector |
| Details | |
|---|---|
| Contains | Sensor Hub, 4G Antenna, USB serial cable, Allen Key, Mounts, Pipe Clamps |
600-999MHz
4G , GPS/GNSS
