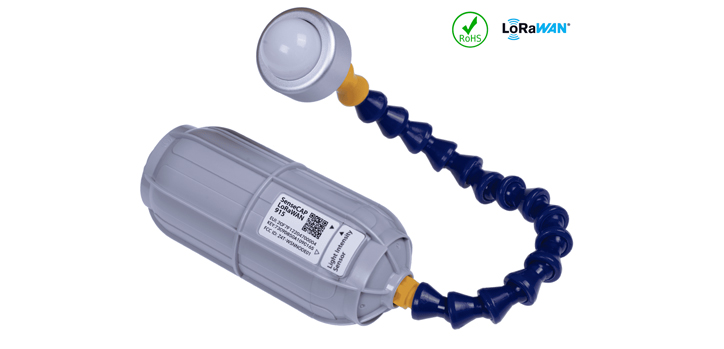

The Seeed SenseCAP Wireless Light Intensity IoT Sensor measures the level of Light Intensity at the range of 0 to 188000 Lux in the atmosphere, applicable for both indoor and outdoor environments. It is perfect for monitoring Light Intensity in Agriculture, Horticulture, weather stations or home greenhouses.
This device incorporates a built-in LoRa transmitter based on SX1276 for long-range transmission, a light Intensity sensor, and a custom battery. It is specifically designed and optimized for use cases powering end devices by batteries for years. To minimize the power consumption, the device wakes up, transmits the collected light data to the gateway, and then goes back to sleep.
Under the best of circumstances, the battery is expected to last for over 3 years, depending on the data transmission intervals. Please kindly note that the default interval is once per hour. This is a configurable feature.
SenseCAP Sensor Node adopts a modular design, integrating the data logger with the sensor probe, which is replaceable by other SenseCAP sensor probes.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
This device incorporates a built-in LoRa transmitter based on SX1276 for long-range transmission, a light Intensity sensor, and a custom battery. It is specifically designed and optimized for use cases powering end devices by batteries for years. To minimize the power consumption, the device wakes up, transmits the collected light data to the gateway, and then goes back to sleep.
Under the best of circumstances, the battery is expected to last for over 3 years, depending on the data transmission intervals. Please kindly note that the default interval is once per hour. This is a configurable feature.
SenseCAP Sensor Node adopts a modular design, integrating the data logger with the sensor probe, which is replaceable by other SenseCAP sensor probes.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Supports LoRaWAN protocol Class A
- Dual-channel detection for superior stability
- Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scenes
- Battery life ≥ 3 years
- Rapid installation and deployment
| Details | |
|---|---|
| Product Model | LoRa-S-AU915/923-Light Intensity-01 114991731 |
| Microcontroller | Ultra-low-power MCU |
| Sensor Accuracy | ±1.5% |
| Resolution | 0.045 Lux |
| Range | 0 to 188000 Lux |
| Support Protocol | Based on LoRaWAN v1.0.2 protocol |
| LoRa Channel Plan | AU915 / AS923 |
| LoRa Power Output | 16 dBm (EIRP) |
| Sensitivity | US915/AU915/AS923: -136.5dBm(SF12, BW125KHz) |
| Communication Distance | 2 to 10 km (depending on different antennas and environments) |
| Battery Life | ≥ 3 year (upload data once per hour) |
| Battery Voltage | 3.6V |
| Battery Capacity | 19Ah (Non-rechargeable) |
| IP Rating | IP66 |
| UV Resistance | anti-aging (from rain/sun exposure) |
| Operating Temperature | -40 ℃ to +85 ℃ |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Device Weight | 288g |
| Details | |
|---|---|
| Package Includes | Sensor, Mounting Bracket, Mounting Screws |
LoRAWAN
Ambient , Radiation
600-999MHz
