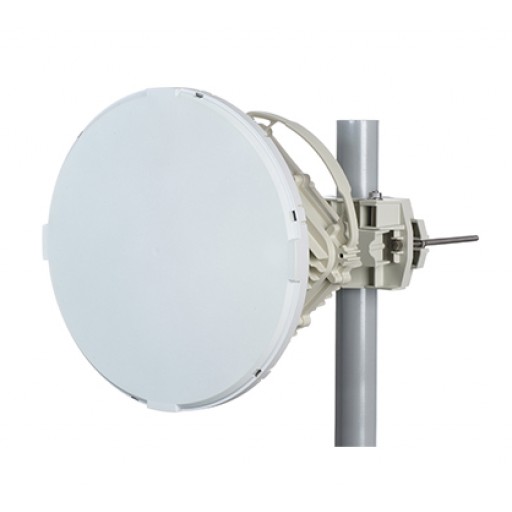

Siklu EtherHaul 1 foot 70/80GHz 43dBi mmWave dish antenna (FCC/ETSI) with ring adaptor.
Siklu EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach. This document starts with the compatibility between ODUs and antennas, continues with the specifications and closes with the illustrations of the antennas.
Note: Mounting kit EH-MK-1ft purchased separately.
Siklu EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach. This document starts with the compatibility between ODUs and antennas, continues with the specifications and closes with the illustrations of the antennas.
Note: Mounting kit EH-MK-1ft purchased separately.
Features
- Supports Siklu ODU’s EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
- Requires Mounting kit: AX-MK-1ft-B (or EH-MK-1ft)
| Details | |
|---|---|
| Product Code | EH-ANT-1ft-B |
| Compatibility | EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX |
| Frequency Range | 71 – 86 GHz |
| Regulatory Compliance | ETSI: EN 302 217-4-2 V1.5.1, Class 2, FCC: 47CFR101 |
| Gain | 43 dBi +/- 2dB |
| 3 dB Beamwidth | 0.9 degree |
| Polarization | Linear Vertical / Horizontal |
| Input power | 10 W (max) |
| Interface | Circular waveguide E-band |
| Weight | 2.2Kg (4.8 lbs.) |
| Radome | Plastic |
| Water Tightness | IP67 |
| Temperature range | -55deg to +71deg C |
| Wind Speed Survival | 220km/h |
| Details | |
|---|---|
| Mounting Kit | Not included: use EH-MK-1ft |
Waveguide
70/80GHz
