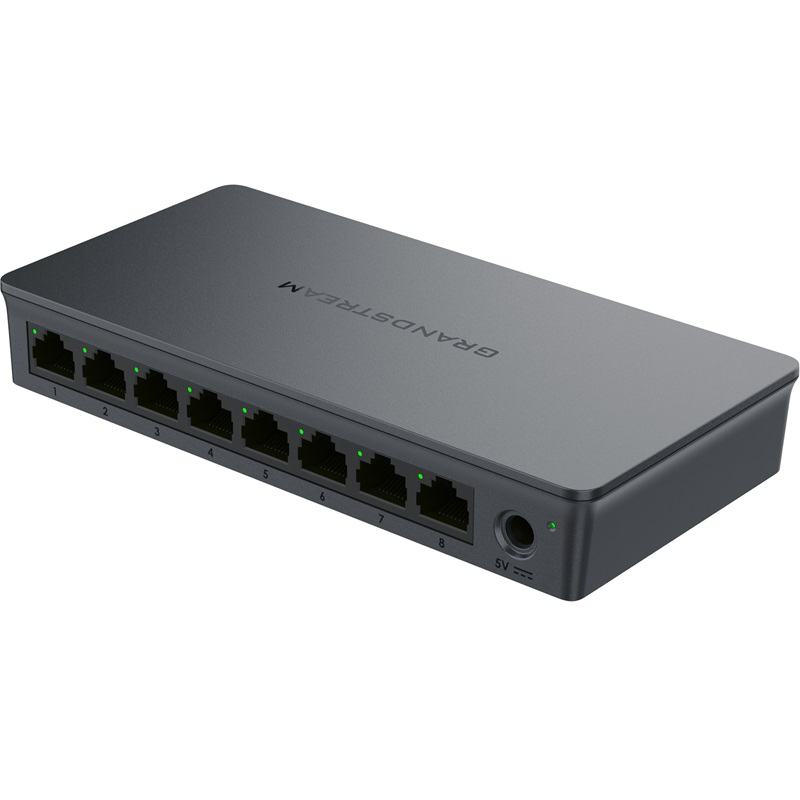

Grandstream GWN7711 Layer 2-Lite Managed Switch 8 port GigE

$49.00 +GST

Out of Stock

SKU: GWN7711

Quantity	Price
1 - 4	$49.00
5 - 9	$47.78
10 - 19	$46.55
20+	$44.10

ETA: 18-07-2025

Data Sheet

Grandstream GWN7711 Layer 2-Lite Managed Switch 8 port Gigabit EThernet

Warranty

Notify Me

Back to: Managed Switches

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

Grandstream GWN7711 Layer 2-Lite Managed Switch, 8 x Gig Ethernet. The GWN7711 series are Layer 2 Lite managed network switches that allow small-to-medium businesses to build scalable, secure, and smart business networks that are easy to use and cloud manageable.

They support VLAN for flexible and sophisticated traffic segmentation, QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The GWN7711 Series are easy to manage through the local web user interface and the cloud using the Grandstream Device Management System (GDMS). By supporting both desktop and wall mount installation, these Layer 2 Lite switches are suitable for hotels, home offices, small-to-medium businesses, and more. Thanks to a comprehensive suite of customizable switching features, available and easy cloud management, the GWN7711 series are the ideal managed network switches for small-to-medium sized deployments.

Features

8 Gigabit Ethernet ports
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults
Whisper Quiet: fan-less
Convenient and intelligent management through the Web UI and the cloud (GDMS)
Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
Built-in QoS allows for prioritization of network traffic

Details
Manufacturer's Code	GWN7711
Network Protocol	IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Gigabit Ethernet Ports	8
PoE Out Ports	4
Power Supply	External 5VDC/0.6A
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	8Gbps
Switching Capability	16Gbps
Jumbo Frame	2K/3K/4K/5K/6K/7K/8//9K/12K/15K
Forwarding Mode	11.9Mpps
Packet Buffer	4Mb
MAC	8K MAC address capacity, Support MAC address search
VLAN	4K VLANs, Port-based VLAN, 802.1Q VLAN
LAG	4
Multicast	IGMP Snooping, Report Message Suppression
QoS	Auto prioritization of the incoming port of the packet, Priority Mapping, Queue scheduling, including SP, WRR, WFQ, Supports port priority, 802.1p priority and DSCP priority, Bandwidth control, Storm control, Rate limit
DHCP	DHCP client
Maintenance	Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port mirroring, cable test and loop prevention, ping and pong watchdog
Security	Storm control, Port VLAN isolation, Filtering MAC adress, Kensington Security Slot (Kensington Lock) support
Mounting	Desktop/Wall-mount
LED Indicators	Per Port: Link/Activity - Green, Per Device: Power - Green
Environmental	Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions	(LxWxH) Unit: 164 x 80 x 30mm Package: 202 x 166 x 54mm
Enclosure	Plastic
Weight	Unit: 0.17kg Entire Package: 0.38kg
Compliance	FCC, CE, RCM, IC
