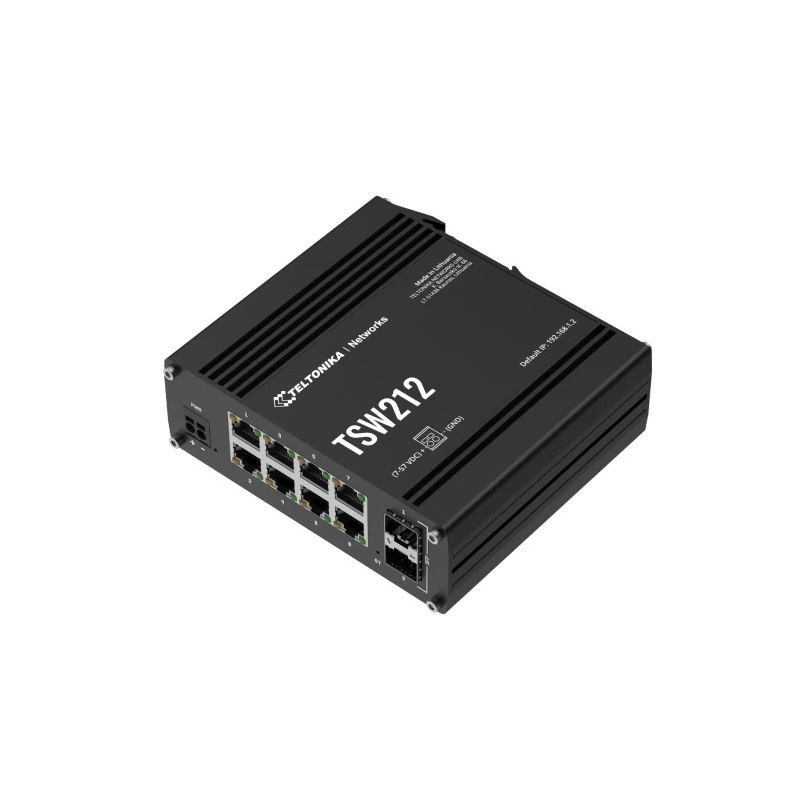

Teltonika TSW212 DIN Rail Mountable Managed Switch 8 x 10/100/1000 Mbps ETH-ports switch with 2 x SFP.
The TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations – all with effortless installation thanks to an integrated DIN rail mount.
The TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations – all with effortless installation thanks to an integrated DIN rail mount.
Features
- L2 with additional L3 features for advanced management capabilities
- Supports Profinet for automated data processing alongside other protocols, like EtherNet IP and MRP
- 8 x Gigabit Ethernet ports and 2 x SFP ports for fibre optic communication
- Teltonika Networks OS for switches, intuitively designed for infinite configurations
- Configure via RMS
| Details | |
|---|---|
| Product code | TSW212 |
| Fibre | 2 x SFP ports |
| Ethernet | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | IEEE 802.1p, IEEE 802.1Q, 802.3az |
| Services | EtherNet/IP, Profinet (class B), SNMP V2, V3, LLDP |
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client |
| Port Settings | Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
| RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash |
| Tools | Cable diagnostic, ping, traceroute, nslookup |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
| Power Connector | 2-pin industrial DC power socket (Power Supply Not Included) |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: 2.5 W; Max: 6 W |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Reset | Software reset button |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 615 g |
| Mounting options | Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, CB, RCM, FCC, IC, EAC, UCRF |
| Details | |
|---|---|
| Included | 1 x TSW212, QSG (Quick Start Guide) |
| Power Supply | Not Included |
Teltonika RMS
100Mbps , 1Gbps
RJ45 , SFP
PoE (802.3af/at)
