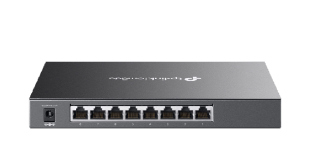

Omada SG2008P 8-Port Gigabit Smart Switch with 4-Port PoE+
Features
- 8× Gigabit ports (4× 802.3at/af-compliant PoE+ ports)
- 62 W total PoE budget with up to 30 W PoE output per port
- Centralised cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
| Details | |
|---|---|
| Manufacturer's Code | SG2008P |
| Interface | 8× 10/100/1000 Mbps RJ45 Ports |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/ 1.31 A) |
| PoE Standard | 802.3af/at compliant |
| PoE Ports | Ports 1–4 Support 802.3at/af PoE+ |
| PoE Power Budget | 62 W |
| Dimensions ( W x D x H ) | 209×126×26 mm |
| Mounting | Desktop / Wall-Mounting |
| Maximum Power Consumption | 77.3 W (110 V/60 Hz) (with 62 W PD connected) |
| Maximum Heat Dissipation | 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected) |
| Bandwidth/Backplane | 16 Gbps |
| Packet Forwarding Rate | 11.90 Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0–40 ℃ |
| Storage Temperature | -40–70 ℃ |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Details | |
|---|---|
| Power Supply | 53.5 VDC/ 1.31 A Power Adapter Included |
| Mounting | Wall Mount Included |
Omada
1Gbps
RJ45
PoE (802.3af/at)
