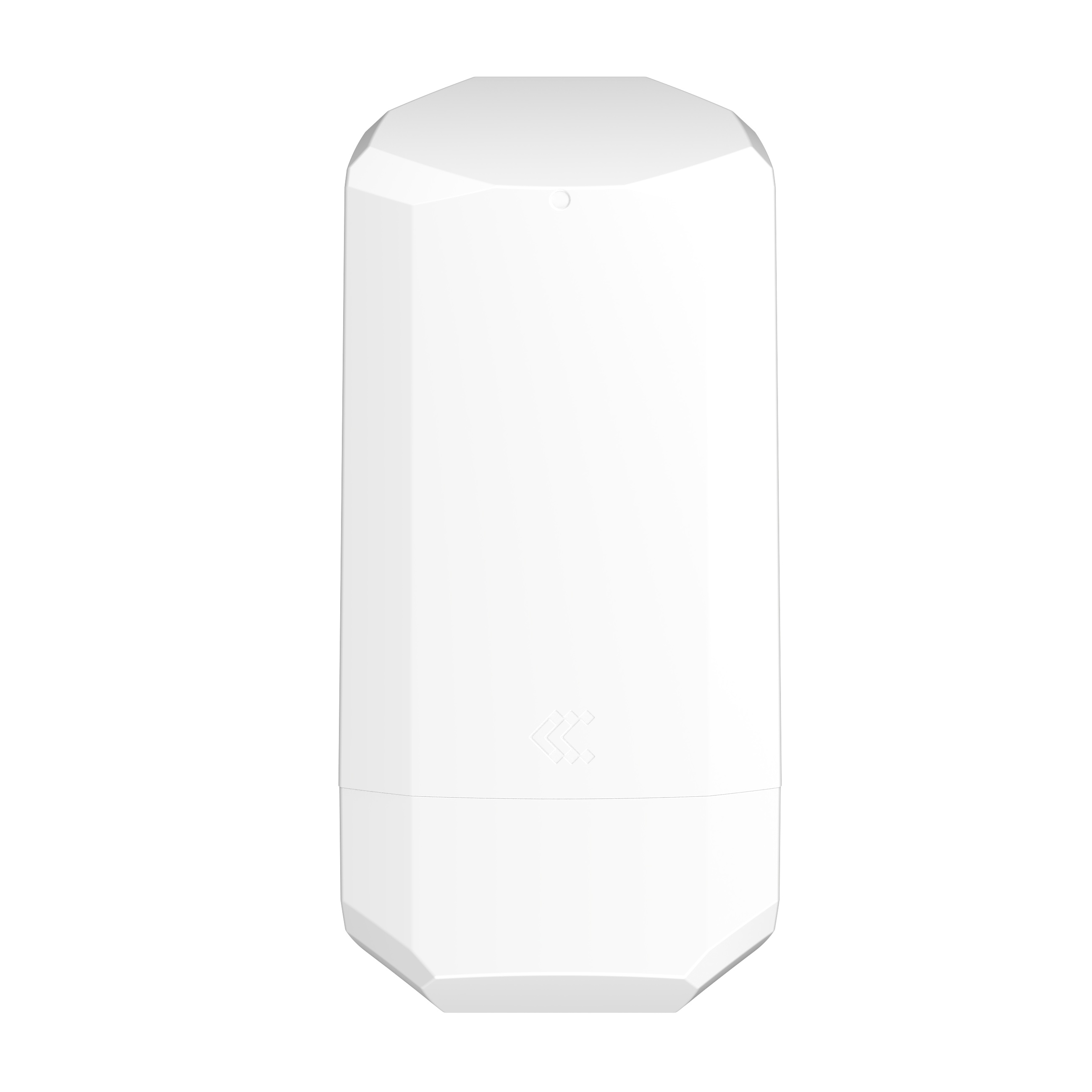

Teltonika OTD500 Outdoor 5G Router.
The OTD500 is a durable 5G outdoor router built for reliable connectivity in demanding environments. Its IP55-rated housing withstands harsh conditions, and the integrated mounting bracket enables quick, hassle-free installation. Dual SIM and eSIM with automatic switching provide exceptional network flexibility and redundancy. Gigabit Ethernet ports with PoE-in and PoE-out simplify setup by combining power and data in a single cable. Fully RMS-compatible, the OTD500 offers effortless remote management, making it perfect for outdoor connectivity solutions.
The OTD500 is a durable 5G outdoor router built for reliable connectivity in demanding environments. Its IP55-rated housing withstands harsh conditions, and the integrated mounting bracket enables quick, hassle-free installation. Dual SIM and eSIM with automatic switching provide exceptional network flexibility and redundancy. Gigabit Ethernet ports with PoE-in and PoE-out simplify setup by combining power and data in a single cable. Fully RMS-compatible, the OTD500 offers effortless remote management, making it perfect for outdoor connectivity solutions.
Features
- IP55 durability for outdoor deployment
- 5G, 4G Cat 19 Connectivity
- Seamless connectivity with eSIM SGP.22
- 1 x PoE-in and 1 x PoE-out port
| Details | |
|---|---|
| Product code | OTD500100000 |
| Mobile module | 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL |
| 3GPP Release | Release 16 |
| Supported Bands | 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32, B71; 4G (LTE-TDD): B38, B40, B41, B42, B43 |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| CPU | MediaTek, Dual-core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB, DDR3 |
| FLASH storage | 16 MB serial NOR flash, 256 MB serial NAND flash |
| APN | Auto APN |
| ETHERNET | 2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Power consumption | Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W |
| PoE In Port | 1 x 802.3af/at |
| PoE Out Port | 1 x 802.3af Alternative B, 15 Watt Max (power supply unit dependent) |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VPN | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Status LEDs | 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Power | RJ45, PoE In, 42.5 – 57.0 VDC |
| Antennas | 4 x internal antennas |
| Antennas specifications | 4 x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional |
| Reset | Reboot/User default reset/Factory reset button |
| Casing material | Plastic (PC+ASA) |
| Dimensions (W x H x D) | 110 x 49.30 x 235 mm |
| Weight | 385 g |
| Mounting options | Mounting bracket (for vertical flat surface or pole mounting) |
| Operating temperature | -40 °C to 55 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP55 |
| Regulatory | CE, UKCA, RCM, CB, EAC, UCRF, WEEE |
| Details | |
|---|---|
| Included | OTD500 Router, Router Holder, QSG (Quick Start Guide) |
Teltonika RMS
100Mbps
5G
RJ45
600-999MHz , 1700-2100MHz , 2.6GHz , 3GHz
PoE (802.3af/at)
