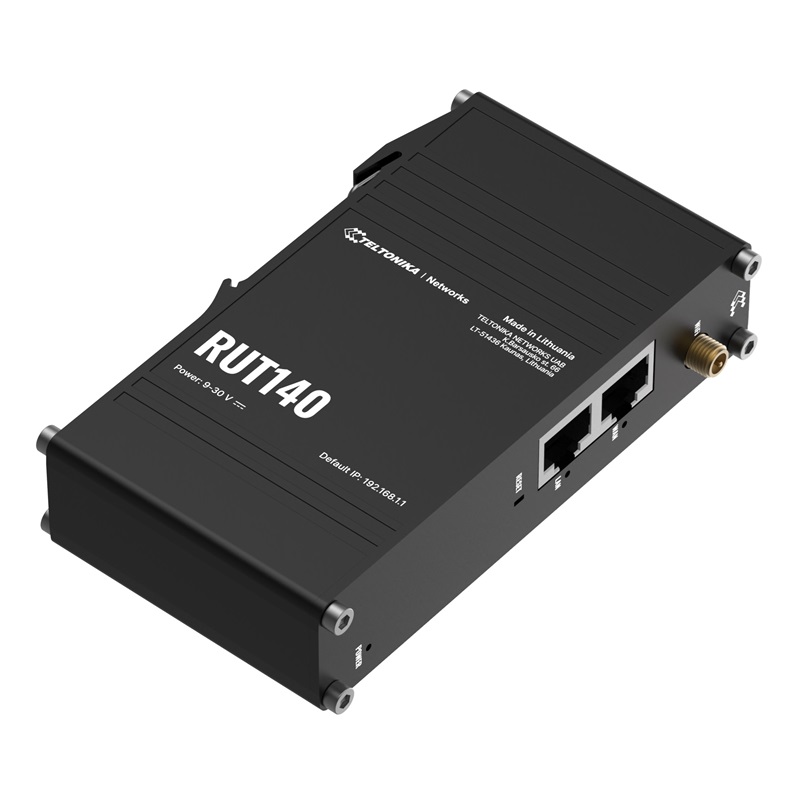

Teltonika RUT140 DIN Rail Mountable Industrial Ethernet Wi-Fi Router. The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
Features
- RMS Remote management, access & VPN services
- Simple installation with an integrated DIN rail bracket
- 1 x 3-pin power connector tailored for industrial use
- Power Supply not included
| Details | |
|---|---|
| Product code | RUT1400PRT01 |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB serial NOR flash |
| Ethernet | 2 x RJ45 ports, 1 x WAN + 1 x LAN, 10/100 Mbps |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi users | Up to 50 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayed, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Power Connector | 3-pos plugable terminal block |
| Input voltage range | 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | Idle: < 1 W / Max: < 2 W |
| Status LEDs | 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Monitoring and Management | WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Power | 1 x 3-pin power connector |
| Antennas | 1 x RP-SMA for Wi-Fi |
| Reset Button | Reboot/User default reset/Factory reset button |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 113.10 x 25 x 68.6 mm |
| Weight | 142.3 g |
| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, UKCA, FCC, IC, CB, WEEE, RoHS, REACH |
| Details | |
|---|---|
| Included | Router RUT140, 3-pin power connector, 1 x 3dBi 2.4GHz Omni, QSG (Quick Start Guide) |
| Power Supply | Not Included |
Teltonika RMS
100Mbps
Wi-Fi 4
RJ45 , RP-SMA
2.4GHz
PoE (non standard)
