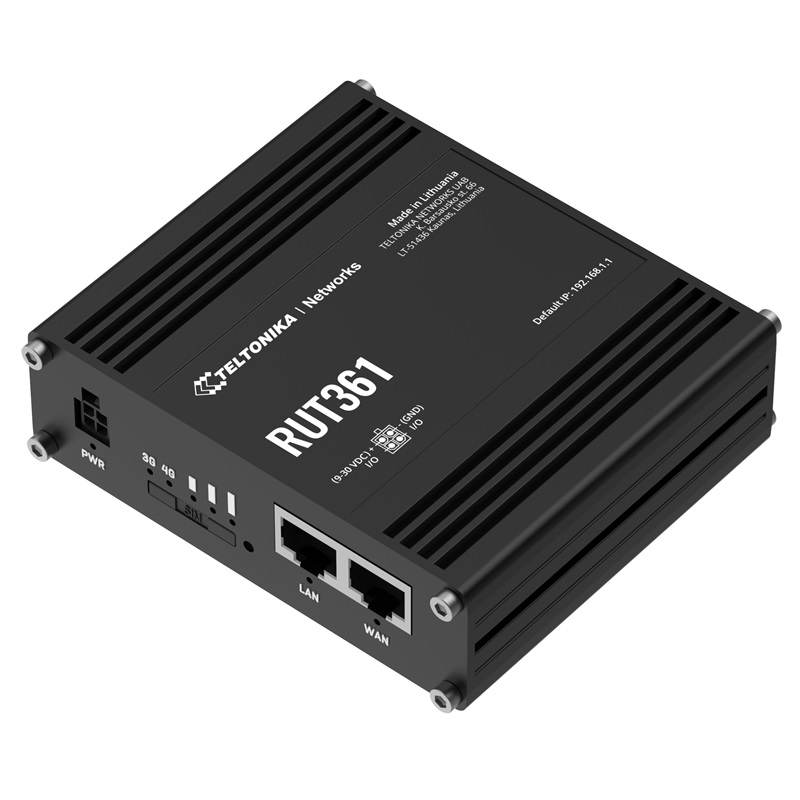

Teltonika RUT361 4G/LTE Cellular CAT 6 WiFi Router with Digital I/O.
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
Features
- 4G LTE CAT 6 Cellular speeds of up to 300Mbps with carrier aggregation
- Wi-Fi 4 wireless access point with hotspot functionality
- WAN failover Automatic switching to available backup connection
- RMS For remote management, access & VPN services
| Details | |
|---|---|
| Product Code | RUT361100300 |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB serial NOR flash |
| Mobile module | 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps |
| 3GPP Release | Release 12 |
| Bands | 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B321, 4G (LTE-TDD): B38, B40, B41, B42, B43 |
| SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA) |
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Inputs | Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VPN | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| MODBUS Supported modes | Server, Client |
| DATA TO SERVER Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data |
| Monitoring & Management | WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS |
| Power Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE (Optional - different hardware required; contact your sales manager) |
| Power consumption | Idle: < 2.4 W, Max: < 4.7 W |
| I/O’s | 2 x Configurable I/O pins on 4-pin power connector |
| Status LEDs | 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi |
| Reset | Reboot/User default reset/Factory reset button |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 243 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, UKCA,FCC, IC, RCM, CB, WEEE, RoHS, REACH |
| Details | |
|---|---|
| Included | Router RUT361, 18 W PSU, 2x Mobile antennas (swivel, SMA male), 2x Wi-Fi antennas (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
Teltonika RMS
100Mbps
4G , Wi-Fi 4
RJ45 , RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz
PoE (non standard)
