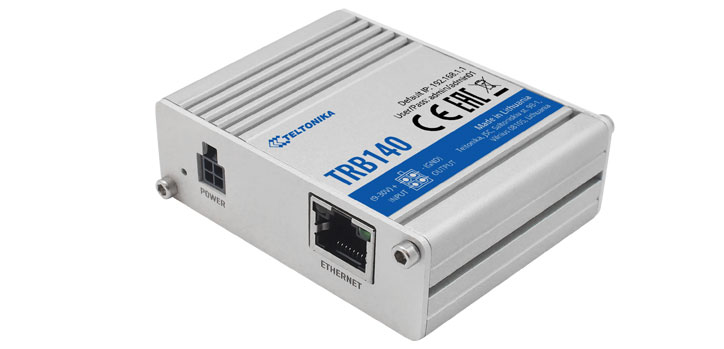

The Teltonika TRB140 is an industrial 4G/LTE Cat 4 Gateway Board and is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. The TRB140’s compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.
Small and quick to deploy industrial Ethernet to 4G LTE IoT gateway. Advanced VPN functionality, security and remote management capabilities makes the Teltonkia TRB140 the best option for single device connectivity.
Small and quick to deploy industrial Ethernet to 4G LTE IoT gateway. Advanced VPN functionality, security and remote management capabilities makes the Teltonkia TRB140 the best option for single device connectivity.
Features
- Gigabit Ethernet interface
- Wide range of power supply voltages (9 – 30V)
- LTE Cat 4 up to 150 Mbps support
- Teltonika Remote Management System compatible
- Compact size, easy integration
- OpenLinux based OS allows high software customisation
- Remote Access your network from anywhere!
- Perfect modem for 2G/3G shutdown upgrade projects
| Details | |
|---|---|
| Product code | TRB140101000 |
| Mobile | LTE(Cat4)/3G/2G |
| SIM slot | Mini SIM (2FF) |
| Antenna connector | 1 x SMA for LTE |
| Ethernet | 1 x 10/100/1000 Mbps |
| Input/Output | 2 x Digital Input/Output (configurable) |
| CPU | ARM Cortex-A7 1.2 GHz CPU |
| RAM | 128 MB (50 MB available for userspace) |
| Flash | 512 MB (70 MB available for userspace) |
| Input voltage range | 9 - 30 VDC |
| Power connector | 4 pin industrial DC power socket |
| Power consumption | Less than 5 Watts |
| Configuration interface | Virtual NIC via Micro-USB connector |
| LED Indicators | Power, signal, network and data status LEDs |
| Operating System | Linux OS with Yocto SDK (offering high software customisation) |
| Network | NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( >25 service providers supported) |
| Remote management | RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration) |
| Status watchdogs | Ping reboot, periodic reboot |
| Additional features | Internet connectivity over USB virtual network interface |
| Operating temperature | -40° C to 75° C |
| Storage temperature | -45° C to 80° C |
| Operating humidity | 10% to 90% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Dimensions | 60 mm x 70 mm x 18 mm |
| Weight | 35.8 g |
| Details | |
|---|---|
| Power Supply | 9V 1A AC/DC Plug Pack with 4pin, 3mm pitch connector |
| Antenna | 1 x LTE antenna (magnetic mount, SMA male, 3 m cable) |
| Cables | Micro-USB cable (0.8 m), LAN cable |
| Manual | QSG (Quick Start Guide) |
Teltonika RMS
1Gbps
4G
Contact
RJ45 , SMA
600-999MHz , 1700-2100MHz
PoE (non standard)
