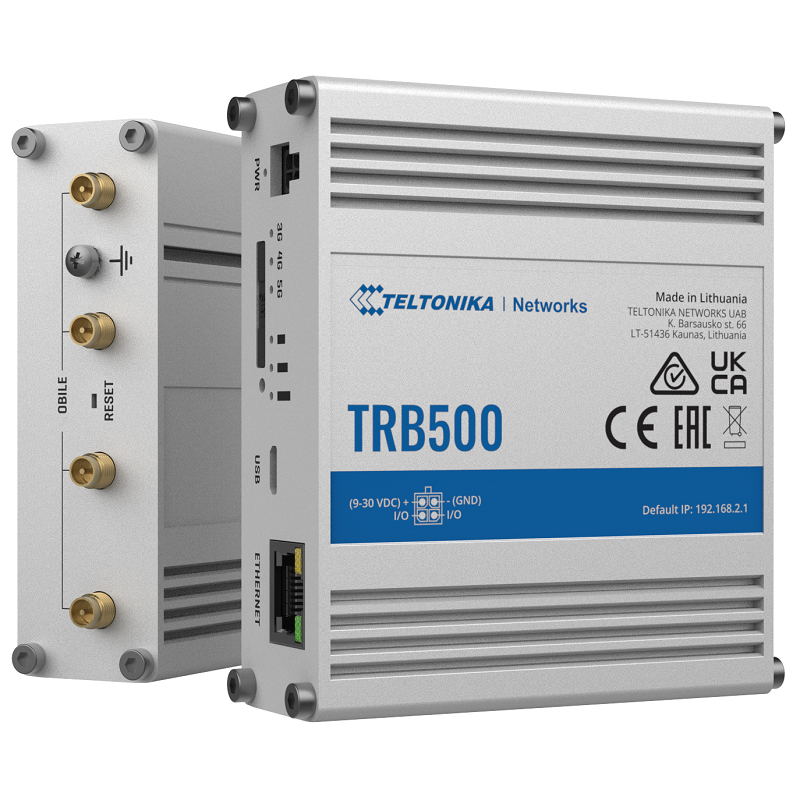

Teltonika TRB500 Industrial Ethernet to 5G IoT Cellular gateway with I/O. The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios.
This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO.
TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices.
This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO.
TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices.
Features
- 5G Ultra-high cellular speeds of up to 1 Gbps
- SA & NSA Supports both architectures to leverage the 5G infrastructure
- Single-digit latency for mission-critical applications
- Reliable Gigabit Ethernet communication for high data throughput
- One of the smallest 5G gateways available in the market
- Backward compatible with 4G (LTE CAT 20) and 3G network technologies
| Details | |
|---|---|
| Product code | TRB500002000 |
| Mobile module | 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
| Max RF power | 24 dBm@WCDMA, 23 dBm@LTE, 23dBm@5G |
| Mobile antenna | 617~960 / 1710~2690 / 3300-6000 MHz, 50 Ohm, VSWR<3, gain 4 dBi, omnidirectional, SMA male connector |
| SMS/Call | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list |
| Band management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Gateway assigns its mobile WAN IP address to another device on LAN |
| LAN | 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| I/Os | 2 x Configurable I/O pins on 4-pin power connector |
| USB | 1 x Virtual network interface via micro USB |
| Status LEDs | 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x 4-pin DC power connector |
| Anntena | 4 x SMA for Mobile |
| Reset | Reboot/User default reset/Factory reset button |
| Grounding | Grounding screw terminal |
| CPU | Single core ARM Cortex A7, 1.5 GHz |
| RAM | 256 MB (128 MB available for userspace) |
| FLASH storage | 512 MB (200 MB available for userspace) |
| Configurable I/O | 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 40 V detected as logic high. Open collector output, max output 30 V, 300 mA |
| Output control | HTTP POST/GET, Schedule |
| Events | SMS, EMAIL |
| I/O juggler | Allows setting certain I/O conditions to initiate event |
| Cloud of Things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
| ThingWorx | Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
| Azure IoT Hub | Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
| Power Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max |
| Power consumption | Idle: <3 W, Max <6 W |
| Casing material | Aluminum housing |
| Dimensions (W x H x D) | 100 x 30 x 93,4 mm |
| Weight | 241g |
| Mounting options | DIN rail, Flat surface |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| Details | |
|---|---|
| Included | 1 x 9 VDC, 1 A, 4-pin plug power supply, 4 x 4dBi SMA Omni Antenna |
Teltonika RMS
1Gbps
5G
Contact , Data Logger
RJ45 , SMA , USB
600-999MHz , 1700-2100MHz , 3GHz
PoE (non standard)
