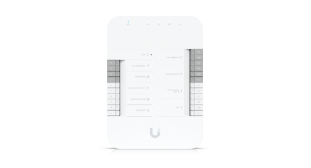

An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
Features
- (2) Gate operator terminals (dry)
- (1) Lock terminal (12V) for side door
- (1) AUX terminal for an external siren
- (5) Additional inputs (sensors and emergency)
- License plate unlock (when paired with AI Camera)
- Connect and power using PoE++
- Connect up to four UniFi Access readers or UniFi Protect cameras
| Details | |
|---|---|
| Manufacturer's Code | UA-Hub-Gate |
| Dimensions | 175 x 126 x 26 mm |
| Supported Doors | 1 gate, 1 side door |
| Input Terminals | (1) Gate exit request, (1) Gate position, (1) Side door exit request, (1) Side door position, (1) Emergency |
| Power Method | PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I |
| Weight | 460 gEnclosure Material |
| Mounting | DIN-rail (Included) |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry Output Relay | (2) Operator: rated 30V DC, up to 1A, (1) Aux: rated 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| Indoor and Outdoor Use | Indoor only: device itself, Outdoor: with waterproof junction box |
| Ambient Operating Temperature | -30 to 60° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A, (4) PoE outputs, 50V DC, Max. 28W |
| Maximum Power Consumption | 22W (Without PoE output), 50W (With PoE output) |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Details | |
|---|---|
| Power Supply | Not Included |
| Mounting | DIN Rail and Screws included |
100Mbps
RJ45
PoE (non standard) , POE (802.3bt)
