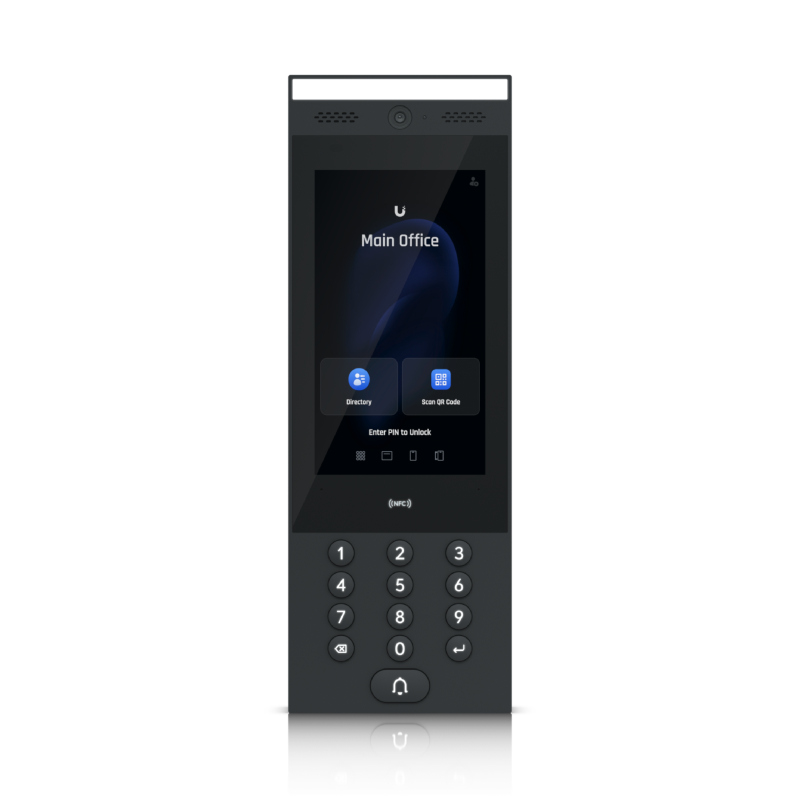

Ubiquiti UniFi Access Intercom with Camera and Keypad. UniFi Access Intercom is an indoor or outdoor intercom terminal for managing residential and commercial building entry requests.
Features
- Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
- Directory and doorbell to request entry
- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)
| Details | |
|---|---|
| Manufacturer's Code | UA-Intercom |
| Dimensions | 324.8 x 113.7 x 28.3 mm |
| Weight | Device: 965 g, Bracket: 445 g |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included), Surface angle mount, flush mount (Optional), Sunshield kit (Optional) |
| Weatherproofing | IP65 |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | Bluetooth 4.2, NFC |
| Power method | PoE |
| Supported Voltage Range | 48V DC |
| Max. power consumption | 13W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor, ALS sensor |
| Camera | 3264 x 2448, 8 MP, H: 79.4°, V: 97.5°, D: 118.2° |
| Display | 177 mm (7") diagonal |
| Resolution | 1024 x 600 (16:9) |
| Display Luminance | Max. 1000 nits (typical) |
| Touch Screen Technology | Capacitive multi-touch |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 2W |
| LEDs | (1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system functions normally), (1) LED floodlight, (13) Keypad LED backlight |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | up to 30 mm |
| NFC Standards | ISO 14443A, 14443B, 15693 |
| NFC Technology | NFC Tag 1/2/3/4/5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire |
| Device Ambient Operating Temperature | -30 to 60° C |
| Display Ambient Operating Temperature | -25 to 60° C (display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional.) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Management application | UniFi Access: Version 1.22.17 and later |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | Not Included |
| Mount Kit | Included |
100Mbps
Bluetooth , NFC
RJ45
PoE (802.3af/at)
