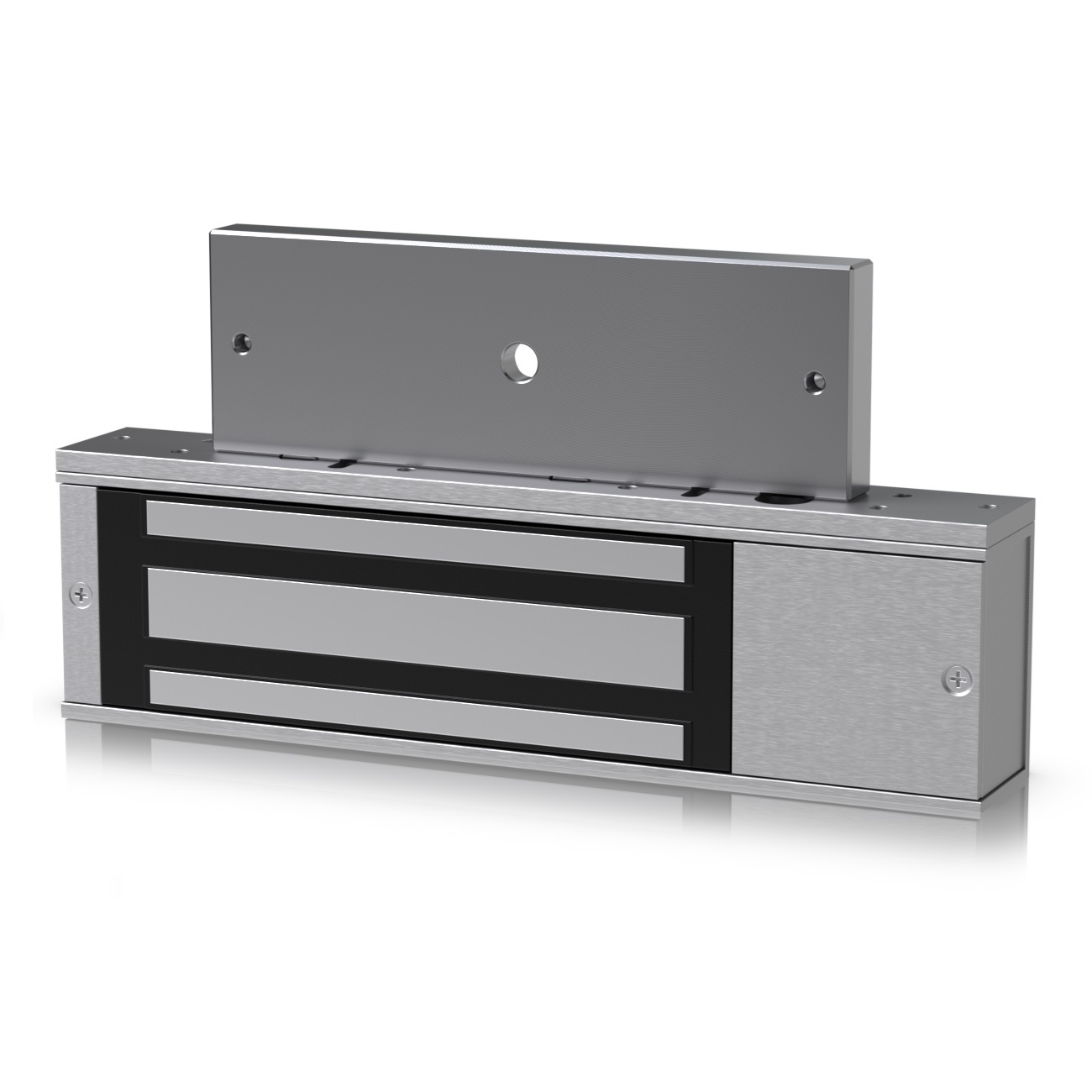

Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub).
Features
- Holds up to 540 kg (1,200 lb)
- Can be installed on a wide variety of door types* excluding full glass
| Details | |
|---|---|
| Product code | UA-Lock-Magnetic-540kg |
| Dimensions | Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6"), Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2"), Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6") |
| Weight | Lock body: 2.9 kg (6.4 lb), Install plate: 145 g (0.3 lb), Armature: 1.4 kg (3.1 lb) |
| Enclosure material | Device/brackets: aluminum, Armature: steel |
| Voltage | 12V DC |
| Current power | 500mA ±10% |
| Wiring connection | Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub), Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub), DPS/+ (DPS+ on UA-Hub), DPS/-(DPS-onUA-Hub) |
| Lock type | Fail safe lock, Single door |
| Holding force | 540 kg (1,200 lb) |
| LED | Green: unlocked, Red: locked |
| Suitability | Wood/metal door |
| Mounting accessories | L bracket: door thickness up to 42 mm (up to 1.7"), outward opening door, Z bracket: used with L bracket for inward opening door |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Details | |
|---|---|
| Included | UA-Lock-Magnetic, L bracket, Z bracket, |
